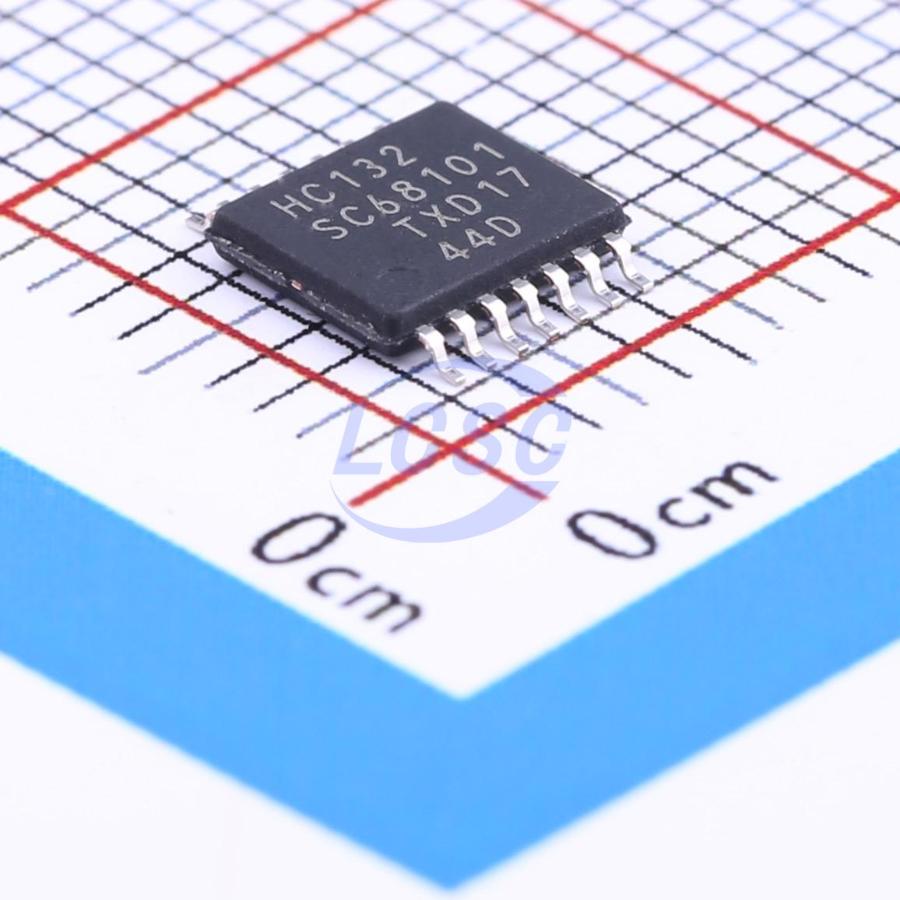

74HC132PW,118
Schmitt trigger 2V~6V 21ns@6V,50pF 2uA TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
Quad 2-input NAND Schmitt trigger
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC132PW,118
- Store part #
- C8135
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,475 in stock
#C8135
Stock & price checked 22 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.26 | ₹141.30 |
| 50+ | ₹22.24 | ₹1,112.00 |
| 150+ | ₹19.65 | ₹2,947.50 |
| 500+ | ₹16.42 | ₹8,210.00 |
| 2,500+ | ₹14.99 | ₹37,475.00 |
| 5,000+ | ₹14.13 | ₹70,650.00 |
5 × ₹28.26
₹141.30
excl. GST
₹166.73 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC132PW,118
₹141.30 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;400mV
- Propagation Delay
- 21ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 300mV~1.2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V~2V;3.7V~4.5V;5.2V~6V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.161 g
Overview
The 74HC132; 74HCT132 is a quad 2-input NAND gate with Schmitt-trigger inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Schmitt trigger inputs transform slowly changing input signals into sharply defined jitter-free output signals.
Applications
- Wave and pulse shapers
- Astable multivibrators
- Monostable multivibrators
Key features
- Wide supply voltage range from 2.0 to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Unlimited input rise and fall times
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards: JESD8C (2.7 V to 3.6 V) JESD7A (2.0 V to 6.0 V)
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40°C to +85°C and from -40°C to +125°C
