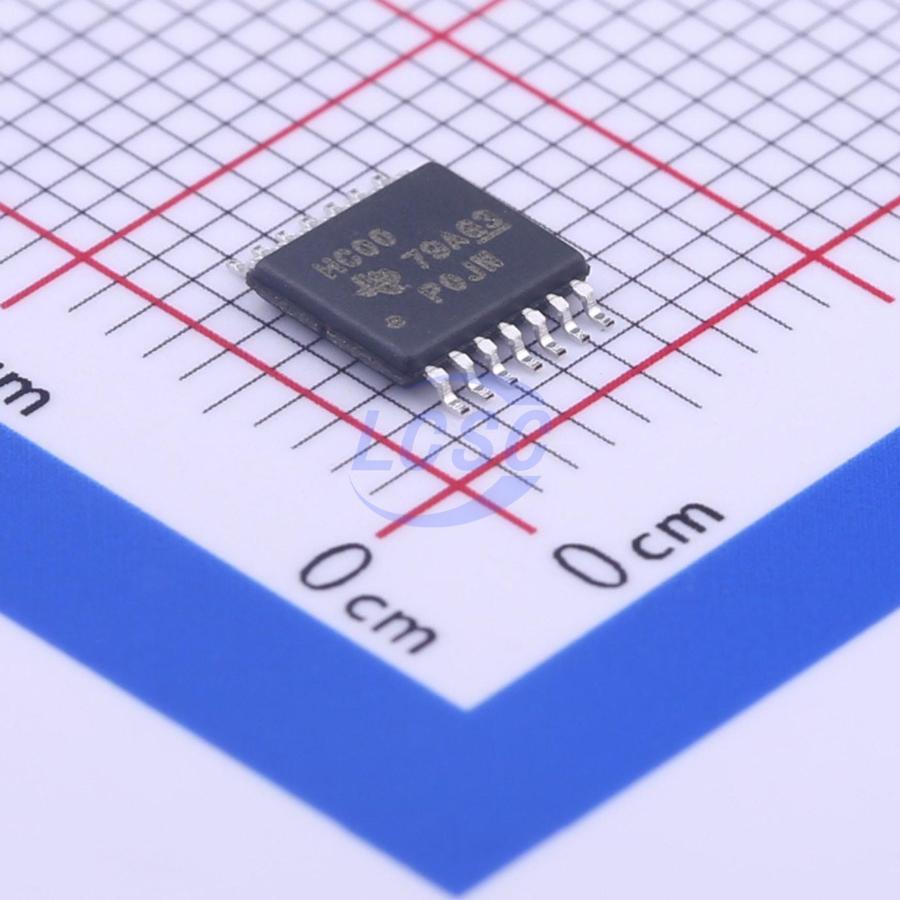

SN74HC00PWR
2uA 2V~6V 15ns@6V,50pF TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT POSITIVE-NAND GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74HC00PWR
- Store part #
- C6807
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,085 in stock
#C6807
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹65.95 | ₹329.75 |
| 50+ | ₹55.42 | ₹2,771.00 |
| 150+ | ₹50.91 | ₹7,636.50 |
| 500+ | ₹45.27 | ₹22,635.00 |
| 2,000+ | ₹39.76 | ₹79,520.00 |
| 4,000+ | ₹38.26 | ₹1,53,040.00 |
5 × ₹65.95
₹329.75
excl. GST
₹389.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74HC00PWR
₹329.75 for 5 + GST
Specifications
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 74HC Series
- Output Logic Level - High
- 1.9V;3.98V;5.48V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 100mV;400mV
- Propagation Delay
- 15ns@6V,50pF
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.204 g
Overview
The 'HC00 devices contain four independent 2-input NAND gates. They perform the Boolean function Y = A(overline) • B(overline) or Y = A(overline) + B(overline) in positive logic.
Key features
- Wide Operating Voltage Range of 2 V to 6 V
- Outputs Can Drive Up To 10 LSTTL Loads
- Low Power Consumption, 20 μA Max ICC
- Typical tpd = 8 ns
- ±4 mA Output Drive at 5 V
- Low Input Current of 1 μA Max
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC00QPWRQ1#C2682061TI · TSSOP-14 | TI | TSSOP-14 | 98 | ₹94.83 · 98 in stock | View |
| MM74HC00MTCX#C904240onsemi · TSSOP-14 | onsemi | TSSOP-14 | 75 | ₹42.02 · 75 in stock | View | |
 | AIP74HC00TA14.TR#C4945086Wuxi I-core Elec · TSSOP-14 | Wuxi I-core Elec | TSSOP-14 | 20 | ₹23.46 · 20 in stock | View |
 | SN74HC132PWR#C132995TI · TSSOP-14 | TI | TSSOP-14 | 14 | ₹69.52 · 14 in stock | View |
 | 74HC132PW,118#C8135Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | 1,610 | ₹34.79 · 1,610 in stock | View |
