TP74LVC1G02S5

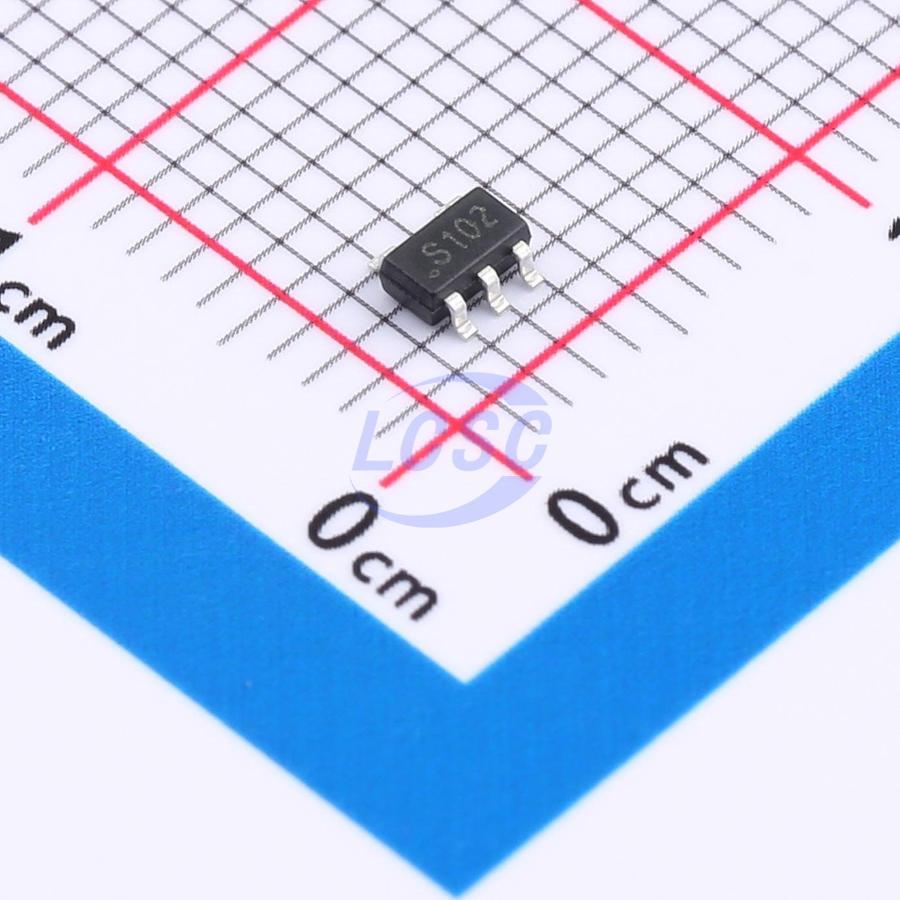

10uA 1.65V~5.5V SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
SINGLE 2-INPUT NOR GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74LVC1G02S5
- Store part #
- C42460125
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,320 in stock
#C42460125
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.44 | ₹74.40 |
| 100+ | ₹5.91 | ₹591.00 |
| 300+ | ₹5.16 | ₹1,548.00 |
| 1,000+ | ₹4.59 | ₹4,590.00 |
| 5,000+ | ₹4.13 | ₹20,650.00 |
| 10,000+ | ₹3.90 | ₹39,000.00 |
10 × ₹7.44
₹74.40
excl. GST
₹87.79 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74LVC1G02S5
₹74.40 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV;800mV
- Logic Family
- 74LVC
- Input Logic Level - High
- 1.7V;2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.65V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Propagation Delay
- 8ns@1.8V,30pF;5.5ns@2.5V,30pF;4.5ns@3.3V,50pF;3.4ns@5V,50pF
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The TP74LVC1G02 is a 2-input NOR gate Device which provides the Function Y = A + B in positive logic. This device has power-down protective circuit preventing device from destruction when it is powered down.
Applications
- AV Receiver
- Audio Dock:Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power:Telecom/Server AC/DC Supply:Single
- Controller:Analog and Digital
- Solid State Drive(SSD):Client and Enterprise
- Wireless Headset,Keyboard,and Mouse
Key features
- Operate from 1.65V to 5.5V
- ±24mA Output Drive (VCC = 3.0V)
- High Noise Immunity
- Power Down Protection
- ESD Protection Exceeds JESD 22
- -2000-V Human-Body Model (A114-A)
- -200-V Machine Model (A115-A)
- -1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G02GV#C41348122TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,670 | ₹5.40 · 2,670 in stock | View |
 | TC7SZ02F-TP#C54195029TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,000 | ₹5.81 · 3,000 in stock | View |
 | SN74LVC1G02DBVR-TP#C41348120TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,070 | ₹6.76 · 4,070 in stock | View |
 | NC7SZ02M5X#C41348081TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,280 | ₹6.35 · 1,280 in stock | View |
 | 74LVC1G02W5-TP#C52098151TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,740 | ₹5.85 · 2,740 in stock | View |
