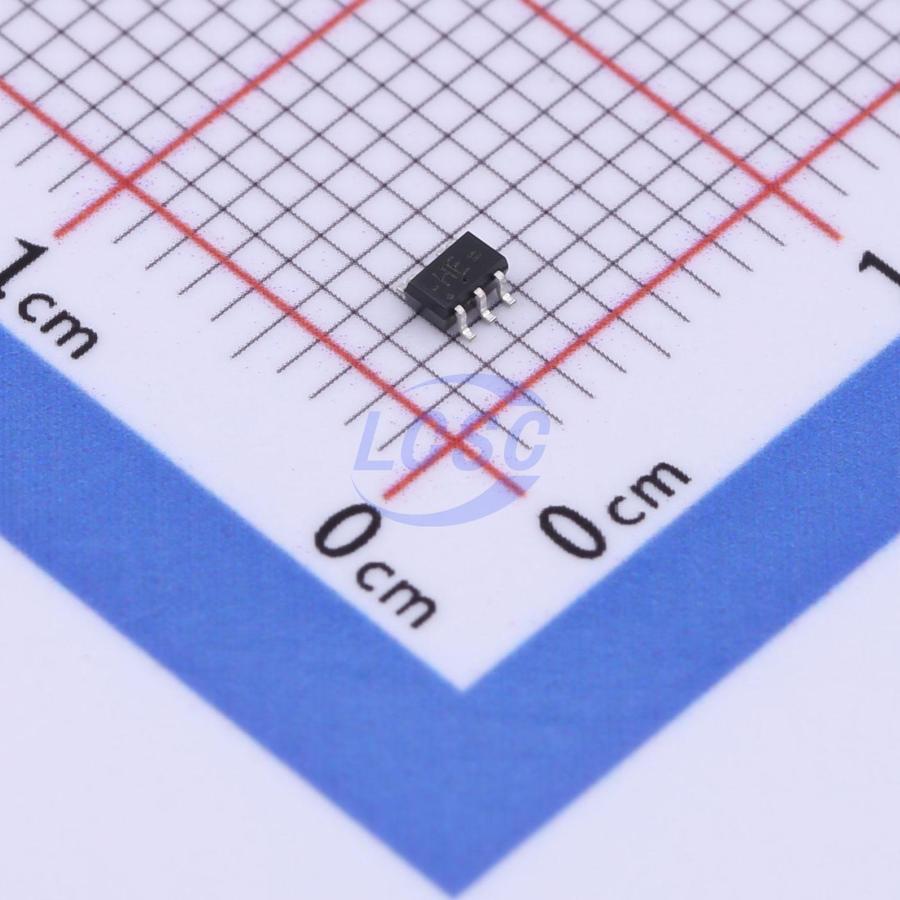

Nexperia

74HC1G08GW-Q100,12

StandardCMOS 2V~6V 23ns@6V,50pF 20uA TSSOP-5 Gates and Inverters RoHS

TSSOP-5ROHS3 CompliantActive

Manufacturer: Nexperia
Manufacturer part #: 74HC1G08GW-Q100,12
Store part #: C455048
Package / case: TSSOP-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,430 in stock

#C455048

Stock & price checked 36 h ago

Quantity	Unit price	Pack price
5+	₹19.74	₹98.70
50+	₹15.61	₹780.50
150+	₹13.55	₹2,032.50
500+	₹12.00	₹6,000.00
3,000+	₹10.77	₹32,310.00
6,000+	₹10.15	₹60,900.00

Quantity (min 5, multiples of 5)

5 × ₹19.74

₹98.70

excl. GST

₹116.47 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74HC1G08GW-Q100,12

₹98.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: StandardCMOS
Logic Family: 74HC Series
Voltage - Supply: 2V~6V
Output Logic Level - Low: 100mV;330mV
Propagation Delay: 23ns@6V,50pF
Features: Overvoltage-tolerant input
Input Logic Level - High: 1.5V~4.2V
Input Logic Level - Low: 500mV~1.8V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.9V;4.4V;5.9V;4.13V;5.63V
Quiescent Current(Iq): 20uA
Current - Output High(IOH): 2.6mA
Number of Channels: 1;2
Current - Output Low(IOL): 2.6mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.023 g

Overview

The 74HC1G08-Q100; 74HCT1G08-Q100 is a single 2-input AND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.

Key features

Automotive product qualification in accordance with AEC-Q100 (Grade 1)
Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
Wide supply voltage range from 2.0 V to 6.0 V
CMOS low power dissipation
High noise immunity
Symmetrical output impedance
Balanced propagation delays
Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
Input levels: For 74HC1G08-Q100: CMOS level For 74HCT1G08-Q100: TTL level
Complies with JEDEC standards: JESD8C (2.7 V to 3.6 V) JESD7A (2.0V to 6.0 V)
ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
