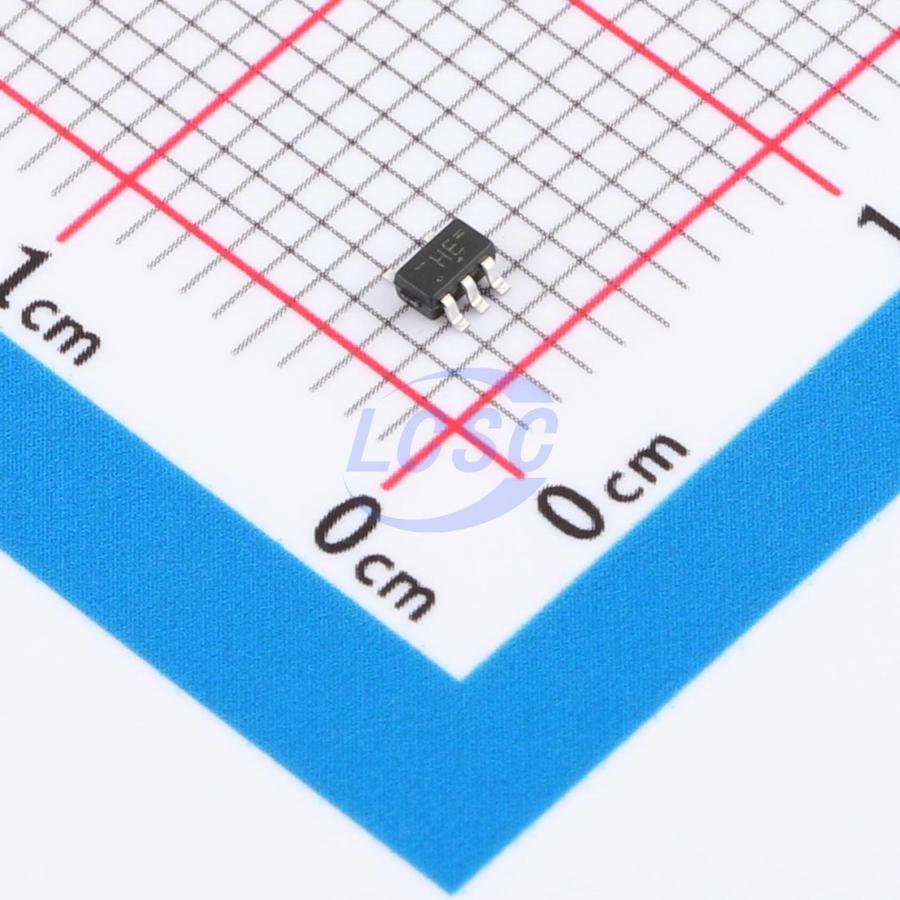

74HC1G08GW
1uA 2V~6V 17ns@6.0V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74HC1G08GW
- Store part #
- C52205097
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,210 in stock
#C52205097
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.50 | ₹65.00 |
| 100+ | ₹5.12 | ₹512.00 |
| 300+ | ₹4.43 | ₹1,329.00 |
| 3,000+ | ₹3.92 | ₹11,760.00 |
| 6,000+ | ₹3.51 | ₹21,060.00 |
| 9,000+ | ₹3.29 | ₹29,610.00 |
10 × ₹6.50
₹65.00
excl. GST
₹76.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC1G08GW
₹65.00 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Logic Family
- 74HC
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V;4.13V~4.18V;5.63V~5.68V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Propagation Delay
- 17ns@6.0V,50pF
- Output Logic Level - Low
- 100mV;260mV;330mV
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The 74HC1G08 is a high-speed CMOS 2-input AND gate fabricated using silicon gate CMOS technology. Combining CMOS low-power characteristics with high-speed performance comparable to the LS-TTL family, it features an internal three-stage buffered circuit structure that provides wide noise margins and stable output.
Key features
- Basic gate function consistent with Renesas unified logic series product line.
- Embossed carrier tape packaging for high-speed automated placement.
- Electrical characteristics identical to 74HC1G08
- Supply voltage range: 2V to 6V
- Operating temperature range: -40°C to +85°C
- IOH = IOL = 2mA (min)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74HC1G08DFT1G-TP#C52205171TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 1,440 | ₹5.72 · 1,440 in stock | View |
 | M74VHC1GT08DFT2G-TP#C52098126TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,360 | ₹13.42 · 3,360 in stock | View |
 | SN74AHC1G08DCKR#C19829636TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 140 | ₹7.53 · 140 in stock | View |
 | 74AHC1G08GW#C19829642TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 1,810 | ₹5.41 · 1,810 in stock | View |
 | 74AHC1G08SE-TP#C52098180TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹6.42 · 3,000 in stock | View |
