NexperiaDatasheet (PDF)
74HC1GU04GV,125
StandardCMOS 2V~6V 18ns@6V,50pF 20uA 1 SC-74A Gates and Inverters RoHS
SC-74AROHS3 CompliantActive

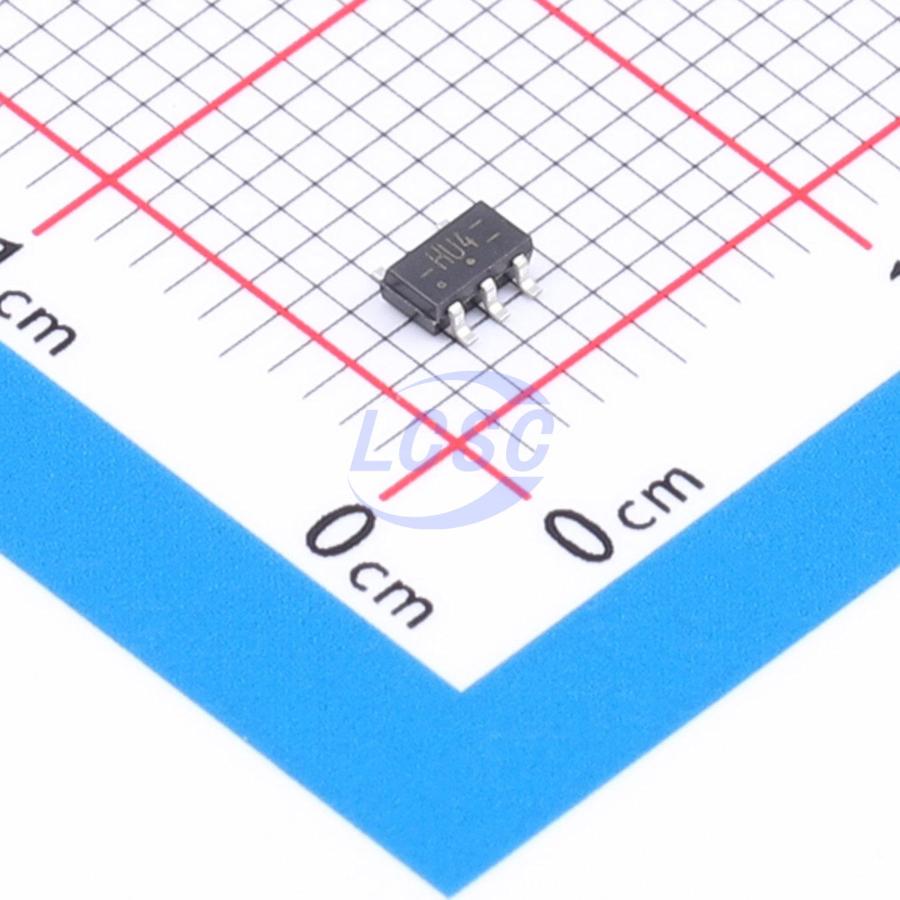

Single unbuffered inverter
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC1GU04GV,125
- Store part #
- C546710
- Package / case
- SC-74A
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,895 in stock
#C546710
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.66 | ₹48.30 |
| 50+ | ₹8.45 | ₹422.50 |
| 150+ | ₹7.86 | ₹1,179.00 |
| 500+ | ₹7.41 | ₹3,705.00 |
| 3,000+ | ₹7.05 | ₹21,150.00 |
| 6,000+ | ₹6.88 | ₹41,280.00 |
5 × ₹9.66
₹48.30
excl. GST
₹56.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC1GU04GV,125
₹48.30 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74HC
- Input Type
- StandardCMOS
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 200mV;500mV
- Propagation Delay
- 18ns@6V,50pF
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 300mV~1.2V
- Input Logic Level - High
- 1.7V~4.8V
- Output Logic Level - High
- 1.8V;4V;5.5V
- Quiescent Current(Iq)
- 20uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 2.6mA
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
The 74HC1GU04 is a single unbuffered inverter. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- Linear amplifier
- In crystal oscillator design
Key features
- Wide supply voltage range from 2.0 to 6.0 V
- High noise immunity
- Symmetrical output impedance
- CMOS low power dissipation
- Balanced propagation delays
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards JESD8C (2.7 V to 3.6 V) JESD7A (2.0 V to 6.0 V)
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 ℃ to 85 ℃ and -40 ℃ to 125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC1G04GV,125#C12496Nexperia · SOT-753 | Nexperia | SOT-753 | On request | Price on request | Quote |
 | 74HC1G04GV-Q100H#C546694Nexperia · SC-74A | Nexperia | SC-74A | 100 | ₹19.17 · 100 in stock | View |
 | NC7S04M5X#C110326onsemi · SOT-23-5 | onsemi | SOT-23-5 | 34,650 | ₹9.54 · 34,650 in stock | View |
 | 74AHC1G04GV,125#C12484Nexperia · SOT-753 | Nexperia | SOT-753 | 1,580 | ₹22.93 · 1,580 in stock | View |
 | SN74AHC1G04DB(LX)#C22384791lingxingic · SOT-23-5 | lingxingic | SOT-23-5 | 3,740 | ₹7.05 · 3,740 in stock | View |
