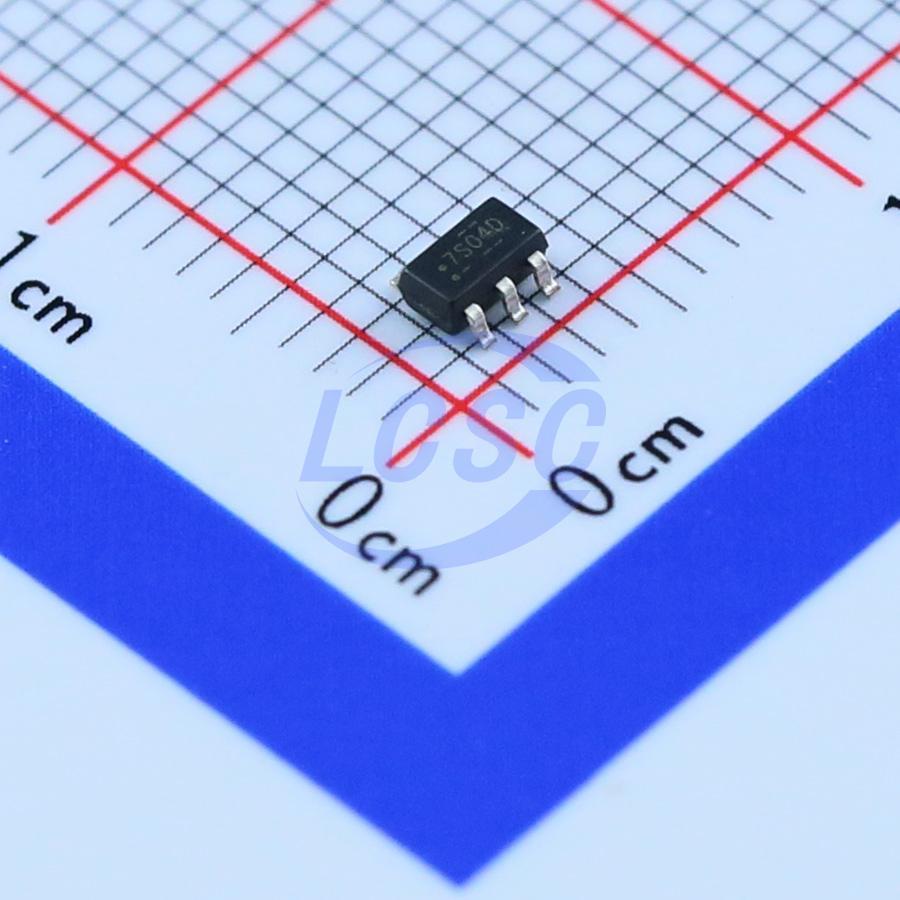

TinyLogic HS Inverter
- Manufacturer
- onsemi
- Manufacturer part #
- NC7S04M5X
- Store part #
- C110326
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
34,650 in stock
#C110326
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.93 | ₹79.30 |
| 100+ | ₹6.18 | ₹618.00 |
| 300+ | ₹5.31 | ₹1,593.00 |
| 3,000+ | ₹4.65 | ₹13,950.00 |
| 6,000+ | ₹4.13 | ₹24,780.00 |
| 9,000+ | ₹3.87 | ₹34,830.00 |
10 × ₹7.93
₹79.30
excl. GST
₹93.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7S04M5X
₹79.30 for 10 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 7S
- Input Type
- StandardCMOS
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 330mV
- Propagation Delay
- 17ns@6V,50pF
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V
- Input Logic Level - Low
- 500mV
- Output Logic Level - High
- 2.63V~3V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 2.6mA
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.041 g
Overview
The NC7S04 is a single high performance CMOS Inverter. Advanced Silicon Gate CMOS fabrication assures high speed and low power circuit operation over a broad VCC range. ESD protection diodes inherently guard both input and output with respect to the VCC and GND rails. Three stages of gain between input and output assures high noise immunity and reduced sensitivity to input edge rate.
Key features
- Space saving SOT23 or SC70 5 - lead package
- Ultra small MicroPak leadless package
- High Speed: tPD = 3 ns typ
- Low Quiescent Power: ICC < 1 μA
- Balanced Output Drive: 2 mA IOL, -2 mA IOH
- Broad VCC Operating Range: 2V - 6V
- Balanced Propagation Delays
- Specified for 3V operation
