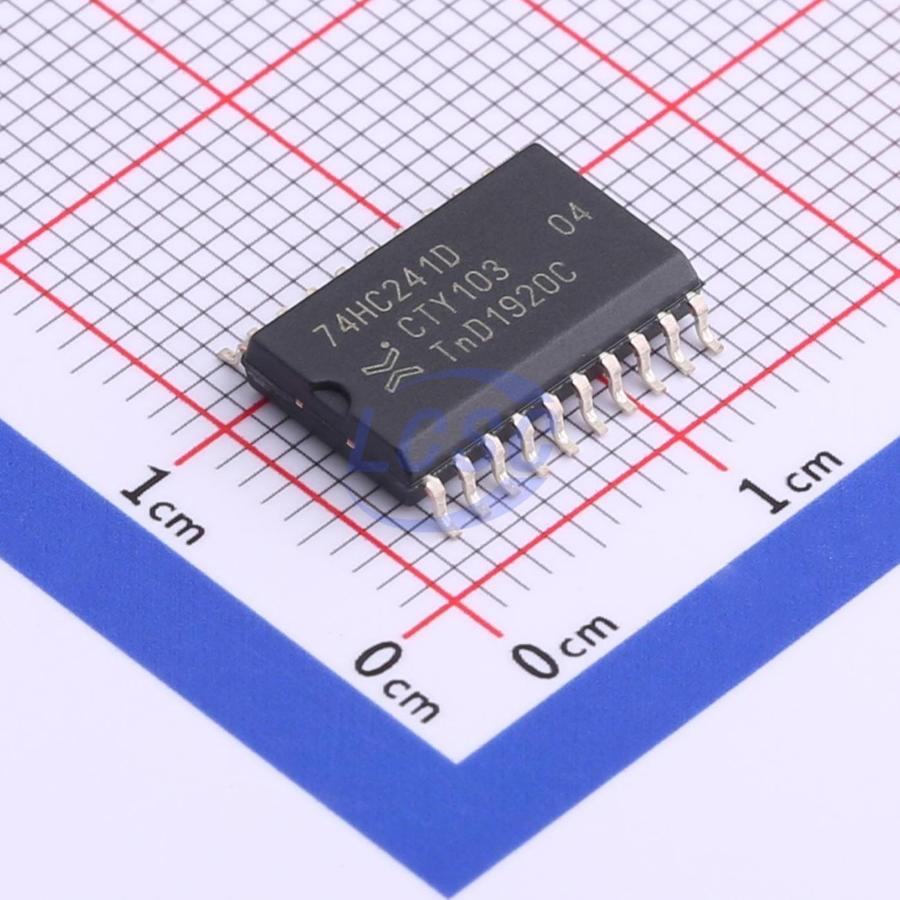

74HC241D,653
2V~6V 4 2 9ns@4.5V,50pF SOIC-20-300mil Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-20-300milROHS3 CompliantActive
Octal buffer/line driver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC241D,653
- Store part #
- C455081
- Package / case
- SOIC-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,676 in stock
#C455081
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹65.42 | ₹65.42 |
| 10+ | ₹58.52 | ₹585.20 |
| 30+ | ₹55.06 | ₹1,651.80 |
| 100+ | ₹51.60 | ₹5,160.00 |
| 500+ | ₹49.67 | ₹24,835.00 |
| 1,000+ | ₹48.58 | ₹48,580.00 |
1 × ₹65.42
₹65.42
excl. GST
₹77.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
74HC241D,653
₹65.42 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 160uA
- Propagation Delay
- 9ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.77 g
Overview
The 74HC241; 74HCT241 is an 8-bit buffer/line driver with 3-state outputs. The device can be used as two 4-bit buffers or one 8-bit buffer. The device features two output enables (1OE and 2OE), each controlling four of the 3-state outputs. A HIGH on 1OE or LOW on 2OE causes the associated outputs to assume a high-impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. The 74HCT241 device features reduced input threshold levels to allow interfacing to TTL logic levels.
Key features
- Wide supply voltage range from 2.0 to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Input levels: For 74HC241: CMOS level For 74HCT241: TTL level
- Octal bus interface
- Non-inverting 3-state outputs
- Complies with JEDEC standards JESD8C (2.7 V to 3.6 V) JESD7A (2.0 V to 6.0 V)
- ESD protection: HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
