MDD(Microdiode Semiconductor)Datasheet (PDF)

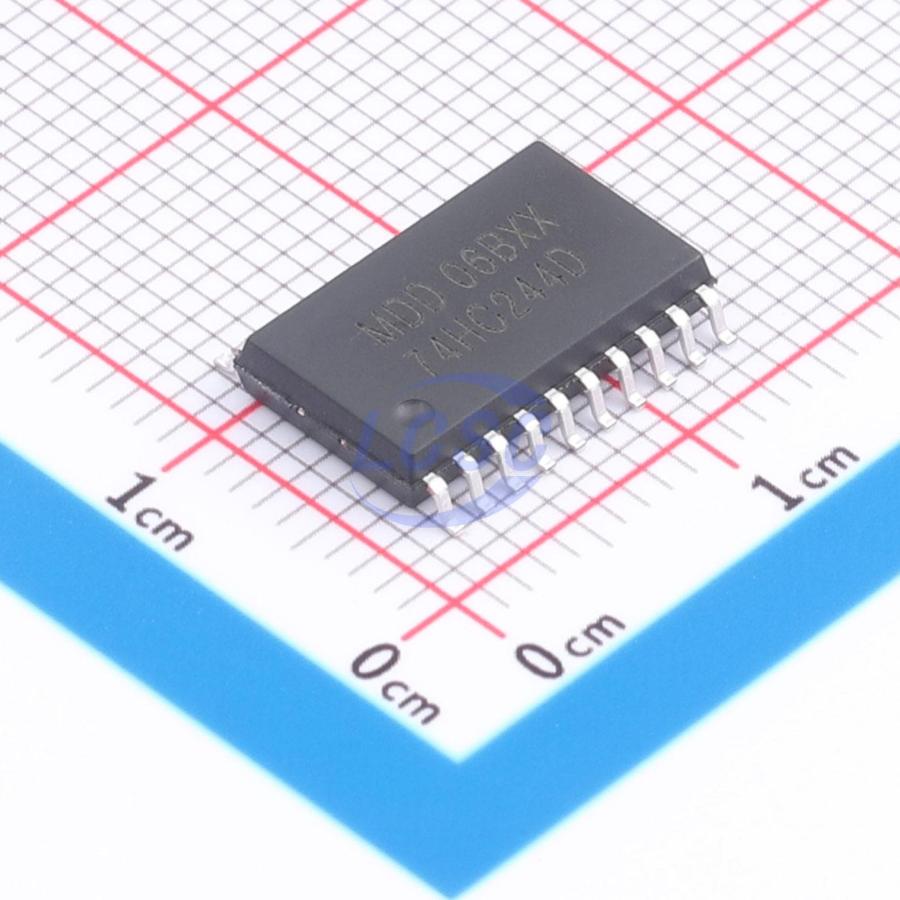

74HC244D
StandardCMOS 2V~6V 8 1 25ns@4.5V,50pF SOP-20L Buffers, Drivers, Receivers, Transceivers
SOP-20LRoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74HC244D
- Store part #
- C52140409
- Package / case
- SOP-20L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,366 in stock
#C52140409
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹34.13 | ₹34.13 |
| 10+ | ₹26.75 | ₹267.50 |
| 30+ | ₹23.59 | ₹707.70 |
| 100+ | ₹19.65 | ₹1,965.00 |
| 500+ | ₹17.89 | ₹8,945.00 |
| 1,000+ | ₹16.84 | ₹16,840.00 |
1 × ₹34.13
₹34.13
excl. GST
₹40.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
74HC244D
₹34.13 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Input type
- StandardCMOS
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 25ns@4.5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.853 g
Overview
The 74HC244 and 74HCT244 are 8-bit buffers/line drivers with 3-state outputs. The devices can be used as two 4-bit buffers or one 8-bit buffer. Each device has two output enable inputs (1OE and 2OE), each controlling four 3-state outputs. When nOE is HIGH, the outputs are in a high-impedance off-state. Inputs include clamping diodes, allowing input interfacing to voltages exceeding VCC using current-limiting resistors.
Key features
- Wide supply voltage range: 2.0V to 6.0V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 250mA
- 8-bit bus interface
- Non-inverting tri-state outputs
- JEDEC compliant
