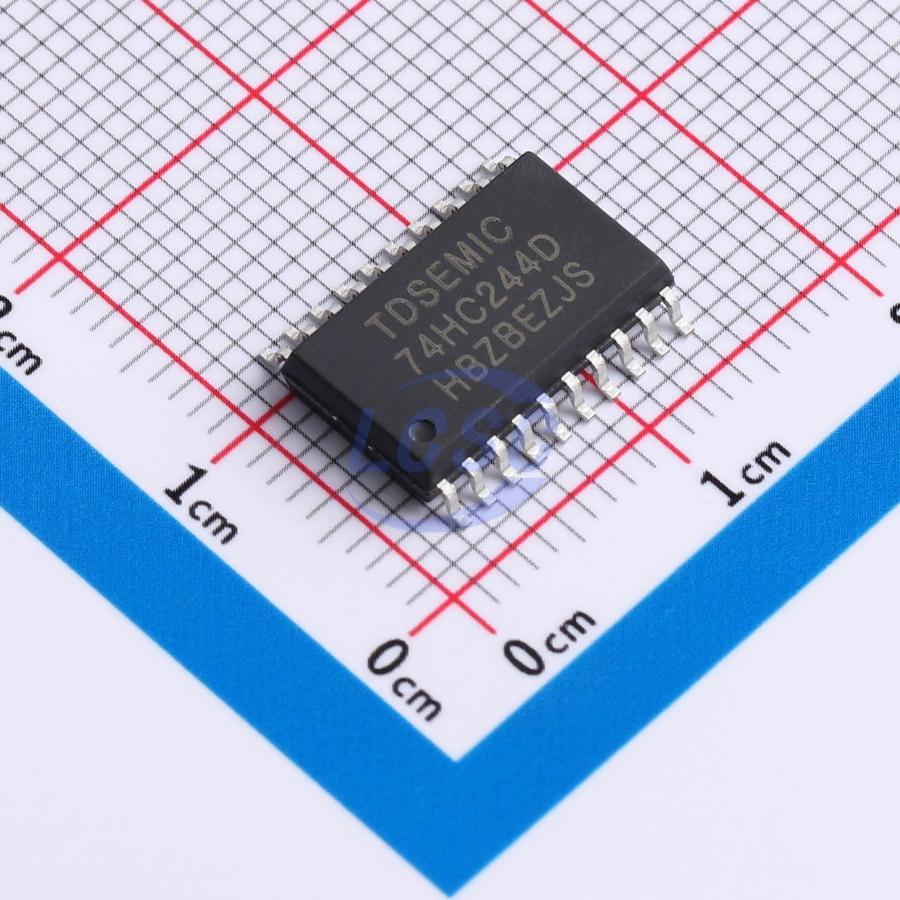

74HC244D-TD
Schmitt trigger 2V~6V 8 2 17ns@4.5V,50pF SOP-20 Buffers, Drivers, Receivers, Transceivers
SOP-20RoHSActive
- Manufacturer
- TDSEMIC
- Manufacturer part #
- 74HC244D-TD
- Store part #
- C52437585
- Package / case
- SOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,850 in stock
#C52437585
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.71 | ₹118.55 |
| 50+ | ₹18.69 | ₹934.50 |
| 150+ | ₹16.55 | ₹2,482.50 |
| 500+ | ₹13.87 | ₹6,935.00 |
| 2,000+ | ₹12.67 | ₹25,340.00 |
| 4,000+ | ₹11.95 | ₹47,800.00 |
5 × ₹23.71
₹118.55
excl. GST
₹139.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
74HC244D-TD
₹118.55 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Input type
- Schmitt trigger
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Current - Output Low(IOL)
- 7.8mA
- Output Type
- Tri-State
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 2
- Quiescent Supply Current
- 160uA
- Propagation Delay
- 17ns@4.5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.82 g
Overview
The 74HC244 is an 8-bit buffer/line driver with 3-state outputs. The device can be used as two 4-bit buffers or one 8-bit buffer. It features two output enable inputs (1OE and 2OE), each controlling four 3-state outputs. When nOE is HIGH, the outputs enter a high-impedance off-state. Input clamping diodes allow the inputs to be interfaced to voltages higher than VCC using current-limiting resistors.
Key features
- Operating voltage range: 2 ~ 6V
- Three-state outputs
- Output drive capability: 15 LSTTL loads
- Latch-up performance ≤ 250 mA
- ESD protection:
- HBM: Compliant with ANSI/ESDA/JEDEC JS-001 2023, exceeds 2000 V
- CDM: Compliant with ANSI/ESDA/JEDEC JS-002 2022, exceeds 1000 V
- Package options: DIP-20, SOP-20, SSOP-20, TSSOP-20
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74LS244-TD#C52437589TDSEMIC · SOP-20 | TDSEMIC | SOP-20 | On request | Price on request | Quote |
