HANSCHIP semiconductorDatasheet (PDF)

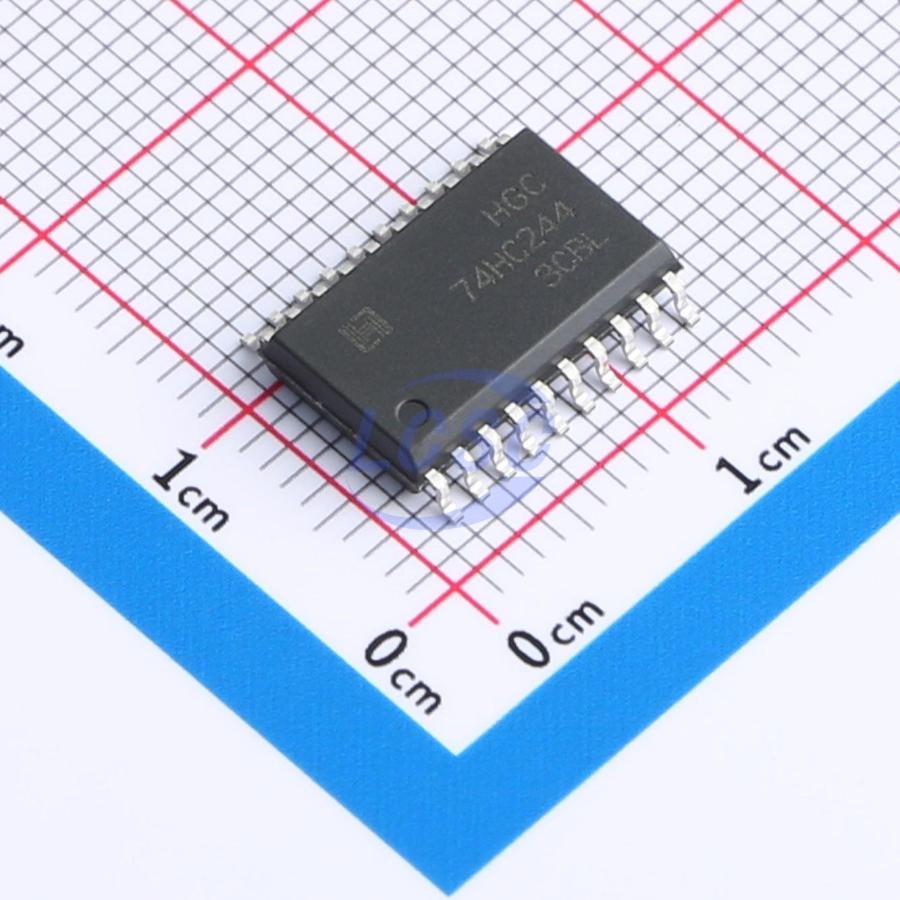

74HC244DRG
2V~6V 4 2 11ns@4.5V,50pF SOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
SOP-20ROHS CompliantActive
Octal Buffer/Line Driver; 3-state
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- 74HC244DRG
- Store part #
- C19723794
- Package / case
- SOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,765 in stock
#C19723794
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.02 | ₹95.10 |
| 50+ | ₹14.96 | ₹748.00 |
| 150+ | ₹12.93 | ₹1,939.50 |
| 500+ | ₹11.40 | ₹5,700.00 |
| 2,000+ | ₹10.19 | ₹20,380.00 |
| 4,000+ | ₹9.58 | ₹38,320.00 |
5 × ₹19.02
₹95.10
excl. GST
₹112.22 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
74HC244DRG
₹95.10 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 8uA
- Propagation Delay
- 11ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.796 g
Overview
The 74HC/HCT244 is an 8-bit buffer/line driver with 3-state outputs. The device can be used as two 4-bit buffers or one 8-bit buffer. The device features two output enables (1OE and 2OE), each controlling four of the 3-state outputs. A HIGH on nOE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Input levels:
- For 74HC244: CMOS level
- For 74HCT244: TTL level
- Octal bus interface
- Non-inverting 3-state outputs
- Multiple package options
- Specified from -40°C to +85°C
- Packaging information: DIP-20/SOP-20/TSSOP-20
