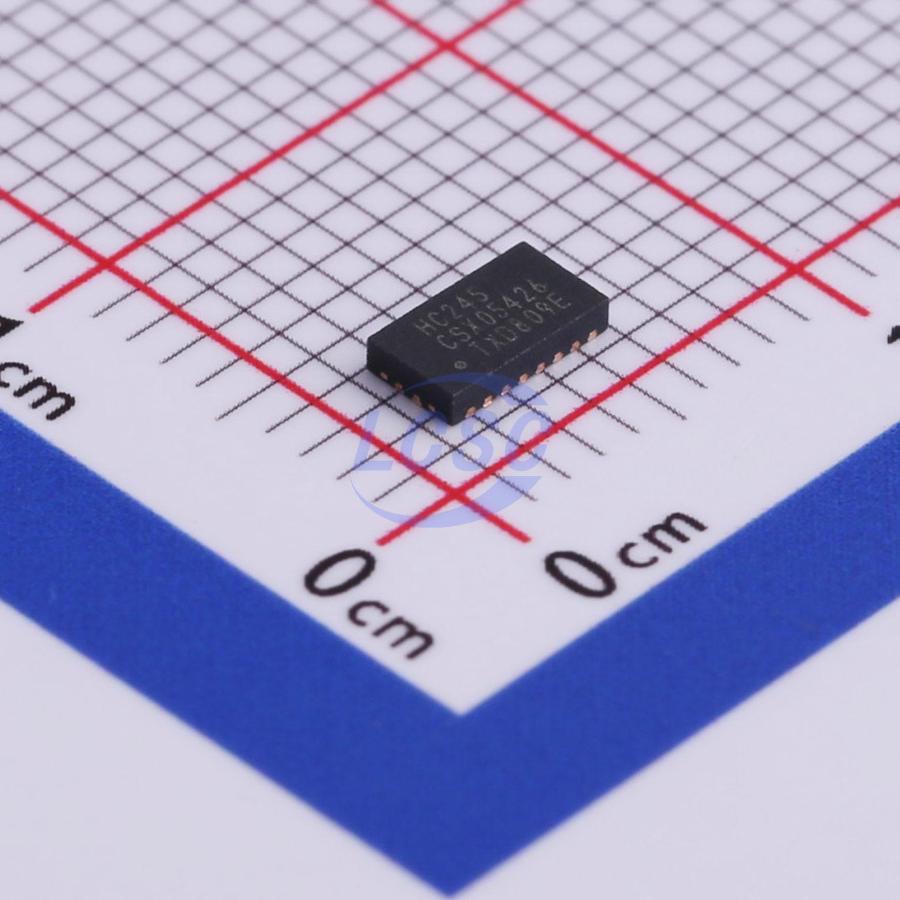

74HC245BQ,115
2V~6V 8 1 9ns@4.5V,50pF DHVQFN-20-EP(2.5x4.5) Buffers, Drivers, Receivers, Transceivers RoHS
DHVQFN-20-EP(2.5x4.5)ROHS3 CompliantActive
Octal bus transceiver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC245BQ,115
- Store part #
- C503362
- Package / case
- DHVQFN-20-EP(2.5x4.5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
72,640 in stock
#C503362
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.56 | ₹247.80 |
| 50+ | ₹36.63 | ₹1,831.50 |
| 150+ | ₹31.09 | ₹4,663.50 |
| 500+ | ₹24.18 | ₹12,090.00 |
| 3,000+ | ₹21.10 | ₹63,300.00 |
| 6,000+ | ₹19.26 | ₹1,15,560.00 |
5 × ₹49.56
₹247.80
excl. GST
₹292.40 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC245BQ,115
₹247.80 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 160uA
- Propagation Delay
- 9ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
The 74HC245; 74HCT245 is an 8-bit transceiver with 3-state outputs. The device features an output enable (OE) and send/receive (DIR) for direction control. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- 8-channel bidirectional bus interface
Key features
- Wide supply voltage range from 2.0 to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Octal bidirectional bus interface
- Non-inverting 3-state outputs
- Input levels: For 74HC245: CMOS level For 74HCT245: TTL level
- Complies with JEDEC standards
- JESD8C (2.7 V to 3.6 V) JESD7A (2.0V to 6.0 V)
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- ESD protection:
- HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
