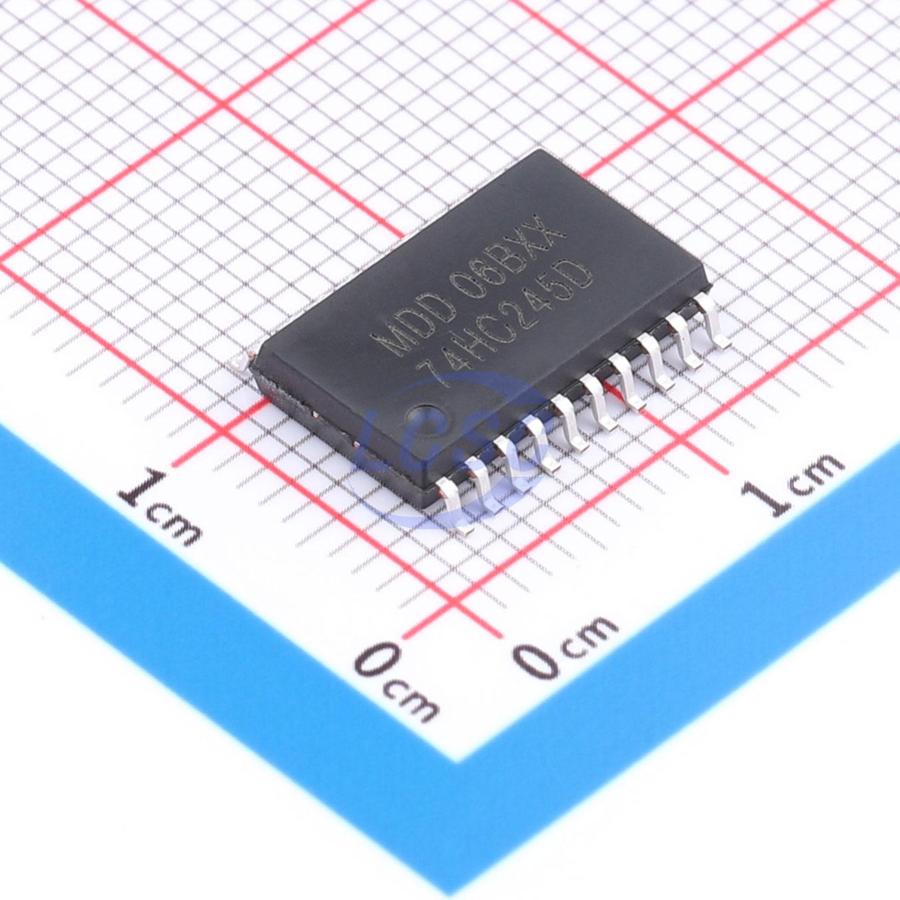

74HC245D

The 74HC245 and 74HCT245 are 8-bit transceivers with 3-state outputs. The devices feature an output enable (OE) and a transmit/receive (DIR) input for direction control. When OE is HIGH, the outputs are in a high-impedance off-state. Inputs include clamping diodes, which allow inputs to be connected to voltages exceeding VCC using current-limiting resistors.

Key features

• Wide supply voltage range: 2.0 V to 6.0 V
• High noise immunity
• CMOS low power consumption
• Latch-up performance exceeds 250 mA
• Octal bidirectional bus interface
• Non-inverting tri-state outputs
• JEDEC compliant:
• JESD8C (2.7 V to 3.6 V)
• JESD7A (2.0 V to 6.0 V)
• Input levels:
• 74HC245: CMOS level
• 74HCT245: TTL level
• ESD protection:
• HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 6000 V
• CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
• Multiple package options
