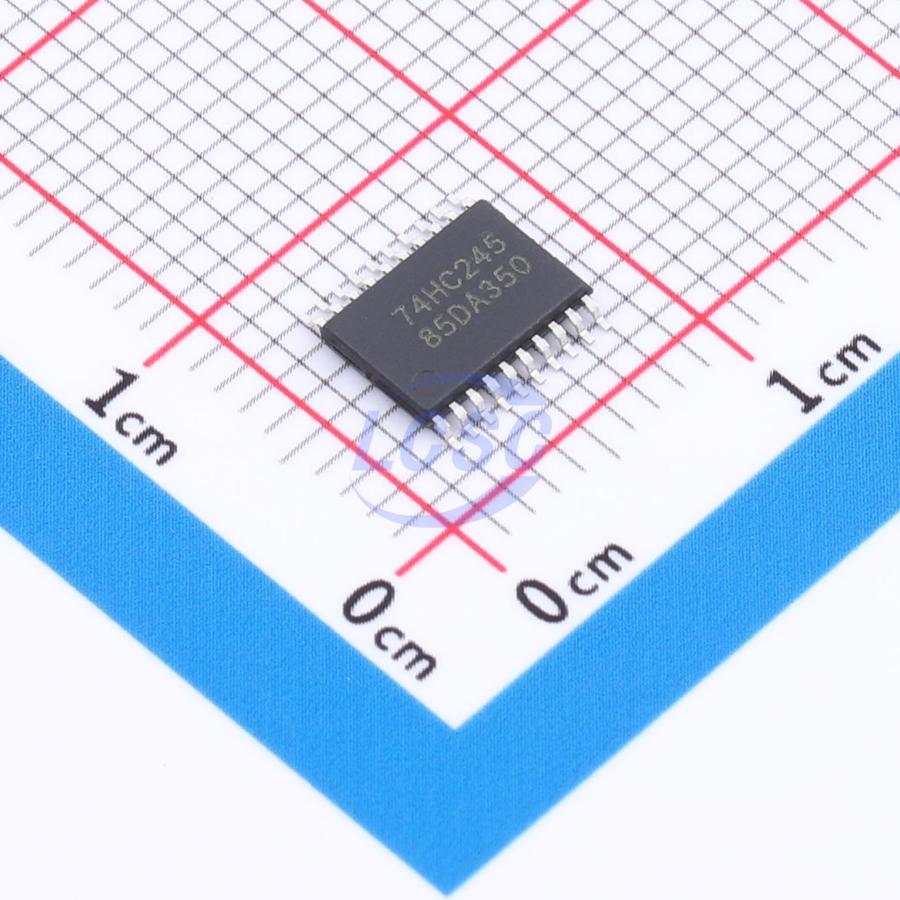

JSMSEMI

74HC245PW,118-JSM

StandardCMOS 2V~6V 8 1 9ns@4.5V,15pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS

TSSOP-20ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: 74HC245PW,118-JSM
Store part #: C53436307
Package / case: TSSOP-20
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,855 in stock

#C53436307

Stock & price checked 22 h ago

Quantity	Unit price	Pack price
5+	₹15.27	₹76.35
50+	₹12.15	₹607.50
150+	₹10.58	₹1,587.00
500+	₹9.42	₹4,710.00
2,500+	₹8.48	₹21,200.00
5,000+	₹8.02	₹40,100.00

Quantity (min 5, multiples of 5)

5 × ₹15.27

₹76.35

excl. GST

₹90.09 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

74HC245PW,118-JSM

₹76.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input type: StandardCMOS
Current - Output High(IOH): 35mA
Series: 74HC
Voltage - Supply: 2V~6V
Output Type: Tri-State
Current - Output Low(IOL): 35mA
Number of Bits per Element: 8
Channel Type: Bidirectional
Number of Elements: 1
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 8uA
Propagation Delay: 9ns@4.5V,15pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.235 g

Overview

The 74HC/HCT245 is an 8-bit bus transceiver circuit with 3-state control. It features an output enable port OE and a direction select port DIR for controlling transmit/receive operation. When OE is HIGH, the outputs are disabled in a high-impedance state. The inputs include built-in clamp diodes, allowing the input interface to be connected to voltages exceeding Vcc through current-limiting resistors.

Key features

Input levels: CMOS for 74HC245, TTL for 74HCT245
8-bit bidirectional bus interface
Non-inverting tri-state outputs
Operating temperature range: -40℃ ~ +125℃
Package types: DIP20/SOP20/TSSOP20/DHVQFN20/QFN20
