MDD(Microdiode Semiconductor)Datasheet (PDF)

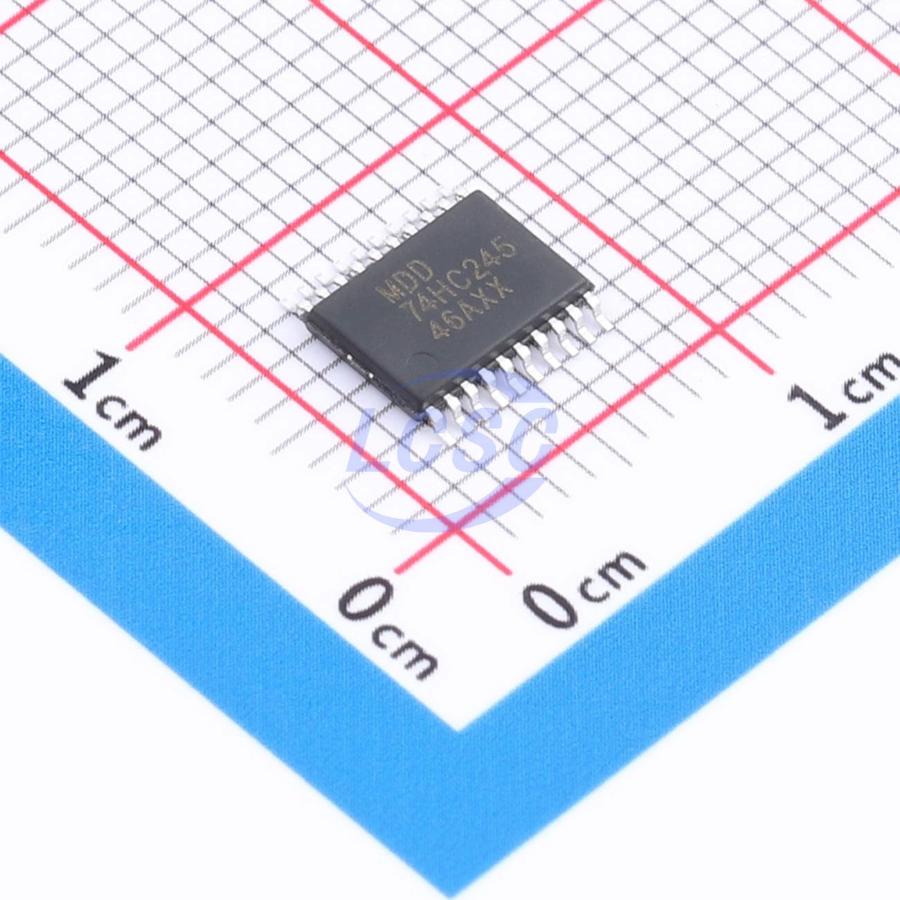

74HC245PW
2V~6V 8 1 TSSOP-20 Buffers, Drivers, Receivers, Transceivers
TSSOP-20RoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74HC245PW
- Store part #
- C53552922
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,200 in stock
#C53552922
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.54 | ₹112.70 |
| 50+ | ₹17.68 | ₹884.00 |
| 150+ | ₹15.58 | ₹2,337.00 |
| 500+ | ₹12.98 | ₹6,490.00 |
| 2,500+ | ₹11.81 | ₹29,525.00 |
| 5,000+ | ₹11.13 | ₹55,650.00 |
5 × ₹22.54
₹112.70
excl. GST
₹132.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC245PW
₹112.70 for 5 + GST
Specifications
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 40uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.28 g
Overview
The 74HC245 and 74HCT245 are 8-bit transceivers with 3-state outputs. The devices feature an output enable (OE) and a transmit/receive (DIR) input for direction control. When OE is HIGH, the outputs are in a high-impedance off-state. Inputs include clamping diodes, which allow inputs to be connected to voltages exceeding VCC using current-limiting resistors.
Key features
- Wide supply voltage range: 2.0 V to 6.0 V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 250 mA
- Octal bidirectional bus interface
- Non-inverting tri-state outputs
- JEDEC compliant:
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- Input levels:
- 74HC245: CMOS level
- 74HCT245: TTL level
- ESD protection:
- HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 6000 V
- CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
