NexperiaDatasheet (PDF)

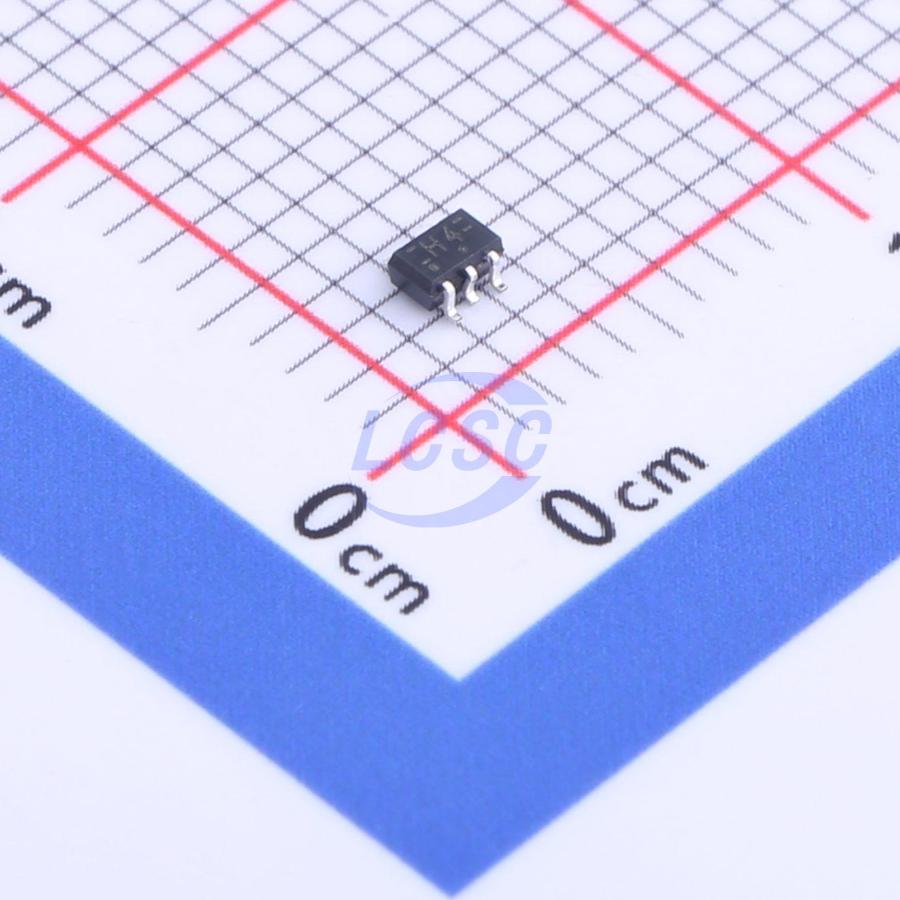

74HC2G04GW,125
StandardCMOS 2V~6V 13ns@6V,50pF 20uA 2 TSSOP-6-1.3mm Gates and Inverters RoHS
TSSOP-6-1.3mmROHS3 CompliantActive
Dual inverter
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC2G04GW,125
- Store part #
- C730244
- Package / case
- TSSOP-6-1.3mm
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,295 in stock
#C730244
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.53 | ₹192.65 |
| 50+ | ₹30.31 | ₹1,515.50 |
| 150+ | ₹26.78 | ₹4,017.00 |
| 500+ | ₹22.39 | ₹11,195.00 |
| 3,000+ | ₹20.43 | ₹61,290.00 |
| 6,000+ | ₹19.25 | ₹1,15,500.00 |
5 × ₹38.53
₹192.65
excl. GST
₹227.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC2G04GW,125
₹192.65 for 5 + GST
Specifications
- output type
- Push-pull
- Input Type
- StandardCMOS
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 13ns@6V,50pF
- Output Logic Level - Low
- 100mV;260mV
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 20uA
- Number of Channels
- 2
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.039 g
Overview
The 74HC2G04; 74HCT2G04 is a dual inverter. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- Input levels: For 74HC2G04: CMOS level For 74HCT2G04: TTL level
- High noise immunity
- CMOS low power dissipation
- Balanced propagation delays
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NL27WZ04DFT2G#C154778onsemi · SC-70-6(SOT-363) | onsemi | SC-70-6(SOT-363) | 18,460 | ₹9.22 · 18,460 in stock | View |
 | SN74LVC2G04DC(LX)#C22469911lingxingic · SOT-363 | lingxingic | SOT-363 | 4,160 | ₹7.65 · 4,160 in stock | View |
 | SN74LVC2GU04DC(LX)#C22469959lingxingic · SOT-363 | lingxingic | SOT-363 | 265 | ₹10.76 · 265 in stock | View |
 | 74LVC2GU04GW,125#C548694Nexperia · SOT-363 | Nexperia | SOT-363 | 2,400 | ₹34.76 · 2,400 in stock | View |
 | 74LVC2G04DW-7#C69053DIODES · SOT-363 | DIODES | SOT-363 | 48,615 | ₹17.54 · 48,615 in stock | View |
