DIODES

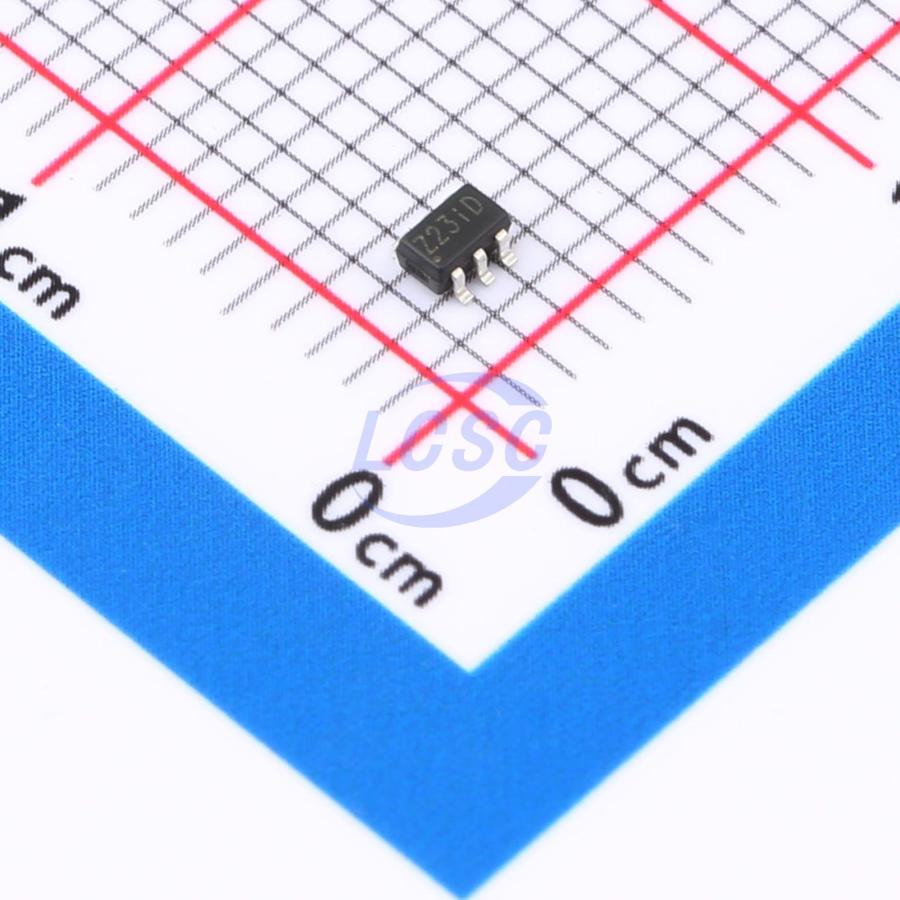

74LVC2G04DW-7

StandardCMOS 1.65V~5.5V 3.8ns@5V,50pF 10uA 2 SOT-363 Gates and Inverters RoHS

SOT-363ROHS3 CompliantActive

DUAL INVERTERS

Manufacturer: DIODES
Manufacturer part #: 74LVC2G04DW-7
Store part #: C69053
Package / case: SOT-363
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

48,775 in stock

#C69053

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹17.53	₹87.65
50+	₹14.10	₹705.00
150+	₹12.40	₹1,860.00
500+	₹11.10	₹5,550.00
3,000+	₹9.02	₹27,060.00
6,000+	₹8.52	₹51,120.00

Quantity (min 5, multiples of 5)

5 × ₹17.53

₹87.65

excl. GST

₹103.43 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74LVC2G04DW-7

₹87.65 for 5 + GST

Specifications

output type: Push-pull
Logic Family: 74LVC
Input Type: StandardCMOS
Voltage - Supply: 1.65V~5.5V
Output Logic Level - Low: 550mV
Propagation Delay: 3.8ns@5V,50pF
Features: Power shutdown protection
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 700mV~800mV
Input Logic Level - High: 1.7V~2V
Output Logic Level - High: 3.8V
Quiescent Current(Iq): 10uA
Current - Output High(IOH): 32mA
Number of Channels: 2
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.3 g

Overview

The DiODEsTM 74LVC2G04 is a dual inverter gate with standard push- pull outputs. The device is designed for operation with a power supply range of 1.65V to 5.5V. The inputs are tolerant to 5.5V, allowing this device to be used in a mixed voltage environment. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down.

Applications

Voltage level shifting
General purpose logics
Power down signal isolations
Wide array of products such as: PCs, networking, notebooks, netbooks, tablets
Computer peripherals, hard drives, SSD, CD/DVD ROM
TV, DVD, DVR, set- top boxes
Cell phones, personal navigations/GPS
MP3 players, cameras, video recorders

Key features

Wide supply Voltage Range from 1.65V to 5.5V
±24mA Output Drive at 3.0V
CMOS Low Power Consumption
IOFF Supports Partial- Power- Down Mode Operation
Inputs Accept up to 5.5V
ESD Protection Tested per JESD 22
Exceeds 2000V Human Body Model (A114)
Exceeds 1000V Charged Device Model (C101)
Latch- up Exceeds 100mA per JESD 78, Class I
X2- DFN1409- 6 Package Designed as a Direct Replacement for Chip Scale Packaging
Range of Package Options SOT26, SOT363, X1- DFN1010- 6 (Type B), X2- DFN1010- 6, X2- DFN1409- 6, and X2- DFN1410- 6
Leadless Packages Named per JESD30E
Totally Lead- Free & Fully RoHS Compliant
Halogen and Antimony Free. "Green" Device
