NexperiaDatasheet (PDF)
74LVC2GU04GW,125
StandardCMOS 1.65V~5.5V 3.8ns@5V,50pF 4uA 2 SOT-363 Gates and Inverters RoHS
SOT-363ROHS3 CompliantActive

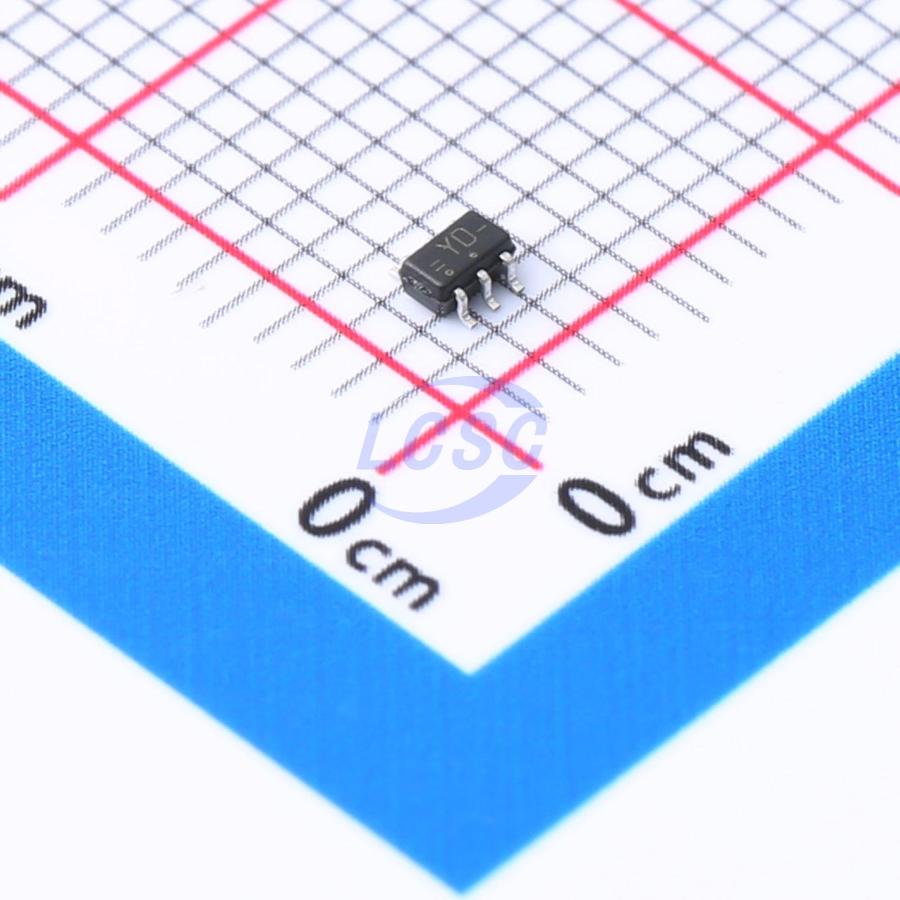

Dual unbuffered inverter
- Manufacturer
- Nexperia
- Manufacturer part #
- 74LVC2GU04GW,125
- Store part #
- C548694
- Package / case
- SOT-363
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,400 in stock
#C548694
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.76 | ₹173.80 |
| 50+ | ₹27.25 | ₹1,362.50 |
| 150+ | ₹24.03 | ₹3,604.50 |
| 500+ | ₹20.02 | ₹10,010.00 |
| 3,000+ | ₹18.23 | ₹54,690.00 |
| 6,000+ | ₹17.15 | ₹1,02,900.00 |
5 × ₹34.76
₹173.80
excl. GST
₹205.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC2GU04GW,125
₹173.80 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74LVC
- Input Type
- StandardCMOS
- Voltage - Supply
- 1.65V~5.5V
- Output Logic Level - Low
- 100mV;700mV;450mV;600mV;800mV
- Propagation Delay
- 3.8ns@5V,50pF
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 330mV~1.1V
- Input Logic Level - High
- 1.32V~4.4V
- Output Logic Level - High
- 950mV;1.7V;1.9V;2V;3.4V
- Quiescent Current(Iq)
- 4uA
- Current - Output High(IOH)
- 32mA
- Number of Channels
- 2
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
The 74LVC2GU04 is a dual unbuffered inverter. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments.
Applications
- Linear amplifier
- In crystal oscillator design
Key features
- Wide supply voltage range from 1.65 V to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- ±24 mA output drive (VCC = 3.0 V)
- CMOS low power dissipation
- Latch-up performance exceeds 250 mA
- Complies with JEDEC standard no. 8 - 1A
- ESD protection: HBM: ANSI/ESDA/JEDEC JS - 001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS - 002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 °C to +85 °C and -40 °C to +125 °C
