74HC2G125DP,125
2V~6V 1 2 11ns@4.5V,50pF TSSOP-8 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-8ROHS3 CompliantActive

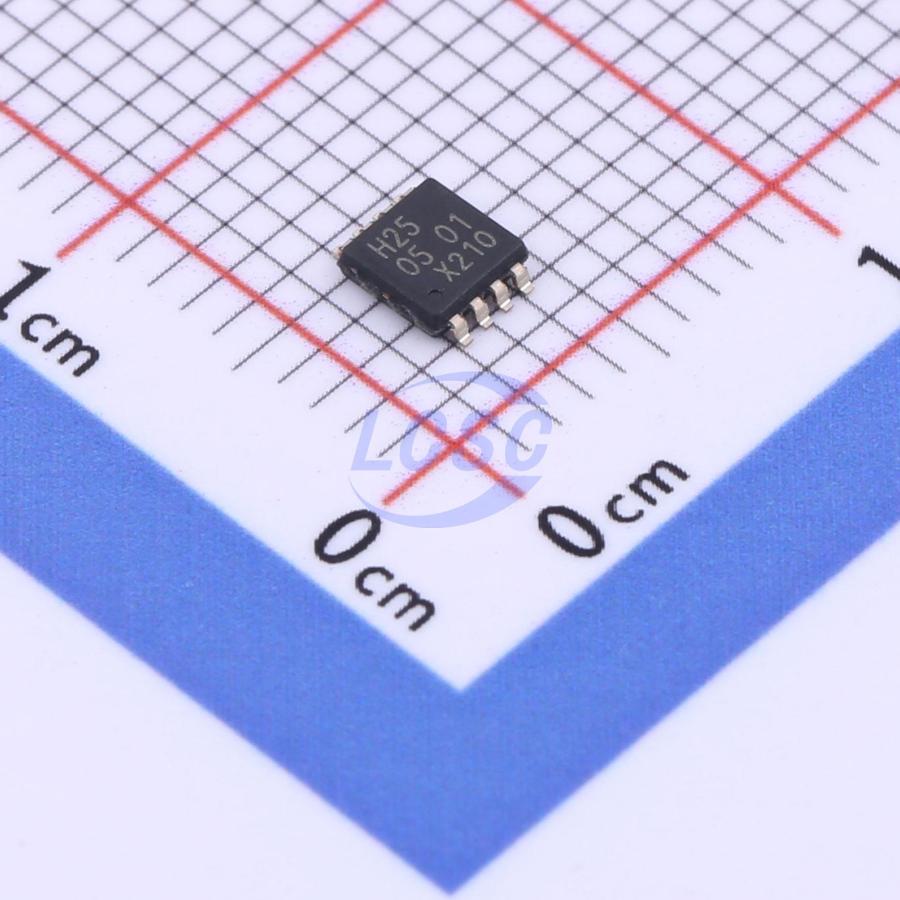

Dual buffer/line driver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC2G125DP,125
- Store part #
- C489233
- Package / case
- TSSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,495 in stock
#C489233
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.49 | ₹182.45 |
| 50+ | ₹28.29 | ₹1,414.50 |
| 150+ | ₹24.78 | ₹3,717.00 |
| 500+ | ₹20.39 | ₹10,195.00 |
| 3,000+ | ₹18.43 | ₹55,290.00 |
| 6,000+ | ₹17.27 | ₹1,03,620.00 |
5 × ₹36.49
₹182.45
excl. GST
₹215.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC2G125DP,125
₹182.45 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 11ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.056 g
Overview
The 74HC2G125; 74HC2G125 are dual buffer/line drivers with 3-state outputs controlled by the output enable inputs (nOE). Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- Input levels: For 74HC2G125: CMOS level For 74HCT2G125: TTL level
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standard: JESD7A (4.5 V to 5.5 V)
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
