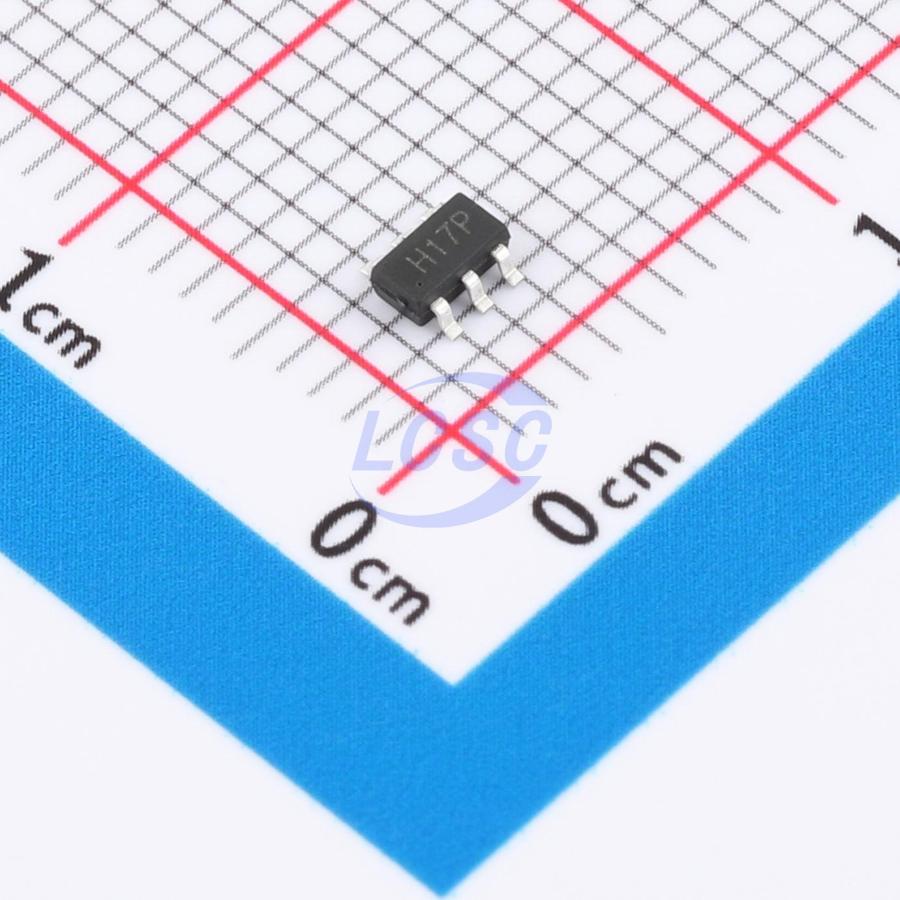

74HC2G17GV
Schmitt trigger 2V~6V 2 26ns@6.0V,50pF SOT23-6 Buffers, Drivers, Receivers, Transceivers
SOT23-6RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74HC2G17GV
- Store part #
- C52205112
- Package / case
- SOT23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,670 in stock
#C52205112
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.81 | ₹78.10 |
| 100+ | ₹6.15 | ₹615.00 |
| 300+ | ₹5.33 | ₹1,599.00 |
| 3,000+ | ₹4.71 | ₹14,130.00 |
| 6,000+ | ₹4.22 | ₹25,320.00 |
| 9,000+ | ₹3.97 | ₹35,730.00 |
10 × ₹7.81
₹78.10
excl. GST
₹92.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC2G17GV
₹78.10 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Current - Output High(IOH)
- 5.2mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Current - Output Low(IOL)
- 5.2mA
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 1uA
- Propagation Delay
- 26ns@6.0V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
TP74HC2G17 is a dual buffer with Schmitt-trigger inputs. The inputs include clamp diodes, which allow the inputs to be connected to voltages exceeding VCC using current-limiting resistors.
Applications
- AV receivers
- Portable audio docking stations
- Wired and wireless IP phones
- Embedded PCs
- Personal digital assistants (PDAs)
- Telecom DC/DC modular power supplies: analog and digital
Key features
- Operating voltage range: 2.0~6.0V
- High noise immunity
- Balanced propagation delay
- Low power consumption, max I<sub>CC</sub> of 10μA
- ESD protection exceeds JESD 22
- 2000V Human Body Model (A114-A)
- 200V Machine Model (A115-A)
- 1000V Charged Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74LVC2G17S6#C42460207TECH PUBLIC · SOT-23-6 | TECH PUBLIC | SOT-23-6 | 2,570 | ₹12.58 · 2,570 in stock | View |
