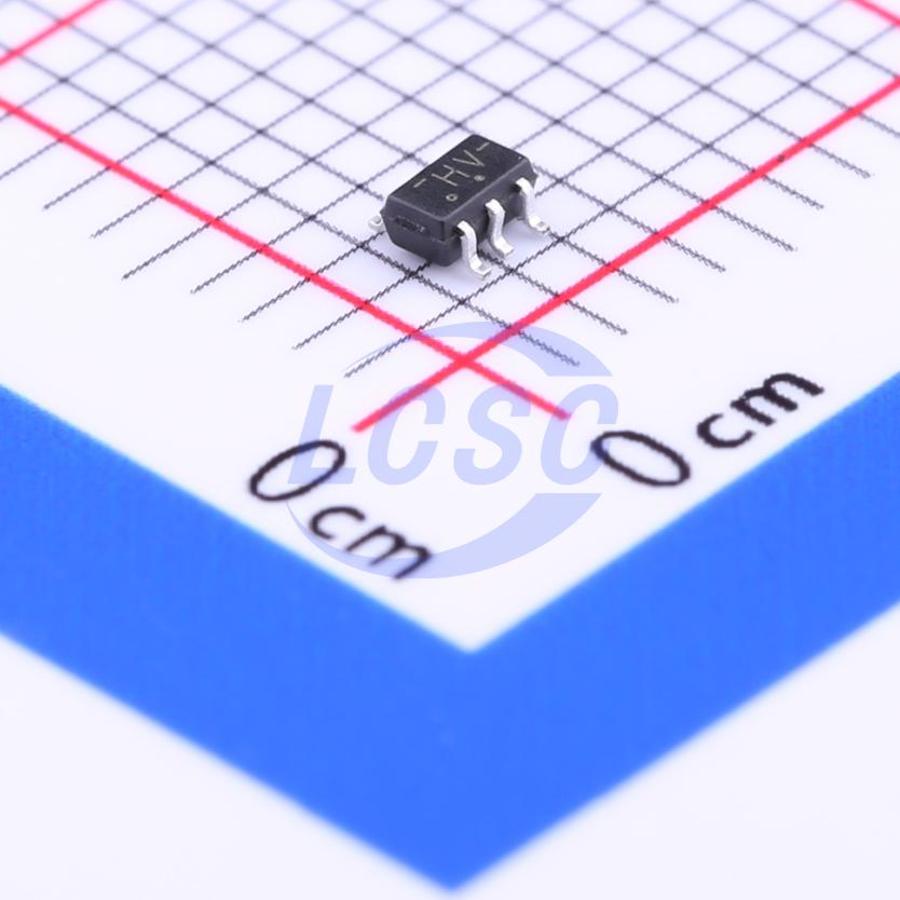

74HC2G17GW,125
Schmitt trigger 2V~6V 1 2 12ns@4.5V,50pF SOT-363 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-363ROHS3 CompliantActive
Dual non-inverting Schmitt trigger
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC2G17GW,125
- Store part #
- C94189
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,897 in stock
#C94189
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.56 | ₹51.56 |
| 10+ | ₹40.47 | ₹404.70 |
| 30+ | ₹35.89 | ₹1,076.70 |
| 100+ | ₹30.02 | ₹3,002.00 |
| 500+ | ₹27.41 | ₹13,705.00 |
| 1,000+ | ₹25.89 | ₹25,890.00 |
1 × ₹51.56
₹51.56
excl. GST
₹60.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC2G17GW,125
₹51.56 for 1 + GST
Specifications
- Input type
- Schmitt trigger
- Current - Output High(IOH)
- 5.2mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Current - Output Low(IOL)
- 5.2mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 1uA
- Propagation Delay
- 12ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.038 g
Overview
The 74HC2G17; 74HCT2G17 are dual buffers with Schmitt-trigger inputs. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. Schmitt trigger inputs transform slowly changing input signals into sharply defined jitter-free output signals.
Applications
- Wave and pulse shaper for highly noisy environments
- Astable multivibrators
- Monostable multivibrators
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Unlimited input rise and fall times
- Balanced propagation delays
- Input levels: For 74HC2G17: CMOS level; For 74HCT2G17: TTL level
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards: JESD8C (2.7 V to 3.6 V) JESD7A (2.0 V to 6.0 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +85 °C and -40 °C to +125 °C
