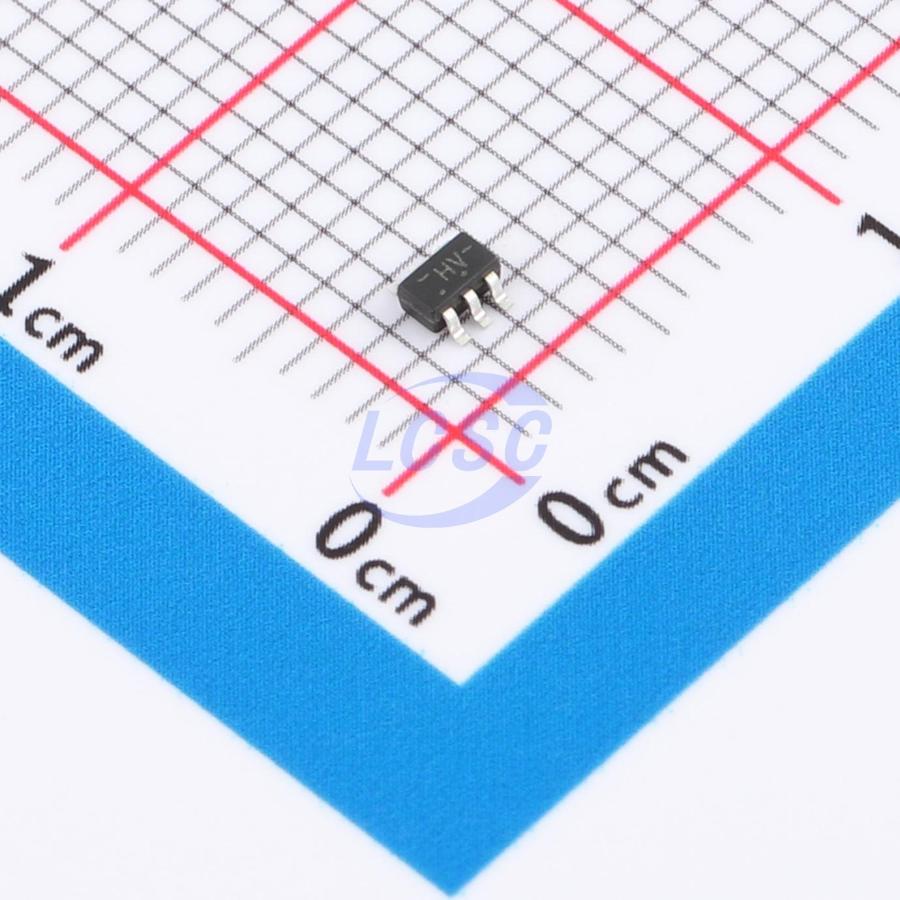

74HC2G17GW

Schmitt trigger 2V~6V 2 26ns@6.0V,50pF SOT-363 Buffers, Drivers, Receivers, Transceivers

SOT-363RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: 74HC2G17GW
Store part #: C52205113
Package / case: SOT-363
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,210 in stock

#C52205113

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹7.94	₹79.40
100+	₹6.26	₹626.00
300+	₹5.41	₹1,623.00
3,000+	₹4.79	₹14,370.00
6,000+	₹4.29	₹25,740.00
9,000+	₹4.04	₹36,360.00

Quantity (min 10, multiples of 10)

10 × ₹7.94

₹79.40

excl. GST

₹93.69 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74HC2G17GW

₹79.40 for 10 + GST

Specifications

Input type: Schmitt trigger
Current - Output High(IOH): 25mA
Series: 74HC
Voltage - Supply: 2V~6V
Current - Output Low(IOL): 25mA
Channel Type: Unidirectional
Number of Elements: 2
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 1uA
Propagation Delay: 26ns@6.0V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.03 g

Overview

TP74HC2G17 is a dual buffer with Schmitt-trigger inputs. The inputs include clamp diodes, which allow the inputs to be connected to voltages exceeding VCC using current-limiting resistors.

Applications

AV receivers
Portable audio docking stations
Wired and wireless IP phones
Embedded PCs
Personal digital assistants (PDAs)
Telecom DC/DC modular power supplies: analog and digital

Key features

Operating voltage range: 2.0~6.0V
High noise immunity
Balanced propagation delay
Low power consumption, max I<sub>CC</sub> of 10μA
ESD protection exceeds JESD 22
2000V Human Body Model (A114-A)
200V Machine Model (A115-A)
1000V Charged Device Model (C101)
