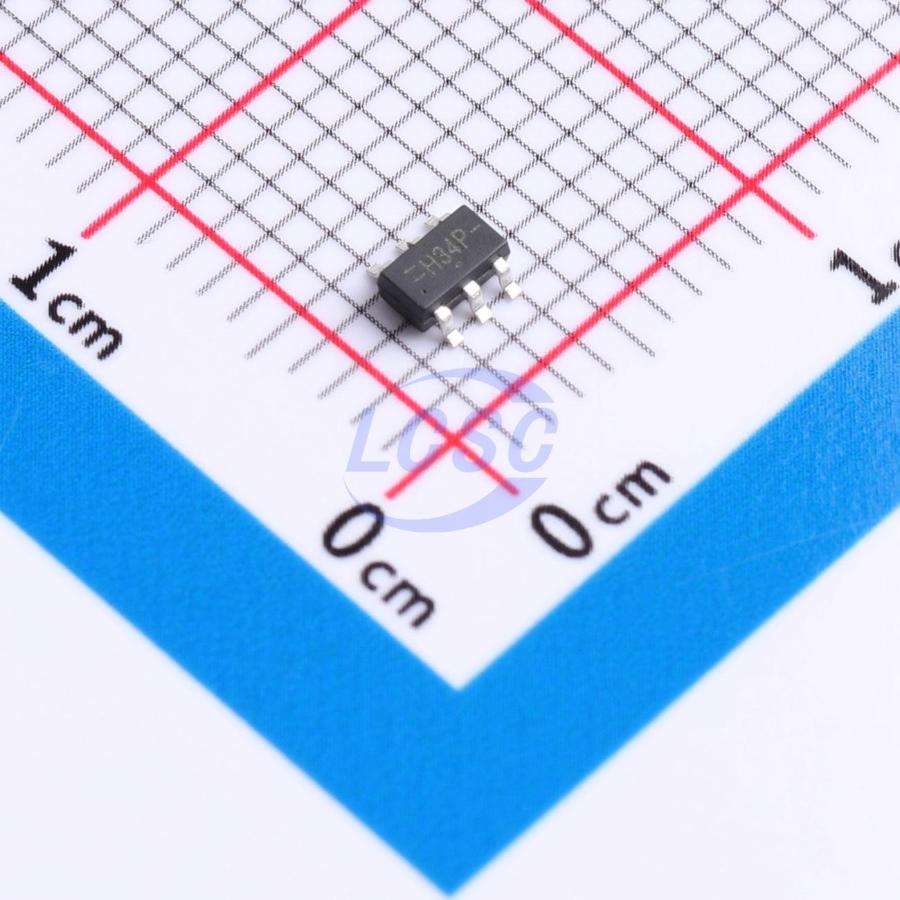

74HC2G34GV
2V~6V 2 13ns@6.0V,50pF SOT-23-6 Buffers, Drivers, Receivers, Transceivers
SOT-23-6RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74HC2G34GV
- Store part #
- C52205114
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,390 in stock
#C52205114
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.11 | ₹81.10 |
| 100+ | ₹6.39 | ₹639.00 |
| 300+ | ₹5.54 | ₹1,662.00 |
| 3,000+ | ₹4.90 | ₹14,700.00 |
| 6,000+ | ₹4.38 | ₹26,280.00 |
| 9,000+ | ₹4.13 | ₹37,170.00 |
10 × ₹8.11
₹81.10
excl. GST
₹95.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC2G34GV
₹81.10 for 10 + GST
Specifications
- Current - Output High(IOH)
- 5.2mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 1uA
- Propagation Delay
- 13ns@6.0V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.037 g
Overview
74HC2G34 is a dual buffer. The inputs include clamping diodes, which allow input interfacing to voltages above VCC using current-limiting resistors.
Applications
- AV receivers
- Audio docking stations
- IP phones
- Embedded PCs
- Personal digital assistants
Key features
- Operating voltage range: 2.0~6.0V
- High noise immunity
- Balanced propagation delay
- CMOS low power consumption
- ESD protection exceeds JESD 22 standard
- 2000-V Human Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged Device Model (C101)
