NexperiaDatasheet (PDF)

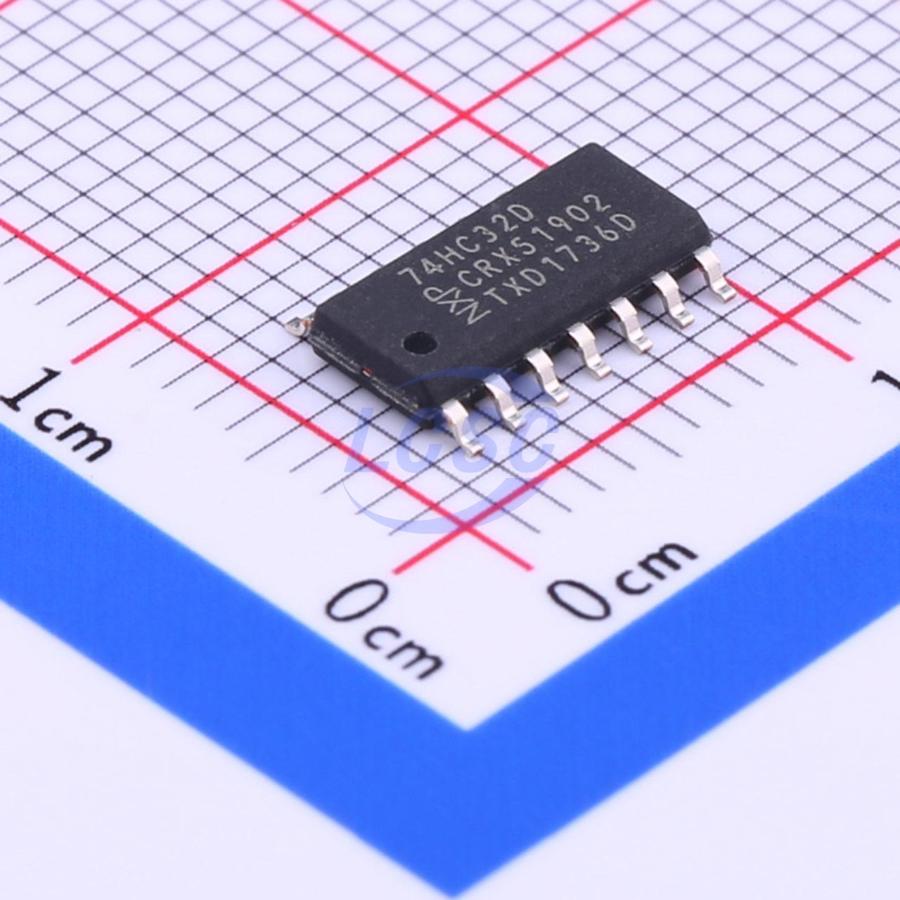

74HC32D,653
StandardCMOS 2V~6V 6ns@6V,50pF 2uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Quad 2-input OR gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC32D,653
- Store part #
- C5632
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,930 in stock
#C5632
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.89 | ₹79.45 |
| 50+ | ₹12.44 | ₹622.00 |
| 150+ | ₹10.72 | ₹1,608.00 |
| 500+ | ₹9.42 | ₹4,710.00 |
| 2,500+ | ₹8.39 | ₹20,975.00 |
| 5,000+ | ₹7.87 | ₹39,350.00 |
5 × ₹15.89
₹79.45
excl. GST
₹93.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC32D,653
₹79.45 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;400mV
- Propagation Delay
- 6ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.254 g
Overview
The 74HC32; 74HCT32 is a quad 2-input OR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Wide supply voltage range from 2.0 to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards:
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- Input levels:
- For 74HC32: CMOS level
- For 74HCT32: TTL level
- Symmetrical output impedance
- Balanced propagation delays
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD74HC32M96#C543033TI · SOIC-14 | TI | SOIC-14 | 860 | ₹42.03 · 860 in stock | View |
 | 74HC32D-Q100,118#C546864Nexperia · SOP-14 | Nexperia | SOP-14 | 77 | ₹118.99 · 77 in stock | View |
 | SN74HC32DR(LX)#C24833615lingxingic · SOP-14 | lingxingic | SOP-14 | 2,190 | ₹12.45 · 2,190 in stock | View |
 | SN74HC32DT#C2860971TI · SOIC-14 | TI | SOIC-14 | 5 | ₹13.89 · 5 in stock | View |
 | SN74HC32DR#C6838TI · SOIC-14 | TI | SOIC-14 | 23,455 | ₹33.33 · 23,455 in stock | View |
