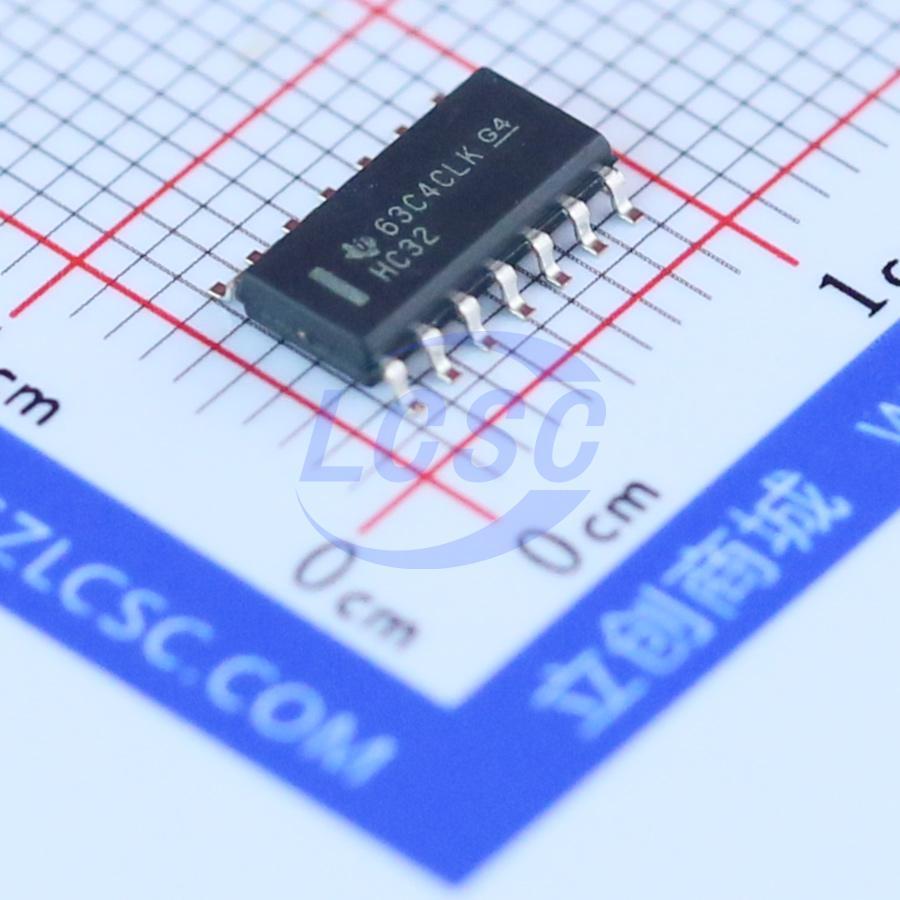

SN74HC32DR
2uA 2V~6V 17ns@6V,50pF SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
QUADRUPLE 2-INPUT POSITIVE-OR GATES
- Manufacturer
- TI
- Manufacturer part #
- SN74HC32DR
- Store part #
- C6838
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23,455 in stock
#C6838
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.33 | ₹166.65 |
| 50+ | ₹28.13 | ₹1,406.50 |
| 150+ | ₹25.89 | ₹3,883.50 |
| 500+ | ₹23.11 | ₹11,555.00 |
| 2,500+ | ₹19.66 | ₹49,150.00 |
| 5,000+ | ₹18.91 | ₹94,550.00 |
5 × ₹33.33
₹166.65
excl. GST
₹196.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
SN74HC32DR
₹166.65 for 5 + GST
Specifications
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+85℃
- Logic Family
- 74HC Series
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 2uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Output Logic Level - Low
- 100mV
- Propagation Delay
- 17ns@6V,50pF
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.296 g
Overview
The 'HC32 devices contain four independent 2- input OR gates. They perform the Boolean function Y = A(overline) • B(overline) or Y = A + B in positive logic.
Key features
- Wide operating voltage range: 2V~6V
- Output drives up to 10 LSTTL loads
- Low power consumption, max supply current Icc = 20μA
- Typical propagation delay tpd = 8ns
- Output drive current ±4mA at 5V
- Max input current = 1μA
- Absolute maximum ratings: supply voltage range -0.5V~7V, input clamp current ±20mA, output clamp current ±20mA, continuous output current ±25mA, continuous current through VCC or GND ±50mA, storage temperature range -65℃~150℃
- Thermal resistance by package: D package 86℃/W, DB package 96℃/W, N package 80℃/W, NS package 76℃/W, PW package 113℃/W
- All unused inputs must be tied to VCC or GND for proper device operation
