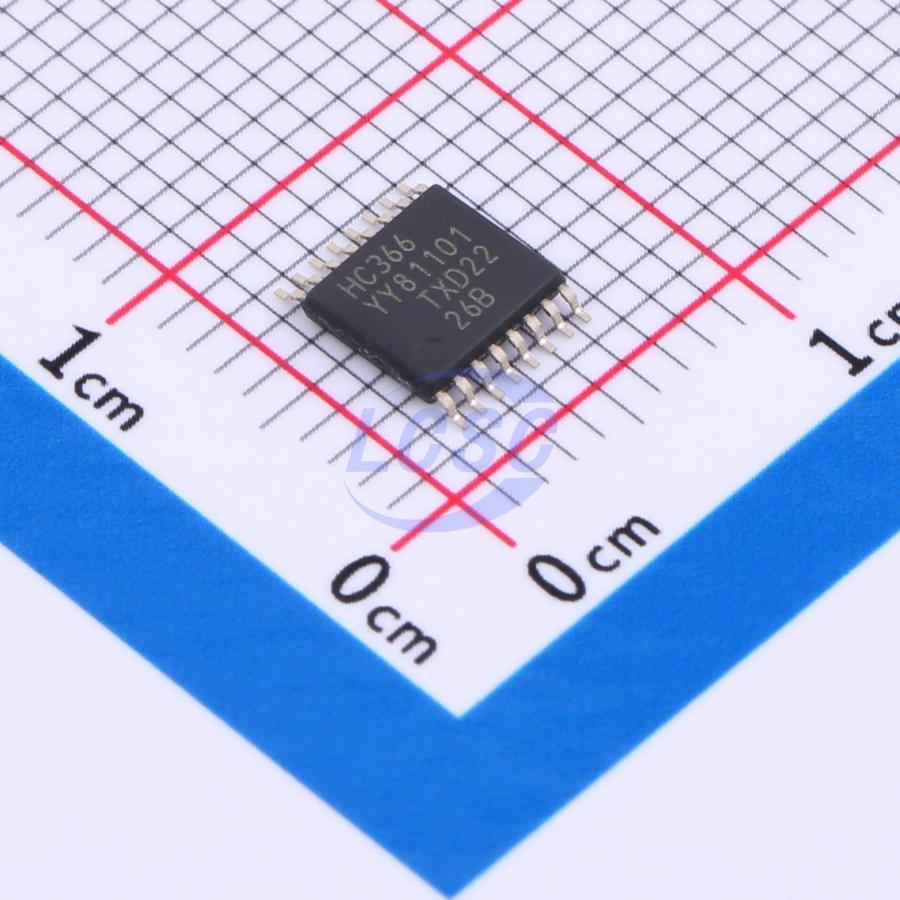

74HC366PW-Q100,118
2V~6V 6 1 12ns@4.5V,50pF TSSOP-16 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-16ROHS3 CompliantActive
Hex buffer/line driver; 3-state; inverting
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC366PW-Q100,118
- Store part #
- C546877
- Package / case
- TSSOP-16
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,483 in stock
#C546877
Stock & price checked 28 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.93 | ₹83.93 |
| 10+ | ₹67.41 | ₹674.10 |
| 30+ | ₹58.93 | ₹1,767.90 |
| 100+ | ₹50.88 | ₹5,088.00 |
| 500+ | ₹45.88 | ₹22,940.00 |
| 1,000+ | ₹43.28 | ₹43,280.00 |
1 × ₹83.93
₹83.93
excl. GST
₹99.04 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC366PW-Q100,118
₹83.93 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 6
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 160uA
- Propagation Delay
- 12ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
The 74HC366-Q100; 74HCT366-Q100 is a hex inverting buffer/line driver with 3-state outputs controlled by the output enable inputs (OEn). A HIGH on OEn causes the outputs to assume a high impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.
Applications
- Automotive applications
Key features
- Automotive product qualification in accordance with AEC-Q100 (Grade 1)
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
- Wide supply voltage range from 2.0 V to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards:
- JESD8C (2.7 V to 3.6 V) JESD7A (2.0 V to 6.0 V)
- Inverting outputs
- Input levels: For 74HC366-Q100: CMOS level; For 74HCT366-Q100: TTL level
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74HC365ADTR2G#C904041onsemi · TSSOP-16 | onsemi | TSSOP-16 | 13 | ₹32.39 · 13 in stock | View |
 | SN74HC365PWR#C2877050TI · TSSOP-16 | TI | TSSOP-16 | 1,685 | ₹63.58 · 1,685 in stock | View |
 | MC74HCT366ADTR2G#C904073onsemi · TSSOP-16 | onsemi | TSSOP-16 | 100 | ₹43.61 · 100 in stock | View |
 | EM74HC365PW#C49188229EnergyMath · TSSOP-16L | EnergyMath | TSSOP-16L | 65 | ₹25.89 · 65 in stock | View |
| 74HC366PW,118#C546876Nexperia · TSSOP-16 | Nexperia | TSSOP-16 | On request | ₹18.64 · 0 in stock | View | |
