JSMSEMIDatasheet (PDF)

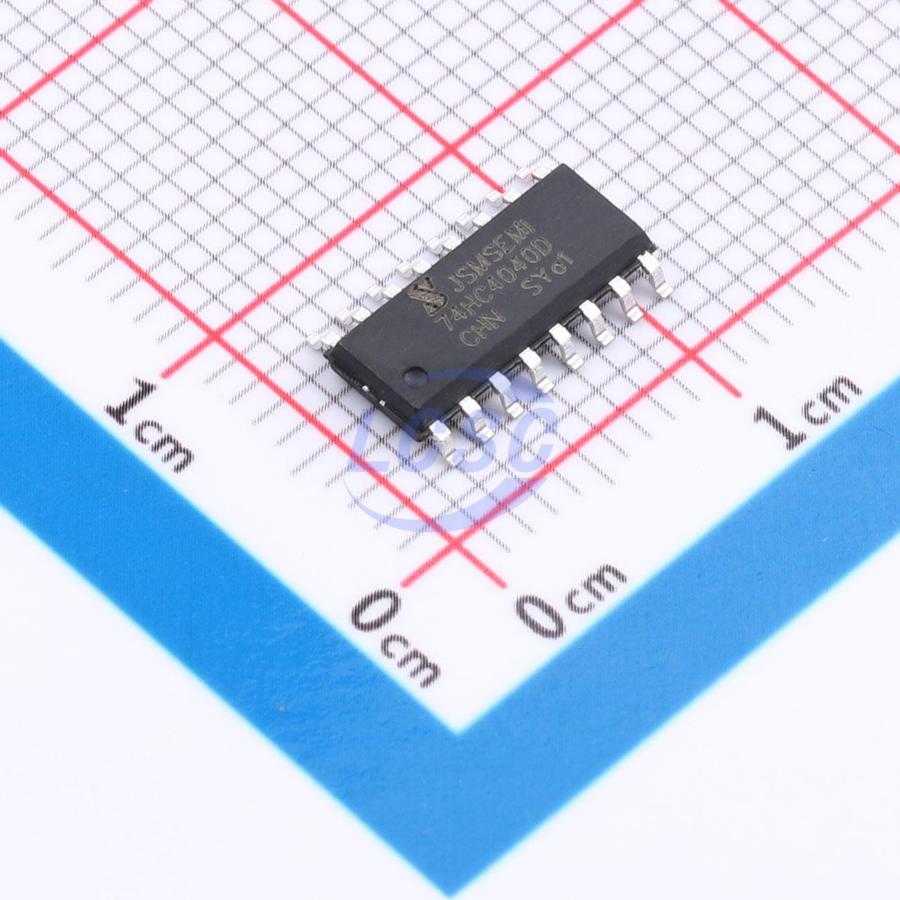

74HC4040D,653-JSM
Falling Edge 98MHz SOP-16 Counters, Dividers RoHS
SOP-16ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74HC4040D,653-JSM
- Store part #
- C53114400
- Package / case
- SOP-16
- Category
- Counters, Dividers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,010 in stock
#C53114400
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹36.62 | ₹183.10 |
| 50+ | ₹28.96 | ₹1,448.00 |
| 150+ | ₹25.69 | ₹3,853.50 |
| 500+ | ₹21.60 | ₹10,800.00 |
| 2,500+ | ₹19.78 | ₹49,450.00 |
| 5,000+ | ₹18.68 | ₹93,400.00 |
5 × ₹36.62
₹183.10
excl. GST
₹216.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC4040D,653-JSM
₹183.10 for 5 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Trigger Type
- Falling Edge
- Operating Temperature
- -40℃~+125℃
- Reset
- Asynchronous
- Propagation Delay
- 14ns@6V,50pF
- Count Rate
- 98MHz
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.058 g
Overview
74HC4040/HCT4040 is a 12-stage binary ripple counter featuring a clock input, a prioritized asynchronous master reset input, and twelve parallel outputs. Clamping diodes are integrated at the inputs, enabling interface connections to voltages exceeding VCC via current-limiting resistors.
Key features
- 74HC4040: CMOS input levels
- 74HCT4040: TTL input levels
- Operating temperature range: -40℃ ~ +125℃
- Package types: DIP16, SOP16, TSSOP16
