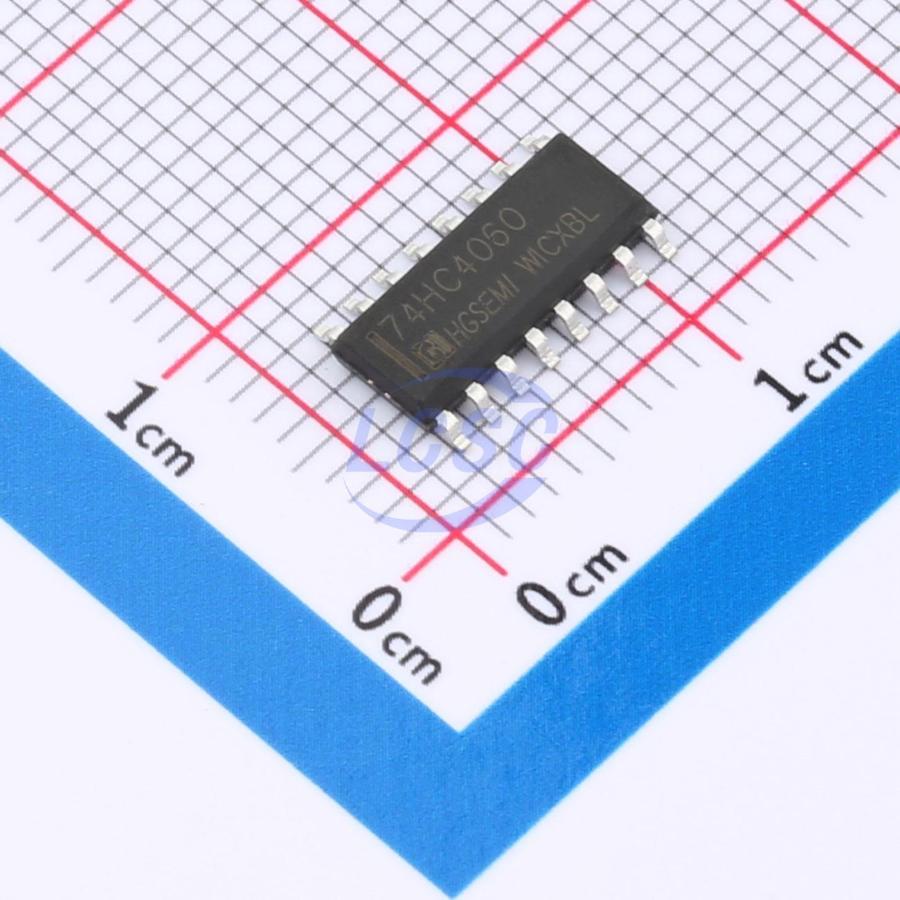

74HC4060M/TR
Falling Edge 7MHz SOP-16 Counters, Dividers
14-stage Ripple-carry Binary Counter/Divider and Oscillator
- Manufacturer
- HGSEMI
- Manufacturer part #
- 74HC4060M/TR
- Store part #
- C48783418
- Package / case
- SOP-16
- Category
- Counters, Dividers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,045 in stock
#C48783418
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.15 | ₹100.75 |
| 50+ | ₹15.82 | ₹791.00 |
| 150+ | ₹13.97 | ₹2,095.50 |
| 500+ | ₹11.66 | ₹5,830.00 |
| 2,500+ | ₹10.62 | ₹26,550.00 |
| 5,000+ | ₹10.00 | ₹50,000.00 |
5 × ₹20.15
₹100.75
excl. GST
₹118.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC4060M/TR
₹100.75 for 5 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 3V~15V
- Trigger Type
- Falling Edge
- Timing
- Asynchronous
- Operating Temperature
- -40℃~+125℃
- Reset
- Asynchronous
- Propagation Delay
- 100ns
- Count Rate
- 7MHz
- Features
- Static operation;Reset function
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.36 g
Overview
The 74HC4060 is a 14-stage ripple carry binary counter/divider and oscillator, featuring three oscillator terminals (RS, REXT, and CEXT), ten buffered outputs (Q3 through Q9 and Q11 through Q13), and an asynchronous master reset input (MR). The oscillator configuration allows design of RC or crystal oscillator circuits. The oscillator can be replaced by an external clock signal at input RS. The counter is triggered on the falling edge of RS. A HIGH level on MR resets the counter (Q3 through Q9 and Q11 through Q13 LOW), independent of all other input conditions. The recommended operating supply voltage VDD ranges from 3V to 15V, referenced to VSS (typically ground). Unused inputs must be connected to VDD, VSS, or another input.
Key features
- Wide supply voltage range, 3V to 15V
- Tolerates slow clock rise and fall times
- Fully static operation
- 5V, 10V, and 15V parametric ratings
- Standardized symmetrical output characteristics
- ESD protection on inputs and outputs
- Operating temperature range: -40℃ to +125℃
- Package options: DIP-16 / SOP-16 / TSSOP-16 / QSOP-16 / QFN-16
