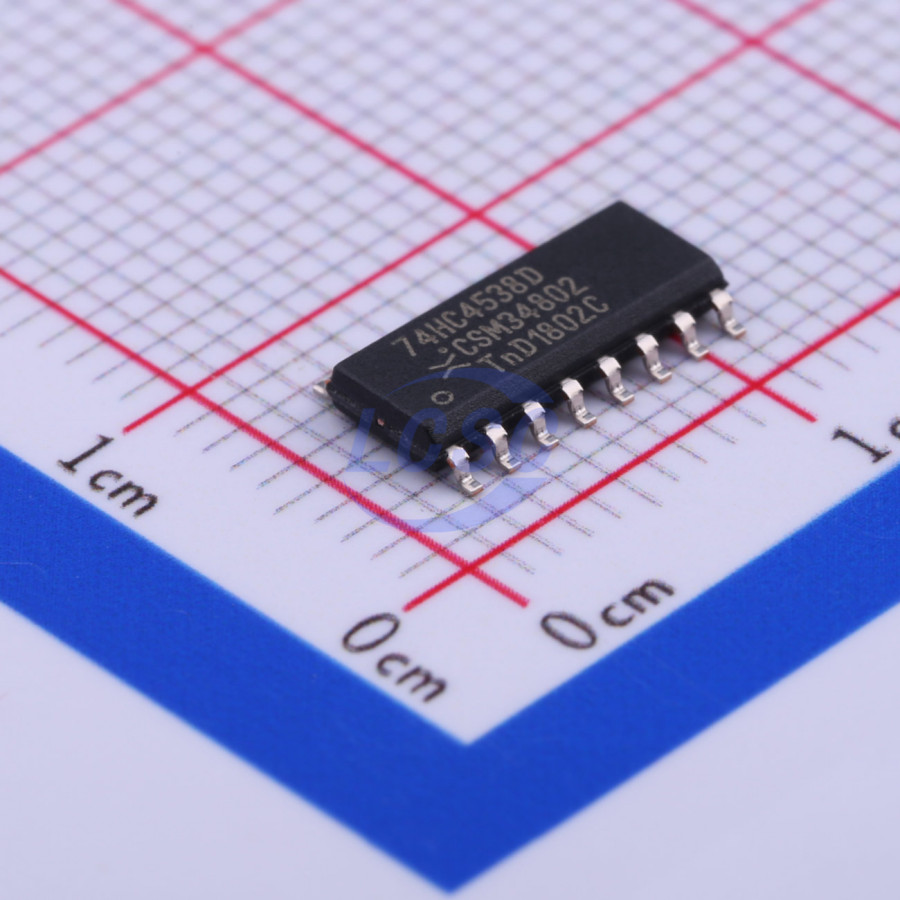

74HC4538D,653

The 74HC4538 is a dual retriggerable-resettable monostable multivibrator. Each multivibrator has two trigger/retrigger inputs (nA(overline) and nB), a direct reset input (nCD), two complementary outputs (nQ and nQ(overline)), and two pins (nREXT/CEXT and nCEXT) for connecting the external timing components C_EXT and R_EXT. Typical pulse width variation over temperature range is ± 0.2 %. The device may be triggered by either the positive or the negative edges of the input pulse. The duration and accuracy of the output pulse are determined by the external timing components C_EXT and R_EXT. The output pulse width (T_W) is equal to 0.7 × R_EXT × C_EXT. The linear design techniques guarantee precise control of the output pulse width. A LOW level at nCD terminates the output pulse immediately. Schmitt-trigger action in the trigger inputs makes the circuit highly tolerant to slower rise and fall times. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of V_CC.

Key features

• Wide supply voltage range from 2.0 to 6.0 V
• CMOS low power dissipation
• CMOS input levels
• High noise immunity
• Tolerant of slow trigger rise and fall times
• Separate reset inputs
• Triggering from falling or rising edge
• Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
• Complies with JEDEC standards JESD8C (2.7 V to 3.6 V) JESD7A (2.0 V to 6.0 V)
• ESD protection:
• HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
• CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
• Specified from -40 °C to +85 °C and from -40 °C to +125 °C
