JSMSEMI

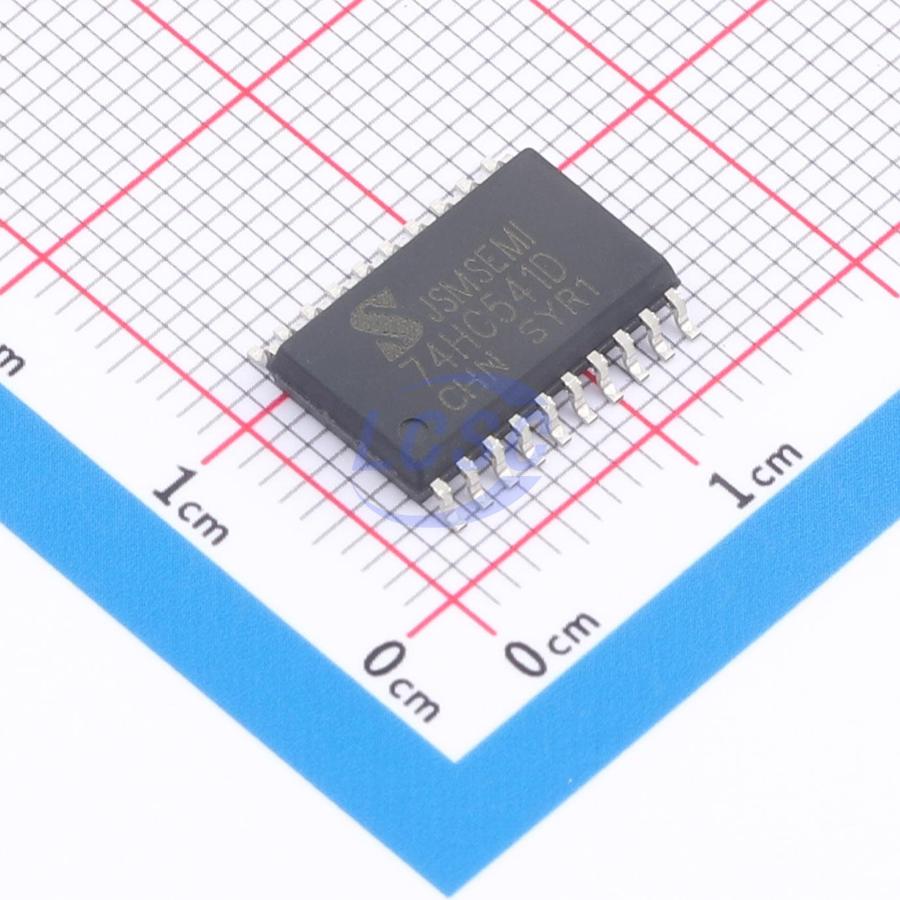

74HC541D,653-JSM

StandardCMOS 2V~6V 8 1 12ns@4.5V,50pF SOP-20-300mil Buffers, Drivers, Receivers, Transceivers RoHS

SOP-20-300milROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: 74HC541D,653-JSM
Store part #: C53436279
Package / case: SOP-20-300mil
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,725 in stock

#C53436279

Stock & price checked 35 h ago

Quantity	Unit price	Pack price
5+	₹32.94	₹164.70
50+	₹26.06	₹1,303.00
150+	₹23.11	₹3,466.50
500+	₹19.43	₹9,715.00
2,000+	₹17.79	₹35,580.00
4,000+	₹16.82	₹67,280.00

Quantity (min 5, multiples of 5)

5 × ₹32.94

₹164.70

excl. GST

₹194.35 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,000 per reel

74HC541D,653-JSM

₹164.70 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input type: StandardCMOS
Current - Output High(IOH): 35mA
Series: 74HC
Voltage - Supply: 2V~6V
Output Type: Tri-State
Current - Output Low(IOL): 35mA
Number of Bits per Element: 8
Channel Type: Unidirectional
Operating Temperature: -40℃~+125℃
Number of Elements: 1
Quiescent Supply Current: 8uA
Propagation Delay: 12ns@4.5V,50pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.862 g

Overview

The 74HC/HCT541 is an 8-bit non-inverting buffer/line driver with 3-state outputs. The device features two output enable controls (OE1 and OE2). A HIGH on either OEn (active LOW) forces the outputs into the high-impedance state. Input clamping diodes are included, enabling the use of current-limiting resistors to interface inputs to voltages exceeding VCC.
