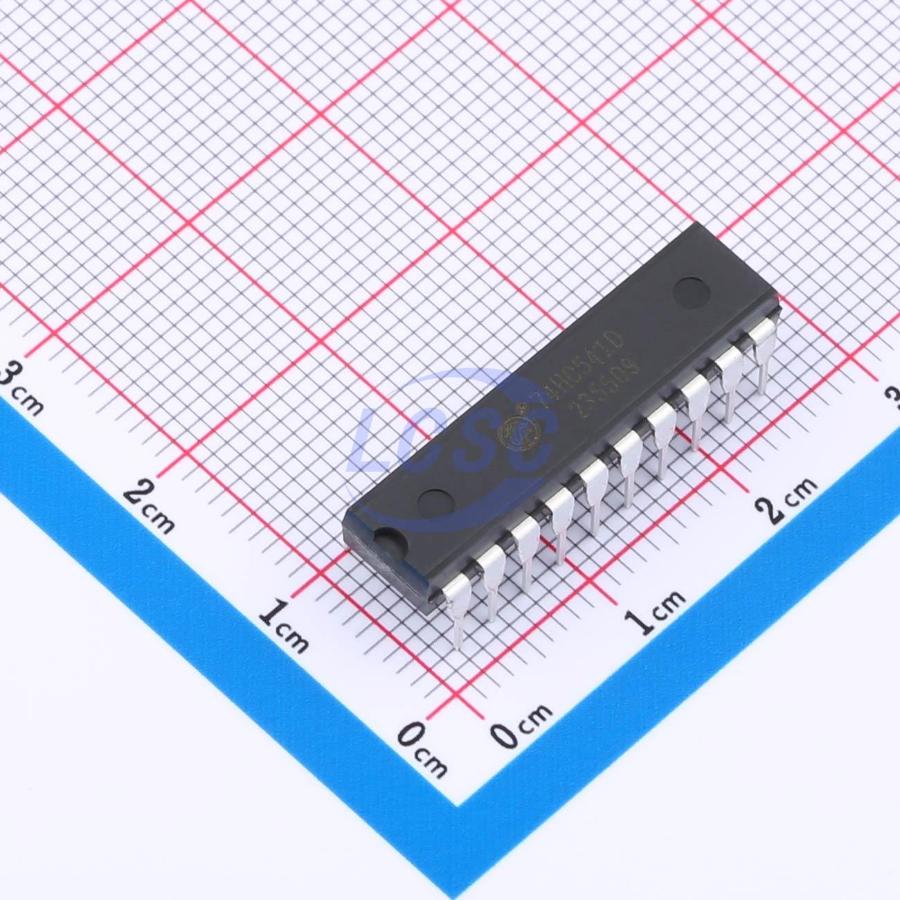

74HC541D
Buffer Driver 8 Bit per Element Tri-State Output DIP-20
DIP-20RoHSActive
8-channel buffer and/or bus transceiver driver
- Manufacturer
- GR
- Manufacturer part #
- 74HC541D
- Store part #
- C19818862
- Package / case
- DIP-20
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,377 in stock
#C19818862
Stock & price checked 37 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.54 | ₹64.54 |
| 10+ | ₹57.14 | ₹571.40 |
| 36+ | ₹53.45 | ₹1,924.20 |
| 108+ | ₹49.76 | ₹5,374.08 |
| 504+ | ₹47.59 | ₹23,985.36 |
| 1,008+ | ₹46.28 | ₹46,650.24 |
1 × ₹64.54
₹64.54
excl. GST
₹76.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 18 per tube
74HC541D
₹64.54 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Operating Temperature
- 0℃~+70℃
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 20ns@4.5V,47pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 18 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.5 g
Overview
The 74HC541 is an octal buffer and bus line driver with 3-state outputs. The 3-state outputs are controlled by enable inputs OE1 and OE2. When both OE1 and OE2 are low, each output level is determined by its corresponding input level. When either OE1 or OE2 is high, all outputs are in the high-impedance state.
Applications
- Servers
- Network switches
- Computers and laptops
- Electronic point-of-sale
- LED displays
- Telecom infrastructure
- Wearable health devices
Key features
- Low input current: ≤1uA (VCC = 6V)
- Three-state output bus driving
- Wide operating voltage range: 2.0V to 6.0V
- Output capable of driving up to 15 LSTTL loads
