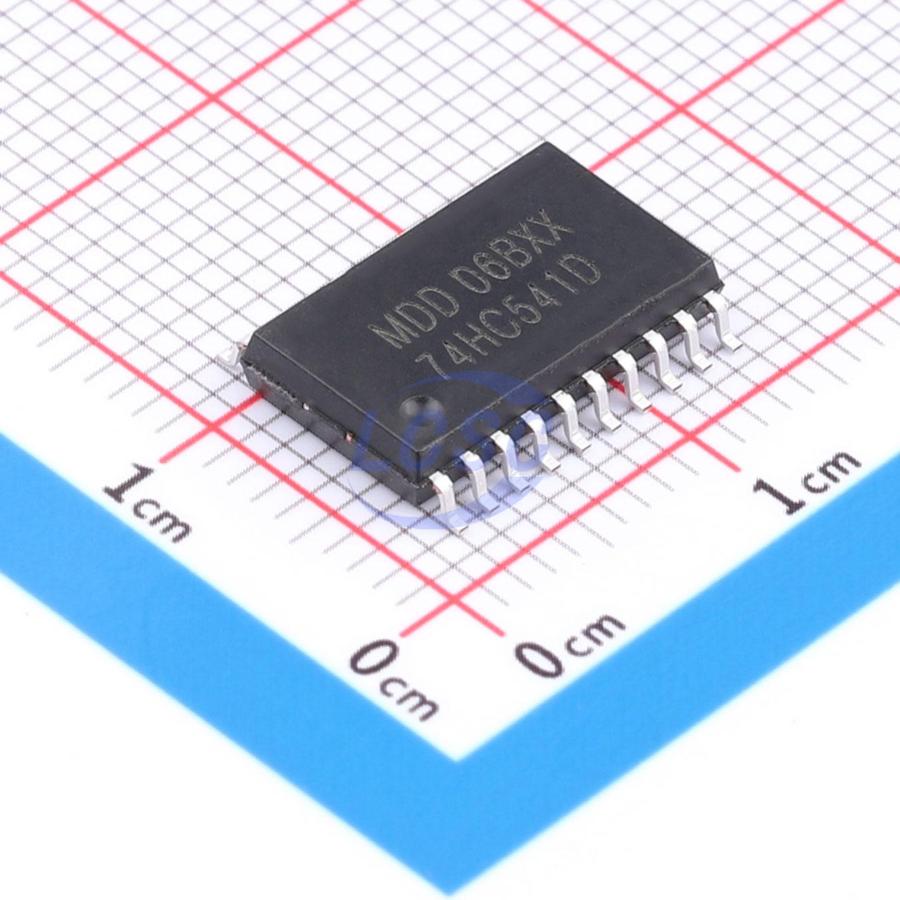

74HC541D

The 74HC541 and 74HCT541 are octal non-inverting buffers/line drivers with 3-state outputs. The devices feature two output enable inputs (OE1 and OE2). When OEn is HIGH, the outputs are in a high-impedance off-state. Inputs include clamping diodes, allowing inputs to be connected to voltages exceeding VCC using current-limiting resistors.

Key features

• Wide supply voltage range: 2.0 V ~ 6.0 V
• High noise immunity
• CMOS low power consumption
• Latch-up performance exceeds 250 mA
• JEDEC compliant:
• JESD8C (2.7 V ~ 3.6 V)
• JESD7A (2.0 V ~ 6.0 V)
• Input levels:
• 74HC541: CMOS level
• 74HCT541: TTL level
• ESD protection:
• HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 6000 V
• CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
• Multiple package options
