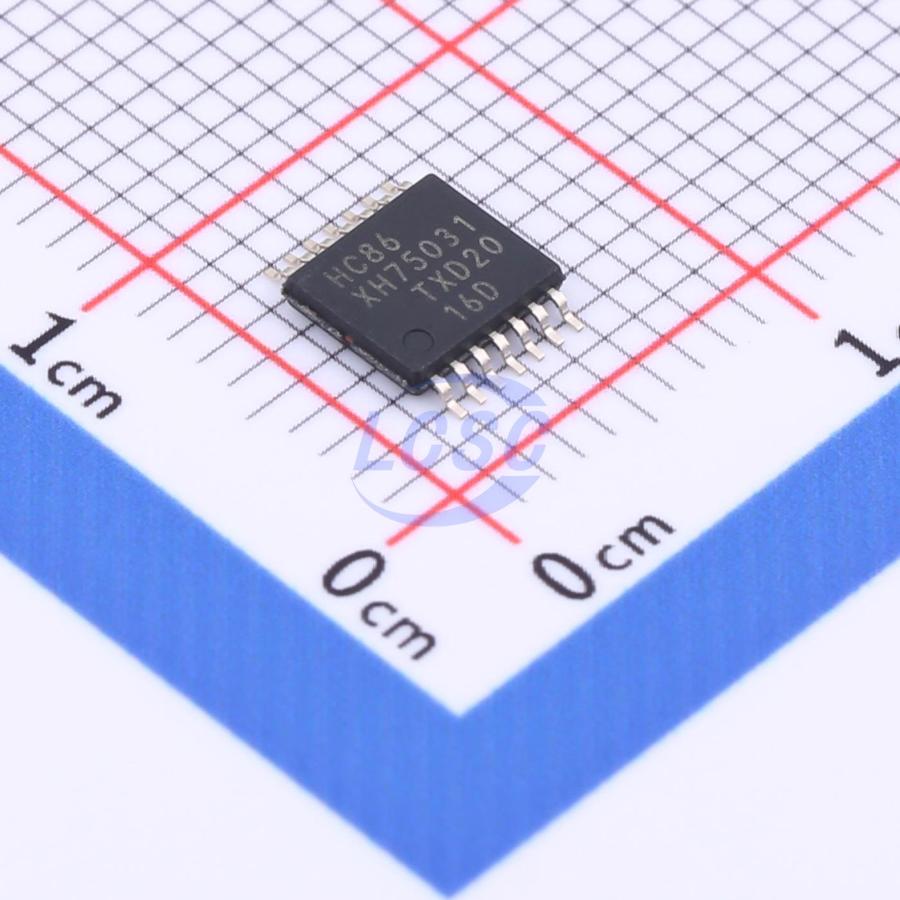

Quad 2-input EXCLUSIVE-OR gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC86PW,118
- Store part #
- C113209
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,430 in stock
#C113209
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.80 | ₹224.00 |
| 50+ | ₹35.50 | ₹1,775.00 |
| 150+ | ₹31.50 | ₹4,725.00 |
| 500+ | ₹26.53 | ₹13,265.00 |
| 2,500+ | ₹24.21 | ₹60,525.00 |
| 5,000+ | ₹22.87 | ₹1,14,350.00 |
5 × ₹44.80
₹224.00
excl. GST
₹264.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC86PW,118
₹224.00 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV
- Propagation Delay
- 20ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V~2V;4.4V~4.5V;5.9V~6V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.24 g
Overview
The 74HC86; 74HCT86 is a quad 2-input EXCLUSIVE-OR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- Logic circuit design
- Digital signal processing
- Electronic device interfaces
- Communication systems
- Computer hardware
- Test equipment
- Control systems
- Automation equipment
- Consumer electronics
- Medical devices
- Industrial control
- Instrumentation
- Sensor interfaces
- Data transmission
- Signal conversion
- Power management
- Low-power applications
- Embedded systems
- Microcontroller peripheral circuits
- Education and experimentation
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards:
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- Input levels:
- For 74HC86: CMOS level
- For 74HCT86: TTL level
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
