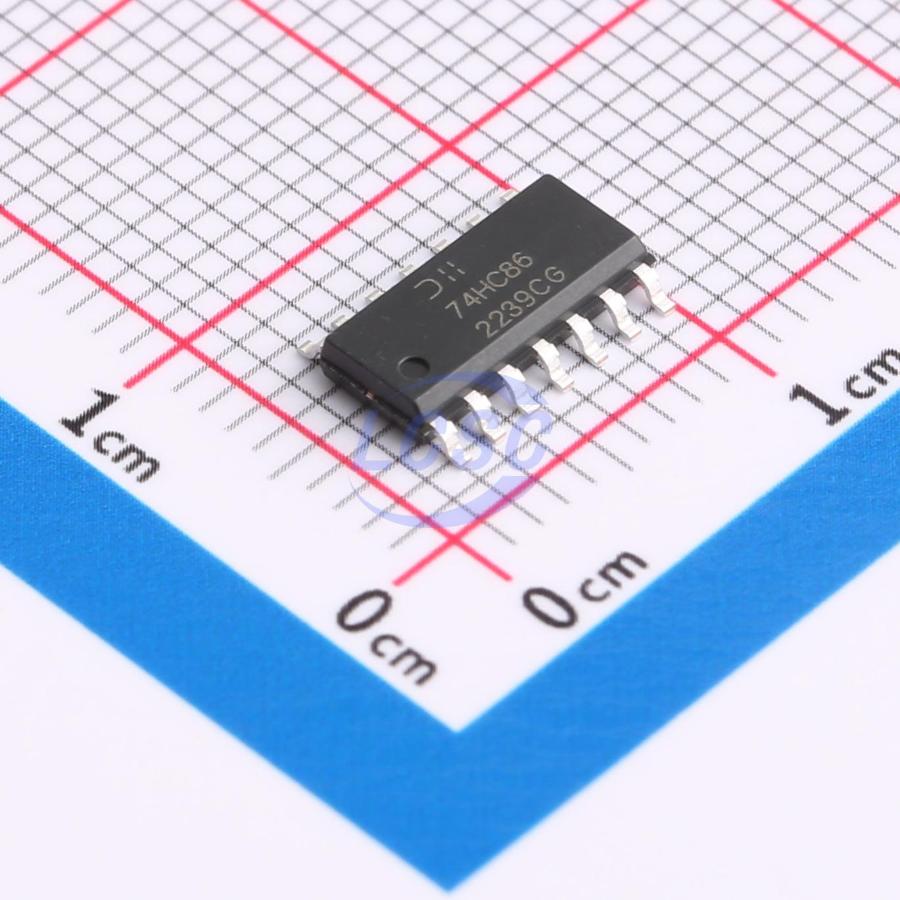

QUADRUPLE 2-INPUT EXCULSIVE OR GATES
- Manufacturer
- DIODES
- Manufacturer part #
- 74HC86S14-13
- Store part #
- C842427
- Package / case
- SO-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,100 in stock
#C842427
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.83 | ₹114.15 |
| 50+ | ₹18.15 | ₹907.50 |
| 150+ | ₹16.14 | ₹2,421.00 |
| 500+ | ₹13.64 | ₹6,820.00 |
| 2,500+ | ₹12.52 | ₹31,300.00 |
| 5,000+ | ₹11.85 | ₹59,250.00 |
5 × ₹22.83
₹114.15
excl. GST
₹134.70 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC86S14-13
₹114.15 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- output type
- Push-pull
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;330mV
- Propagation Delay
- 15ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V;3.84V;5.34V
- Quiescent Current(Iq)
- 20uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.365 g
Overview
The 74HC86 provides provides four independent 2-input Exclusive OR gates with standard push-pull outputs. The device is designed for operation with a power supply range of 2.0V to 6.0V. The gates perform the Boolean function: Y = A ⊕ B or Y = A(overline)B + AB(overline)
Applications
- General Purpose Logic
- Wide array of products such as:
- PCs, Networking, Notebooks, Netbooks
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set Top Box
Key features
- Wide Supply Voltage Range from 2.0V to 6.0V
- Sinks or sources 4mA at VCC = 4.5V
- CMOS low power consumption
- Schmitt Trigger Action at All Inputs
- ESD Protection Exceeds JESD 22 200-V Machine Model (A115-A) 2000-V Human Body Model (A114-A) Exceeds 1000-V Charged Device Model (C101C) Range of Package Options SO-14 and TSSOP-14
- Totally Lead-Free & Fully RoHS Compliant Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC86IDRG4Q1#C2868371TI · SOIC-14 | TI | SOIC-14 | 9 | ₹121.57 · 9 in stock | View |
 | 74HC86D#C5916063TOSHIBA · SOP-14 | TOSHIBA | SOP-14 | 164 | ₹85.65 · 164 in stock | View |
 | MC74HC86ADR2G#C152540onsemi · SOIC-14 | onsemi | SOIC-14 | 4,035 | ₹35.99 · 4,035 in stock | View |
 | CD74HC86M96#C2870930TI · SOIC-14 | TI | SOIC-14 | 248 | ₹65.26 · 248 in stock | View |
 | SN74HC86DR(LX)#C22436997lingxingic · SOP-14 | lingxingic | SOP-14 | 4,265 | ₹14.91 · 4,265 in stock | View |
