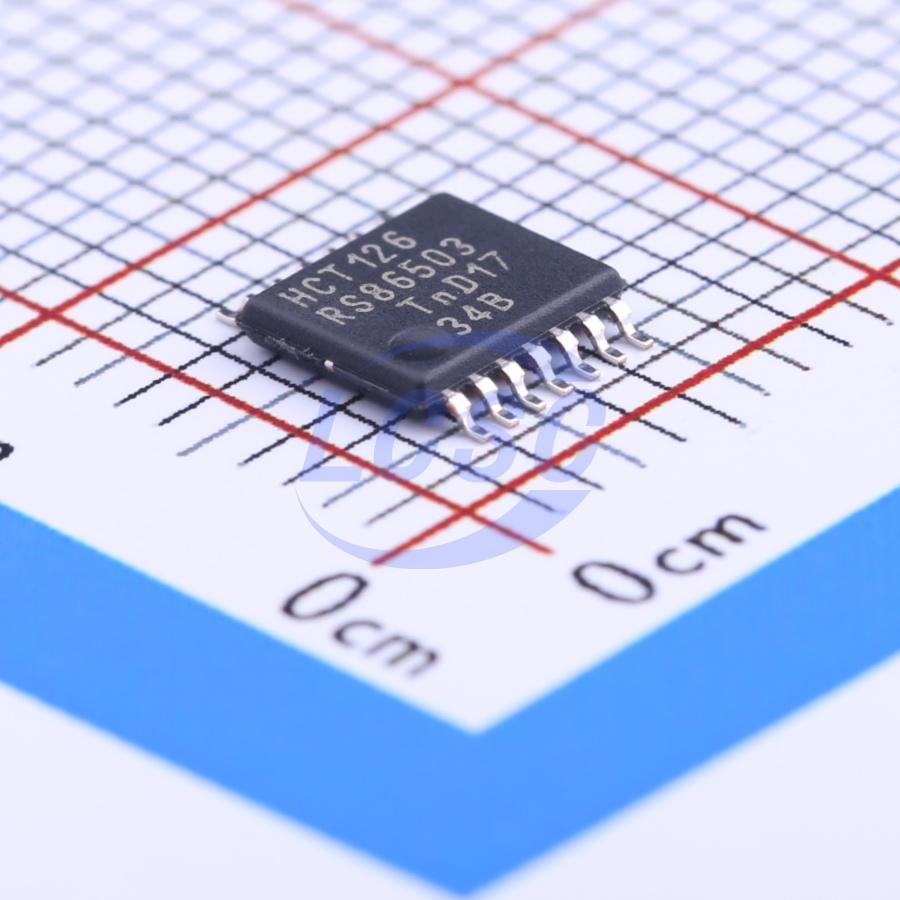

74HCT126PW,118
4.5V~5.5V 1 4 14ns@4.5V,50pF TSSOP-14 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-14ROHS3 CompliantActive
Quad buffer/line driver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HCT126PW,118
- Store part #
- C8134
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,125 in stock
#C8134
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.07 | ₹160.35 |
| 50+ | ₹25.53 | ₹1,276.50 |
| 150+ | ₹22.73 | ₹3,409.50 |
| 500+ | ₹19.24 | ₹9,620.00 |
| 2,500+ | ₹15.33 | ₹38,325.00 |
| 5,000+ | ₹14.41 | ₹72,050.00 |
5 × ₹32.07
₹160.35
excl. GST
₹189.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HCT126PW,118
₹160.35 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 6mA
- Voltage - Supply
- 4.5V~5.5V
- Series
- 74HCT
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 6mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 4
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 160uA
- Propagation Delay
- 14ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.161 g
Overview
The 74HC126; 74HCT126 is a quad buffer/line driver with 3 - state outputs controlled by the output enable inputs (nOE). A LOW on nOE causes the outputs to assume a high - impedance OFF - state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch - up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards:
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- Input levels:
- For 74HC126: CMOS levels
- For 74HCT126: TTL levels
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS - 001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS - 002 class C3 exceeds 1000 V
- Specified from - 40 °C to + 85 °C and from - 40 °C to + 125 °C
