Nexperia

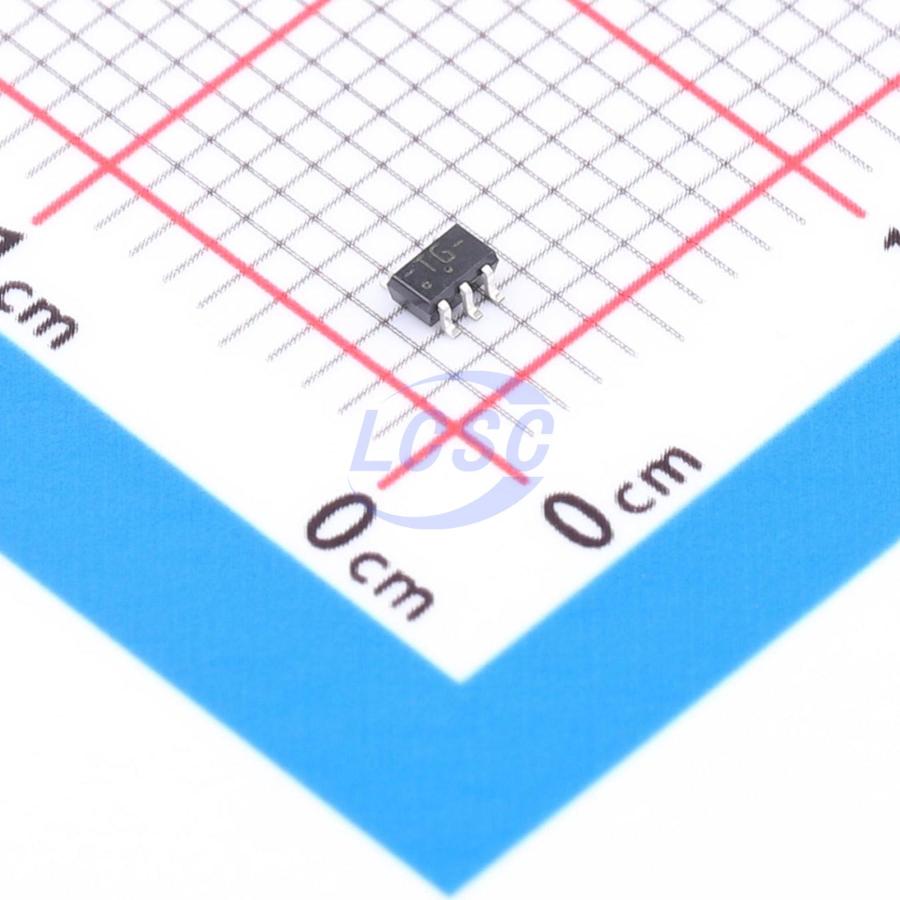

74HCT1G32GW-Q100H

TTL-compatible CMOS 4.5V~5.5V 10ns@4.5V,50pF 20uA TSSOP-5-1.3mm Gates and Inverters RoHS

TSSOP-5-1.3mmROHS3 CompliantActive

2-input OR gate

Manufacturer: Nexperia
Manufacturer part #: 74HCT1G32GW-Q100H
Store part #: C547457
Package / case: TSSOP-5-1.3mm
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,880 in stock

#C547457

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹138.64	₹138.64
10+	₹115.18	₹1,151.80
30+	₹102.35	₹3,070.50
100+	₹87.79	₹8,779.00
500+	₹81.27	₹40,635.00
1,000+	₹78.45	₹78,450.00

Quantity (min 1)

1 × ₹138.64

₹138.64

excl. GST

₹163.60 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74HCT1G32GW-Q100H

₹138.64 for 1 + GST

Specifications

Input Type: TTL-compatible CMOS
Logic Family: 74HCT Series
Voltage - Supply: 4.5V~5.5V
Output Logic Level - Low: 100mV;330mV
Propagation Delay: 10ns@4.5V,50pF
Features: Overvoltage-tolerant input
Input Logic Level - Low: 800mV
Input Logic Level - High: 2V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 4.4V;4.13V
Quiescent Current(Iq): 20uA
Number of Channels: 1;2
Current - Output High(IOH): 2mA
Current - Output Low(IOL): 2mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.025 g

Overview

The 74HC1G32-Q100; 74HCT1G32-Q100 is a single 2-input OR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.

Applications

Automotive applications

Key features

Automotive product qualification in accordance with AEC-Q100 (Grade 1)
Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Wide supply voltage range from 2.0 V to 6.0 V
Symmetrical output impedance
High noise immunity
CMOS low power dissipation
Balanced propagation delays
Latch-up performance exceeds 100 mA per JESD78 Class II Level B
Input levels: For 74HC1G32-Q100: CMOS level For 74HCT1G32-Q100: TTL level
Complies with JEDEC standards: JESD8C (2.7 V to 3.6 V) JESD7A (2.0 V to 6.0 V)
ESD protection HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
