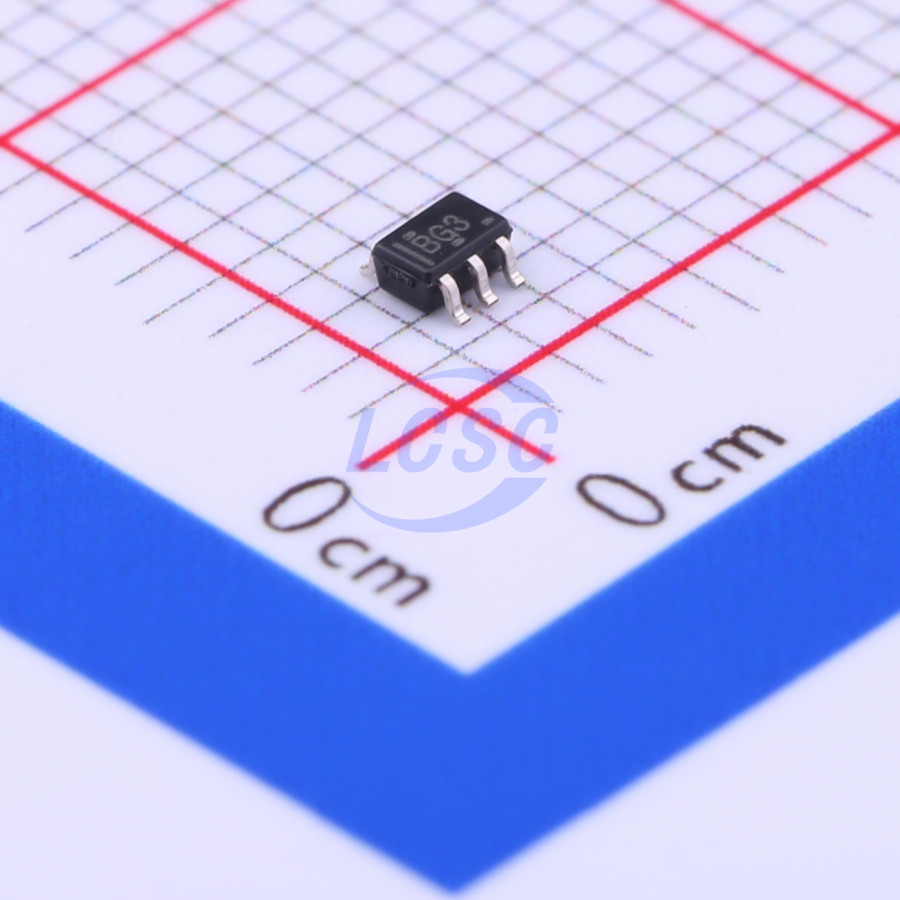

SN74AHCT1G32DCKR
TTL-compatible CMOS 4.5V~5.5V 7.9ns@5V,50pF 1uA SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS3 CompliantActive
Single 2-Input Positive-OR Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT1G32DCKR
- Store part #
- C350558
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,765 in stock
#C350558
Stock & price checked 21 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.26 | ₹61.30 |
| 50+ | ₹9.80 | ₹490.00 |
| 150+ | ₹8.57 | ₹1,285.50 |
| 500+ | ₹7.65 | ₹3,825.00 |
| 3,000+ | ₹6.91 | ₹20,730.00 |
| 6,000+ | ₹6.54 | ₹39,240.00 |
5 × ₹12.26
₹61.30
excl. GST
₹72.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHCT1G32DCKR
₹61.30 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74AHCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 7.9ns@5V,50pF
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The SN74AHCT1G32 device is a single 2 - input positive - OR gate. The device performs the Boolean function Y = A + B or Y = A(overline)·B(overline)(overline) in positive logic. The device has TTL inputs that allow up translation from 3.3 V to 5 V. The inputs are high impedance when VCC = 0 V.
Applications
- I/O Modules; Analog PLC/DCS Inputs
- Server Motherboards
- Automotive Clusters
- Motor Drives and Controls
- DLP Front Projection Systems
- TVs
- Set - top - boxes Audio
Key features
- Operating Range of 4.5 V to 5.5 V
- Max tpd of 8 ns at 5 V
- Low Power Consumption, 10 - µA Max ICC
- ±8 - mA Output Drive at 5 V
- Inputs are TTL - Voltage Compatible
- Latch - Up Performance Exceeds 250 mA
- Per JESD 17
- ESD Protection Exceeds JESD 22 2000 - V Human - Body Model 200 - V Machine Model 1000 - V Charged - Device Model
- Slow rise and fall time on outputs allow for low noise outputs
- TTL inputs Allows up translation from 3.3 V to 5 V
