MDD(Microdiode Semiconductor)Datasheet (PDF)

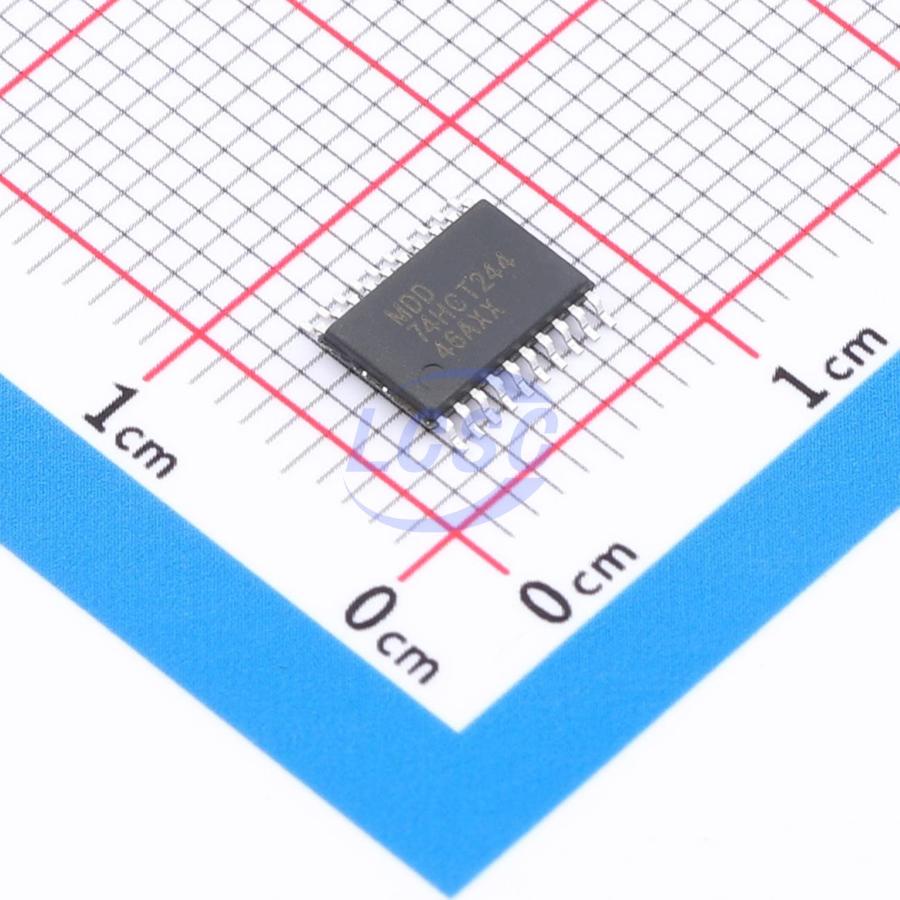

74HCT244PW
2.7V~5.5V 8 2 25ns@4.5V,50pF TSSOP-20L Buffers, Drivers, Receivers, Transceivers
TSSOP-20LRoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74HCT244PW
- Store part #
- C54411089
- Package / case
- TSSOP-20L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,970 in stock
#C54411089
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.54 | ₹137.70 |
| 50+ | ₹21.59 | ₹1,079.50 |
| 150+ | ₹19.04 | ₹2,856.00 |
| 500+ | ₹15.86 | ₹7,930.00 |
| 2,500+ | ₹14.45 | ₹36,125.00 |
| 5,000+ | ₹13.59 | ₹67,950.00 |
5 × ₹27.54
₹137.70
excl. GST
₹162.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HCT244PW
₹137.70 for 5 + GST
Specifications
- Current - Output High(IOH)
- 25mA
- Series
- 74HCT
- Voltage - Supply
- 2.7V~5.5V
- Current - Output Low(IOL)
- 25mA
- Output Type
- Tri-State
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 25ns@4.5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.284 g
Overview
The 74HC244 and 74HCT244 are 8-bit buffers/line drivers with 3-state outputs. The device can be used as two 4-bit buffers or one 8-bit buffer. The device features two output enable inputs (1OE and 2OE), each controlling four 3-state outputs. When nOE is HIGH, the outputs are in a high-impedance off-state. Inputs include clamp diodes, allowing inputs to be connected to voltages exceeding VCC using current-limiting resistors.
Key features
- Wide supply voltage range: 2.0 V ~ 6.0 V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 250 mA
- Octal bus interface
- Non-inverting tri-state outputs
- JEDEC compliant:
- JESD8C (2.7 V ~ 3.6 V)
- JESD7A (2.0 V ~ 6.0 V)
- Input levels:
- 74HC244: CMOS level
- 74HCT244: TTL level
- ESD protection:
- HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 6000 V
- CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
