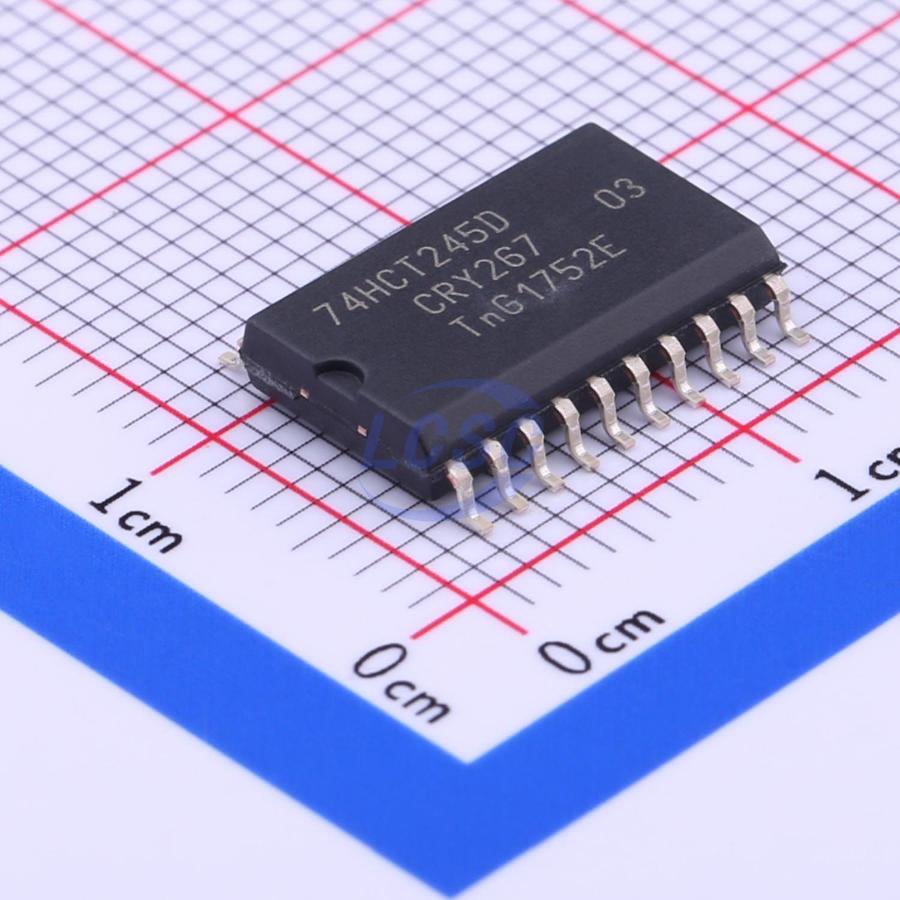

74HCT245D,653
4.5V~5.5V 8 1 12ns@4.5V,50pF SOIC-20-300mil Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-20-300milROHS3 CompliantActive
Octal bus transceiver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HCT245D,653
- Store part #
- C5979
- Package / case
- SOIC-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,172 in stock
#C5979
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹56.93 | ₹56.93 |
| 10+ | ₹45.42 | ₹454.20 |
| 30+ | ₹40.42 | ₹1,212.60 |
| 100+ | ₹34.33 | ₹3,433.00 |
| 500+ | ₹31.51 | ₹15,755.00 |
| 1,000+ | ₹29.99 | ₹29,990.00 |
1 × ₹56.93
₹56.93
excl. GST
₹67.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
74HCT245D,653
₹56.93 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 6mA
- Voltage - Supply
- 4.5V~5.5V
- Series
- 74HCT
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 6mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 160uA
- Propagation Delay
- 12ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.835 g
Overview
The 74HC245; 74HCT245 is an 8-bit transceiver with 3-state outputs. The device features an output enable (OE) and send/receive (DIR) for direction control. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- 8-channel bidirectional bus interface
Key features
- Wide supply voltage range from 2.0 to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Octal bidirectional bus interface
- Non-inverting 3-state outputs
- Input levels: For 74HC245: CMOS level For 74HCT245: TTL level
- Complies with JEDEC standards
- JESD8C (2.7 V to 3.6 V) JESD7A (2.0V to 6.0 V)
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- ESD protection:
- HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HCT245D#C2675539TOSHIBA · SOIC-20-300mil | TOSHIBA | SOIC-20-300mil | 41 | ₹69.33 · 41 in stock | View |
 | MC74HCT245ADWR2G#C7582onsemi · SOIC-20-300mil | onsemi | SOIC-20-300mil | 3,467 | ₹84.54 · 3,467 in stock | View |
 | SN74HCT245DWR#C132267TI · SOIC-20-300mil | TI | SOIC-20-300mil | 2,802 | ₹89.91 · 2,802 in stock | View |
| MC74HCT245ADWG#C906725onsemi · SOIC-20-300mil | onsemi | SOIC-20-300mil | 1 | ₹85.28 · 1 in stock | View | |
 | CD74ACT245M#C2861832TI · SOIC-20-300mil | TI | SOIC-20-300mil | 33 | ₹202.50 · 33 in stock | View |
