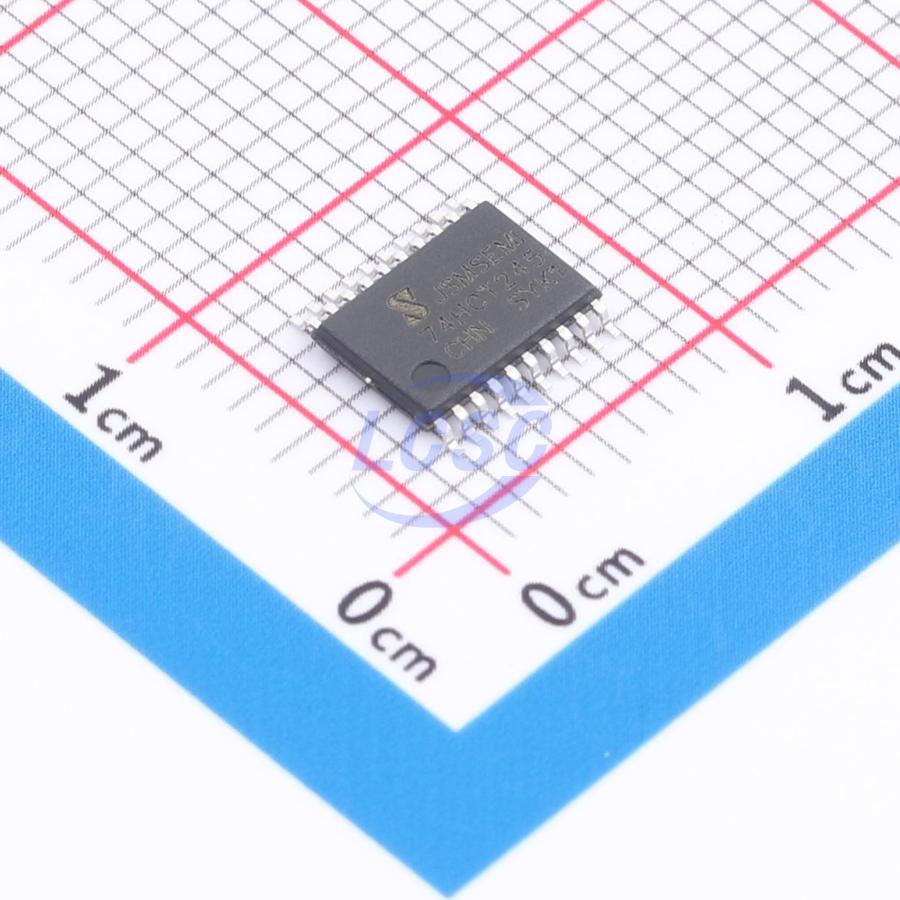

74HCT245PW,118-JSM
4.5V~5.5V 8 1 10ns@5V,15pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74HCT245PW,118-JSM
- Store part #
- C53114388
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,410 in stock
#C53114388
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.98 | ₹109.90 |
| 50+ | ₹17.38 | ₹869.00 |
| 150+ | ₹15.41 | ₹2,311.50 |
| 500+ | ₹12.97 | ₹6,485.00 |
| 2,500+ | ₹11.87 | ₹29,675.00 |
| 4,000+ | ₹11.22 | ₹44,880.00 |
5 × ₹21.98
₹109.90
excl. GST
₹129.68 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
74HCT245PW,118-JSM
₹109.90 for 5 + GST
Specifications
- Function
- Output enable
- Voltage - Supply
- 4.5V~5.5V
- Series
- 74HCT
- Output Type
- Tri-State
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 8uA
- Propagation Delay
- 10ns@5V,15pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.179 g
Overview
The 74HC/HCT245 is an 8-bit bus transceiver circuit with 3-state control. It features an output enable port OE and a direction select port DIR for controlling transmit/receive operation. When OE is HIGH, the outputs are disabled in a high-impedance state. The inputs include built-in clamp diodes, allowing the input interface to be connected to voltages exceeding Vcc through current-limiting resistors.
Key features
- Input levels: CMOS for 74HC245, TTL for 74HCT245
- 8-bit bidirectional bus interface
- Non-inverting tri-state outputs
- Operating temperature range: -40°C ~ +125°C
- Package types: DIP20, SOP20, TSSOP20, DHVQFN20, QFN20
