MDD(Microdiode Semiconductor)Datasheet (PDF)

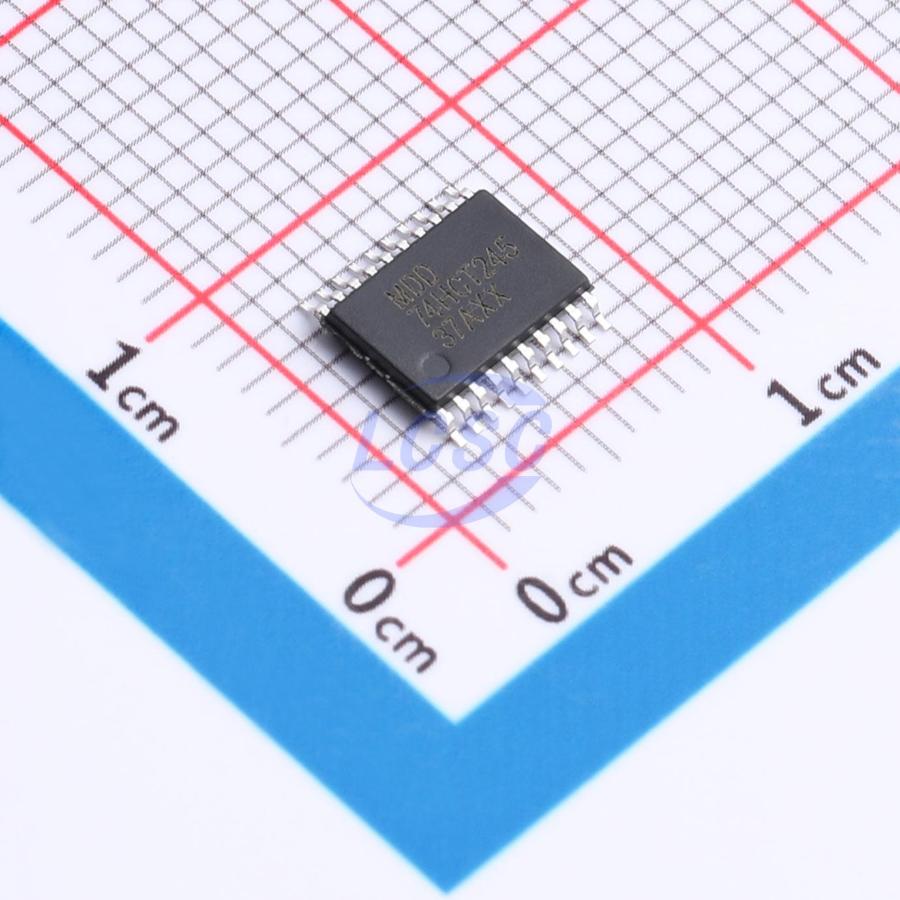

74HCT245PW
2.7V~5.5V 8 1 TSSOP-20L Buffers, Drivers, Receivers, Transceivers
TSSOP-20LRoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74HCT245PW
- Store part #
- C52140501
- Package / case
- TSSOP-20L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,821 in stock
#C52140501
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹28.83 | ₹28.83 |
| 10+ | ₹23.09 | ₹230.90 |
| 30+ | ₹20.63 | ₹618.90 |
| 100+ | ₹17.56 | ₹1,756.00 |
| 500+ | ₹16.19 | ₹8,095.00 |
| 1,000+ | ₹13.10 | ₹13,100.00 |
1 × ₹28.83
₹28.83
excl. GST
₹34.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HCT245PW
₹28.83 for 1 + GST
Specifications
- Function
- Output enable
- Series
- 74HCT
- Voltage - Supply
- 2.7V~5.5V
- Output Type
- Tri-State
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 40uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.284 g
Overview
74HC245 and 74HCT245 are 8-bit transceivers with 3-state outputs. The devices feature an output enable (OE) pin and a transmit/receive (DIR) pin for direction control. When the OE pin is HIGH, the outputs are placed in a high-impedance off-state. Input clamping diodes are included, enabling the use of current-limiting resistors to interface inputs to voltages higher than VCC.
Key features
- Wide supply voltage range: 2.0 V ~ 6.0 V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 250 mA
- Octal bidirectional bus interface
- Non-inverting tri-state outputs
- JEDEC compliant: JESD8C (2.7 V ~ 3.6 V) and JESD7A (2.0 V ~ 6.0 V)
- Input levels: CMOS for 74HC245, TTL for 74HCT245
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 6000 V, CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000 V
- Multiple package options
