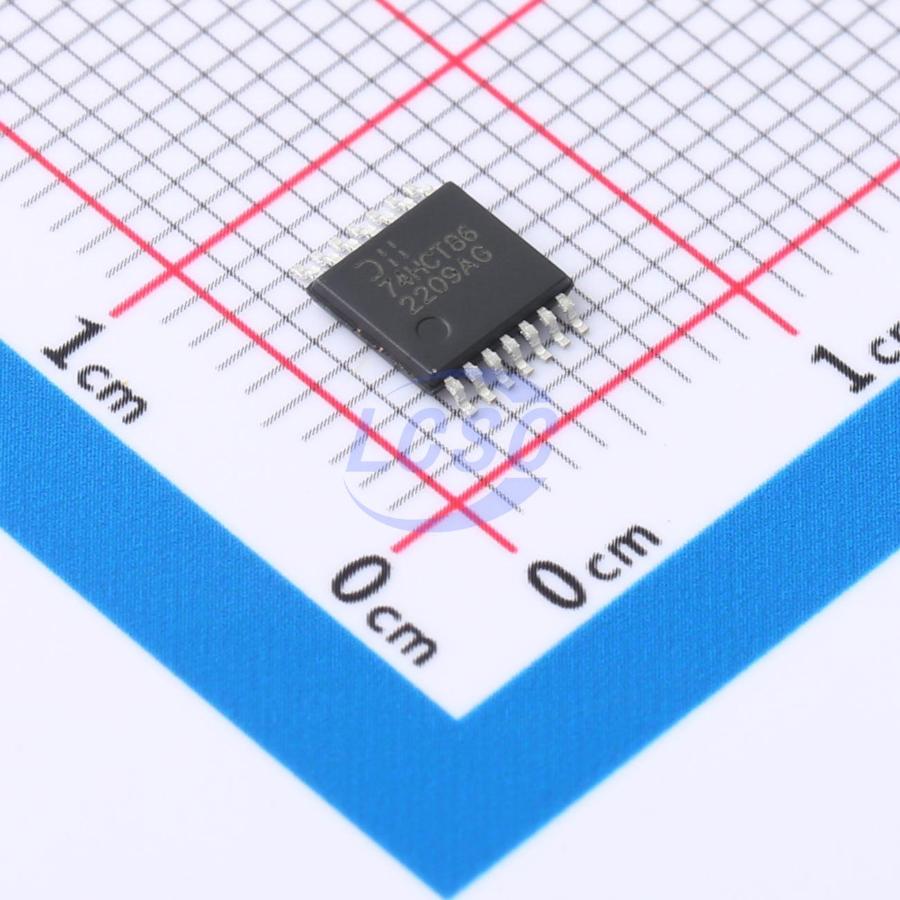

QUADRUPLE 2-INPUT EXCULSIVE OR GATES
- Manufacturer
- DIODES
- Manufacturer part #
- 74HCT86T14-13
- Store part #
- C842458
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,040 in stock
#C842458
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.27 | ₹116.35 |
| 50+ | ₹18.50 | ₹925.00 |
| 150+ | ₹16.44 | ₹2,466.00 |
| 500+ | ₹13.89 | ₹6,945.00 |
| 2,500+ | ₹12.75 | ₹31,875.00 |
| 5,000+ | ₹12.08 | ₹60,400.00 |
5 × ₹23.27
₹116.35
excl. GST
₹137.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HCT86T14-13
₹116.35 for 5 + GST
Specifications
- Input Type
- Schmitt trigger;TTL-compatible CMOS
- output type
- Push-pull
- Logic Family
- 74HCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 100mV;330mV
- Propagation Delay
- 32ns@4.5V,50pF
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 4.4V;3.84V
- Quiescent Current(Iq)
- 20uA
- Current - Output High(IOH)
- 4mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 4mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.124 g
Overview
The 74HCT86 provides provides four independent 2-input exclusive OR gates with standard push-pull outputs. The device is designed for operation with a power supply range of 4.5V to 5.5V. The gates perform the Boolean function: Y = A ⊕ B or Y = A(overline)B + AB(overline)
Applications
- General Purpose Logic Wide array of products such as: PCs, networking, notebooks, netbooks
- Computer peripherals, hard drives, CD/DVD ROM
- TV, DVD, DVR, set top box
Key features
- Wide Supply Voltage Range from 4.5V to 5.5V
- Pin Compatible with Low Power Schottky (LSTTL)
- Inputs Are TTL Voltage Level Compatible
- Sinks or Sources 4mA at VCC = 4.5V
- CMOS Low Power Consumption
- Schmitt Trigger Action at All Inputs
- ESD Protection Exceeds JESD 22 200-V Machine Model (A115-A) 2000-V Human Body Model (A114-A) Exceeds 1000-V Charged Device Model (C101C)
- Range of Package Options SO-14 and TSSOP-14
- Totally Lead-Free & Fully RoHS Compliant Halogen and Antimony Free. “Green” Device
