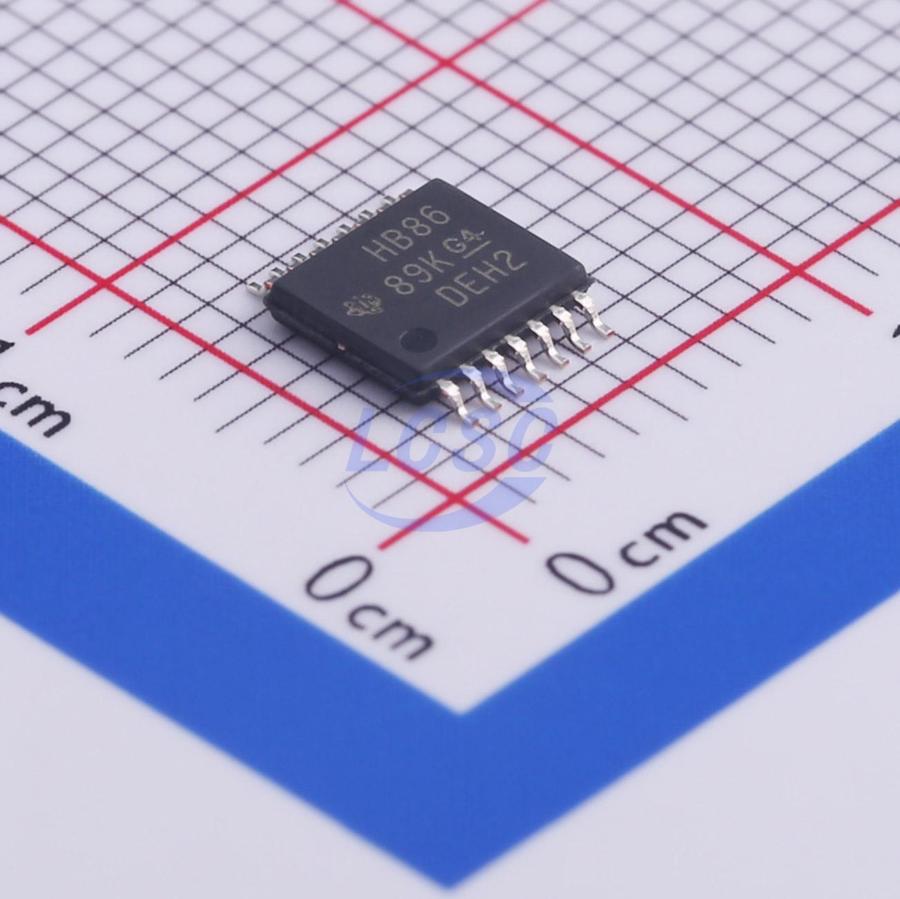

SN74AHCT86PWR
TTL-compatible CMOS 4.5V~5.5V 8.8ns@5V,50pF 2uA TSSOP-14 Gates and Inverters RoHS
TSSOP-14ROHS3 CompliantActive
Quadruple 2-Input Exclusive-OR Gates
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT86PWR
- Store part #
- C471866
- Package / case
- TSSOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,550 in stock
#C471866
Stock & price checked 33 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.21 | ₹191.05 |
| 50+ | ₹29.99 | ₹1,499.50 |
| 150+ | ₹25.98 | ₹3,897.00 |
| 500+ | ₹22.41 | ₹11,205.00 |
| 2,000+ | ₹21.42 | ₹42,840.00 |
| 4,000+ | ₹20.84 | ₹83,360.00 |
5 × ₹38.21
₹191.05
excl. GST
₹225.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74AHCT86PWR
₹191.05 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74AHCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 440mV
- Propagation Delay
- 8.8ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 3.8V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.095 g
Overview
The SNx4AHCT86 devices are quadruple 2-input exclusive-OR gates. These devices perform the Boolean function Y = AxB or Y = A(overline)B + AB(overline) in positive logic.
Applications
- Server
- PCs and Notebooks
- Network Switches
- Wearable Health and Fitness Devices
- Telecom Infrastructures Electronic Points of Sale
Key features
- Inputs are TTL-Voltage Compatible
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHCT86PW,118#C554719Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | 1 | ₹123.28 · 1 in stock | View |
 | SN74ACT86PWR#C2870536TI · TSSOP-14 | TI | TSSOP-14 | 68 | ₹83.43 · 68 in stock | View |
 | CJ74HCT86BDN#C52145485JSCJ · TSSOP-14 | JSCJ | TSSOP-14 | 20 | ₹13.92 · 20 in stock | View |
 | 74HCT86T14-13#C842458DIODES · TSSOP-14 | DIODES | TSSOP-14 | 2,040 | ₹23.27 · 2,040 in stock | View |
| 74AHCT86PW-Q100J#C554720Nexperia · TSSOP-14 | Nexperia | TSSOP-14 | On request | ₹18.73 · 0 in stock | View | |
