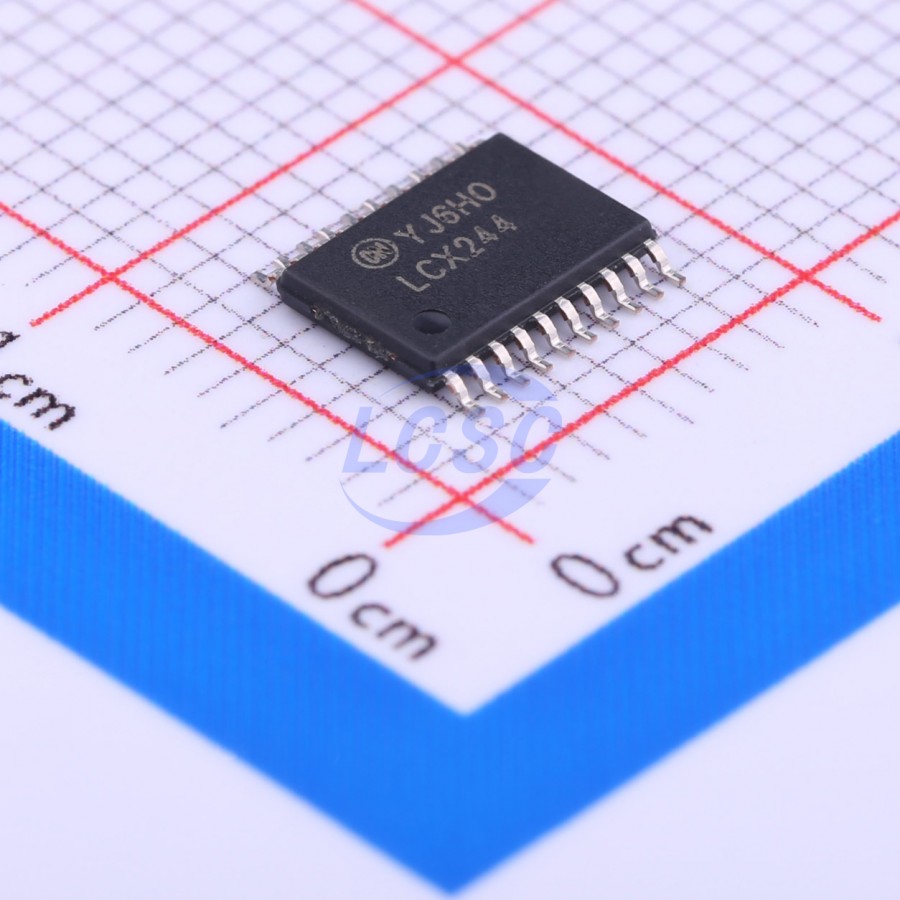

74LCX244MTCX
2V~3.6V 4 2 6.5ns@3.3V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS3 CompliantActive
Low Voltage Buffer/Line Driver with 5V Tolerant Inputs and Outputs
- Manufacturer
- onsemi
- Manufacturer part #
- 74LCX244MTCX
- Store part #
- C255589
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,161 in stock
#C255589
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.74 | ₹62.74 |
| 10+ | ₹47.54 | ₹475.40 |
| 30+ | ₹41.03 | ₹1,230.90 |
| 100+ | ₹33.00 | ₹3,300.00 |
| 500+ | ₹29.30 | ₹14,650.00 |
| 1,000+ | ₹27.13 | ₹27,130.00 |
1 × ₹62.74
₹62.74
excl. GST
₹74.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74LCX244MTCX
₹62.74 for 1 + GST
Specifications
- Voltage - Supply
- 2V~3.6V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Hot-swap support;Output enable
- Current - Output High(IOH)
- 24mA
- Series
- 74LCX
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Propagation Delay
- 6.5ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
The LCX244 contains eight non-inverting buffers with 3-STATE outputs. The device may be employed as a memory address driver, clock driver and bus-oriented transmitter/receiver. The LCX244 is designed for low voltage (2.5V or 3.3V) VCC applications with capability of interfacing to a 5V signal environment. The LCX244 is fabricated with an advanced CMOS technology to achieve high speed operation while maintaining CMOS low power dissipation.
Key features
- 5V tolerant inputs and outputs
- 2.3V to 3.6V VCC specifications provided
- 6.5ns tPD max. (VCC = 3.3V), 10μA ICC max.
- Power down high impedance inputs and outputs
- Supports live insertion/withdrawal
- ±24mA output drive (VCC = 3.0V)
- Implements proprietary noise/EMI reduction circuitry
- Latch-up performance exceeds 500mA
- ESD performance:
- Human body model >2000V
- Machine model >200V
- Leadless DQFN package
