74LCX245MTCX
2V~3.6V 8 1 7ns@3.3V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS3 CompliantActive

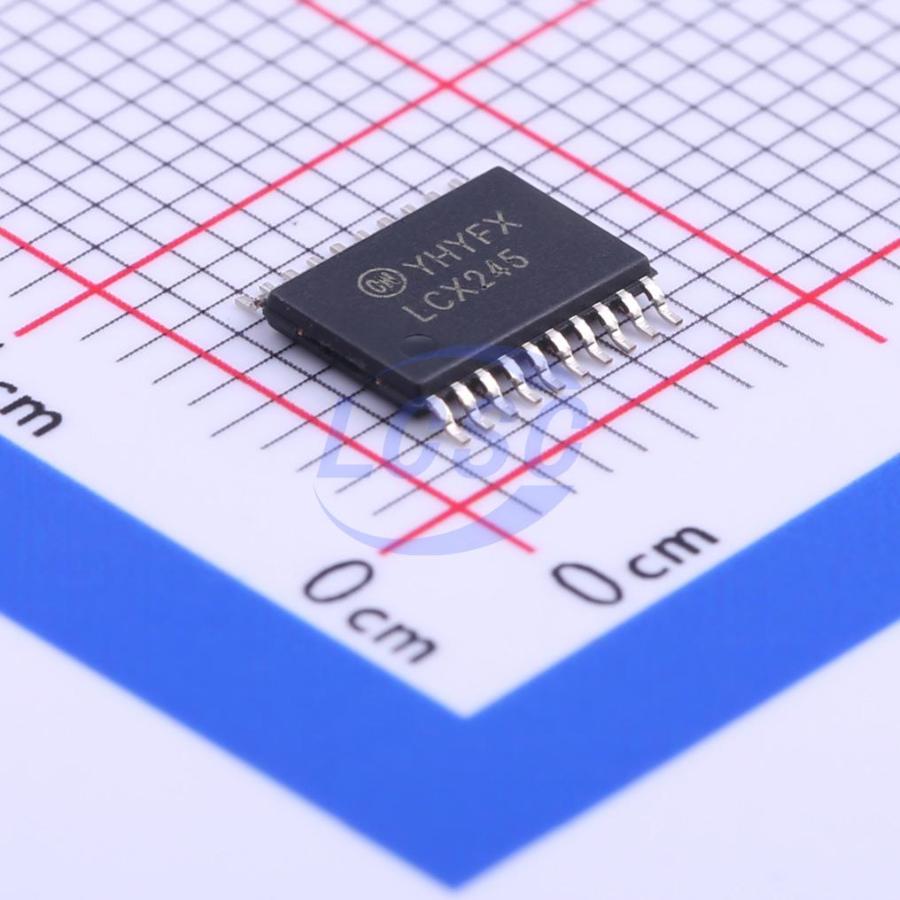

Low Voltage Bidirectional Transceiver with 5V Tolerant Inputs and Outputs
- Manufacturer
- onsemi
- Manufacturer part #
- 74LCX245MTCX
- Store part #
- C6020
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,925 in stock
#C6020
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹122.03 | ₹122.03 |
| 10+ | ₹98.76 | ₹987.60 |
| 30+ | ₹87.24 | ₹2,617.20 |
| 100+ | ₹75.70 | ₹7,570.00 |
| 500+ | ₹60.70 | ₹30,350.00 |
| 1,000+ | ₹57.22 | ₹57,220.00 |
1 × ₹122.03
₹122.03
excl. GST
₹144.00 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74LCX245MTCX
₹122.03 for 1 + GST
Specifications
- Voltage - Supply
- 2V~3.6V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Output enable;Hot-swap support
- Current - Output High(IOH)
- 24mA
- Series
- 74LCX
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Propagation Delay
- 7ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
The LCX245 contains eight non-inverting bidirectional buffers with 3-STATE outputs and is intended for bus oriented applications. The device is designed for low voltage (2.5V and 3.3V) VCC applications with capability of interfacing to a 5V signal environment. The T/R(overline) input determines the direction of data flow through the device. The OE input disables both the A and B ports by placing them in a high impedance state.
Key features
- 2.3V to 3.6V VCC specifications provided
- 7.0 ns tPD max (VCC = 3.3V), 10 μA ICC max
- Power down high impedance inputs and outputs
- ±24 mA output drive (VCC = 3.0V)
- Implements patented noise/EMI reduction circuitry
- Latch-up performance exceeds 500 mA
- ESD performance:
- Human body model > 2000V
- Machine model > 200V
- Leadless DQFN Pb-Free package
