TOSHIBADatasheet (PDF)

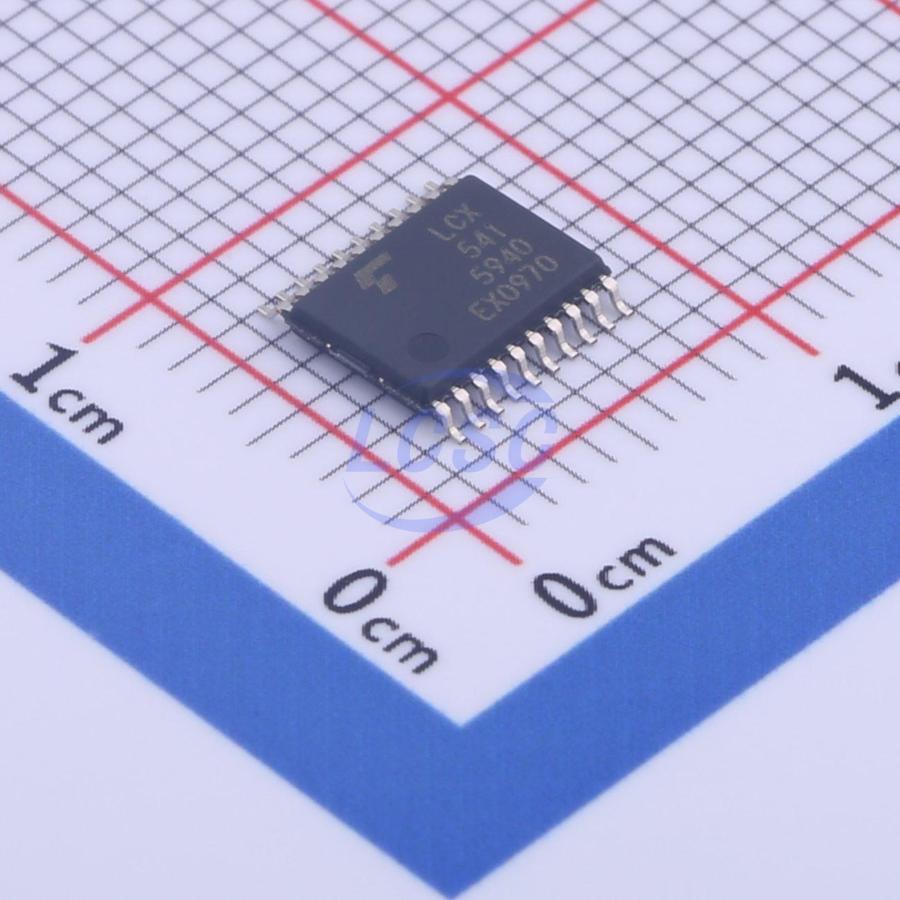

74LCX541FT(AJ)
1.65V~3.6V 8 1 6.5ns@3.3V,50pF TSSOP-20-175mil Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20-175milROHS CompliantActive
CMOS Digital Integrated Circuits, Low-Voltage Octal Bus Buffer with 5-V Tolerant Inputs and Outputs
- Manufacturer
- TOSHIBA
- Manufacturer part #
- 74LCX541FT(AJ)
- Store part #
- C516171
- Package / case
- TSSOP-20-175mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,485 in stock
#C516171
Stock & price checked 45 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.33 | ₹246.65 |
| 50+ | ₹38.43 | ₹1,921.50 |
| 150+ | ₹33.76 | ₹5,064.00 |
| 500+ | ₹27.94 | ₹13,970.00 |
| 2,500+ | ₹25.35 | ₹63,375.00 |
| 5,000+ | ₹23.79 | ₹1,18,950.00 |
5 × ₹49.33
₹246.65
excl. GST
₹291.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74LCX541FT(AJ)
₹246.65 for 5 + GST
Specifications
- Voltage - Supply
- 1.65V~3.6V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+85℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 24mA
- Series
- 74LCX
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 6.5ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.118 g
Overview
The 74LCX541FT is a high-performance CMOS octal bus buffer. Designed for use in 3.3-V systems, it achieves high-speed operation while maintaining the CMOS low power dissipation. The device is designed for low-voltage (3.3 V) VCC applications, but it could be used to interface to 5 V supply environment for both inputs and outputs. The 74LCX541FT is a non-inverting 3-state buffer having two active-low output enables. When either OE1 or OE2 are high, the terminal outputs are in the high-impedance state. This device is designed to be used with 3-state memory address drivers, etc. All inputs are equipped with protection circuits against static discha
Key features
- Low-voltage operation: VCC = 1.65 to 3.6 V
- High-speed operation: tpd = 6.5 ns (max) (VCC = 3.0 to 3.6 V)
- Output current: |ΔIOH|/IOL = 24 mA (min) (VCC = 3.0 V)
- Power-down protection provided on all inputs and outputs
- Pin and function compatible with the 74 series (74LVC/ALVC/etc.) 541 type
