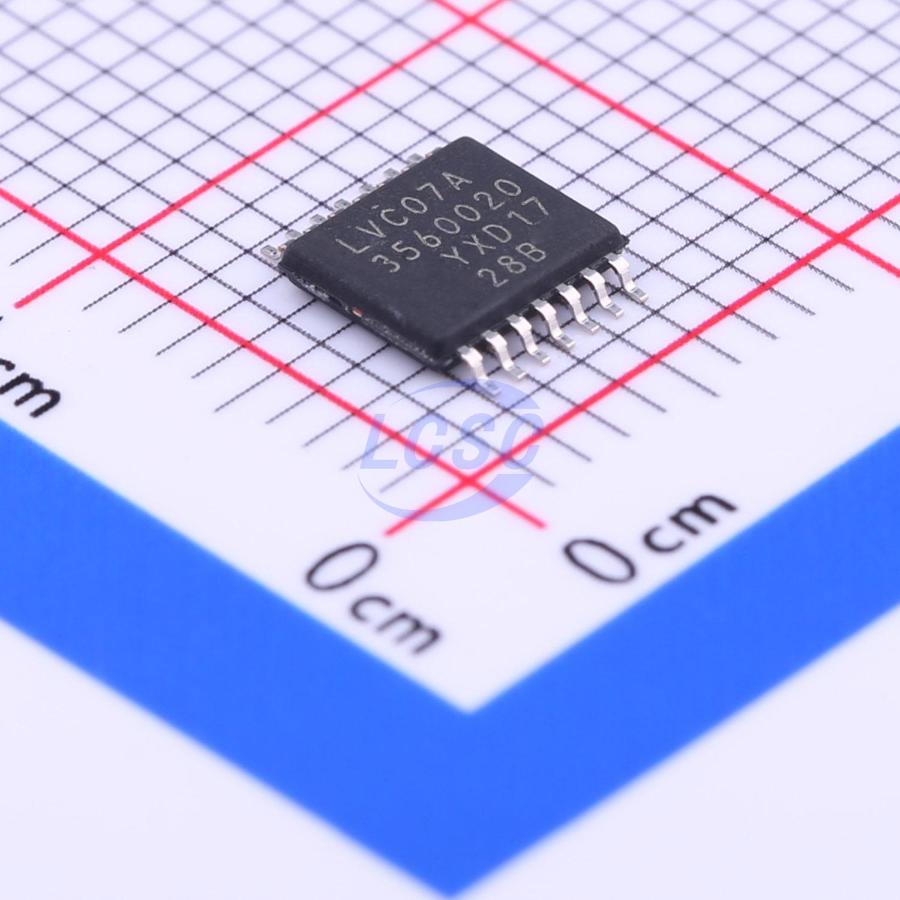

74LVC07APW,118
Schmitt trigger 1.2V~5.5V 1 6 1.6ns@5V,50pF TSSOP-14 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-14ROHS3 CompliantActive
Hex buffer with open-drain outputs
- Manufacturer
- Nexperia
- Manufacturer part #
- 74LVC07APW,118
- Store part #
- C6051
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,225 in stock
#C6051
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.11 | ₹165.55 |
| 50+ | ₹25.84 | ₹1,292.00 |
| 150+ | ₹22.72 | ₹3,408.00 |
| 500+ | ₹18.83 | ₹9,415.00 |
| 2,500+ | ₹17.09 | ₹42,725.00 |
| 5,000+ | ₹16.05 | ₹80,250.00 |
5 × ₹33.11
₹165.55
excl. GST
₹195.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74LVC07APW,118
₹165.55 for 5 + GST
Specifications
- Function
- Level shifting
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.2V~5.5V
- Series
- 74LVC
- Current - Output Low(IOL)
- 32mA
- Output Type
- Open-drain
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 6
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 1.6ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.23 g
Overview
The 74LVC07A is a hex buffer with open-drain outputs. Inputs can be driven from either 3.3 V or 5 V devices. This feature allows the use of these devices as translators in mixed 3.3 V and 5 V environments. Schmitt-trigger action at all inputs makes the circuit tolerant of slower input rise and fall times.
Key features
- 5 V tolerant inputs and outputs (open-drain) for interfacing with 5 V logic
- Wide supply voltage range from 1.2 V to 5.5 V
- CMOS low power consumption
- Direct interface with TTL levels
- Overvoltage tolerant inputs to 5.5 V
- Complies with JEDEC standard:
- JESD8-7A (1.65 V to 1.95 V)
- JESD8-5A (2.3 V to 2.7 V)
- JESD8-C/JESD36 (2.7 V to 3.6 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 ℃ to +85 ℃ and -40 ℃ to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | Aip74LVC07TA14.TR#C5139008Wuxi I-core Elec · TSSOP-14 | Wuxi I-core Elec | TSSOP-14 | On request | Price on request | Quote |
