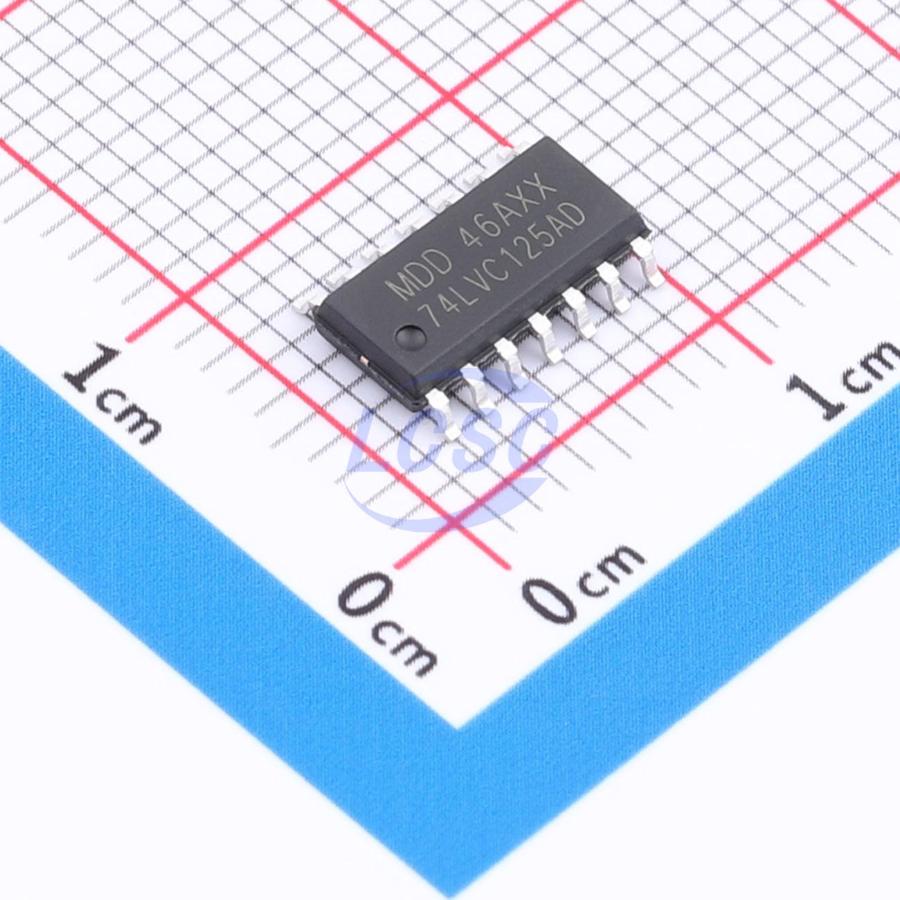

74LVC125AD
Schmitt trigger 1.65V~5.5V 4 1 2.6ns@5V,15pF SOP-14L Buffers, Drivers, Receivers, Transceivers
SOP-14LRoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74LVC125AD
- Store part #
- C53552914
- Package / case
- SOP-14L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,450 in stock
#C53552914
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.69 | ₹88.45 |
| 50+ | ₹13.94 | ₹697.00 |
| 150+ | ₹12.08 | ₹1,812.00 |
| 500+ | ₹10.66 | ₹5,330.00 |
| 2,500+ | ₹9.55 | ₹23,875.00 |
| 5,000+ | ₹8.98 | ₹44,900.00 |
5 × ₹17.69
₹88.45
excl. GST
₹104.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74LVC125AD
₹88.45 for 5 + GST
Specifications
- Input type
- Schmitt trigger
- Current - Output High(IOH)
- 50mA
- Series
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 50mA
- Number of Bits per Element
- 4
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 2.6ns@5V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.348 g
Overview
The 74LVC125A is a quad buffer/line driver with 3-state outputs controlled by output enable inputs (nOE). When nOE is HIGH, the outputs are in a high-impedance off-state. The inputs can be driven by 3.3V or 5V devices, allowing these devices to be used as translators in mixed 3.3V/5V environments. All inputs incorporate Schmitt-trigger action, enabling the circuit to tolerate slower input rise and fall times. The device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the outputs, preventing damaging reverse current flow through the device when it is powered down.
Key features
- Wide supply voltage range: 1.2V to 5.5V
- Overvoltage-tolerant inputs up to 5.5V
- CMOS low power consumption
- I<sub>OFF</sub> circuitry supports partial power-down mode operation
- Latch-up performance exceeds 250mA
- Direct TTL-level interface compatible
- Compliant with JEDEC standards:
- JESD8-7A (1.65V to 1.95V)
- JESD8-5A (2.3V to 2.7V)
- JESD8-C (2.7V to 3.6V)
- JESD36 (4.5V to 5.5V)
- ESD protection:
- HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 6000V
- CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
