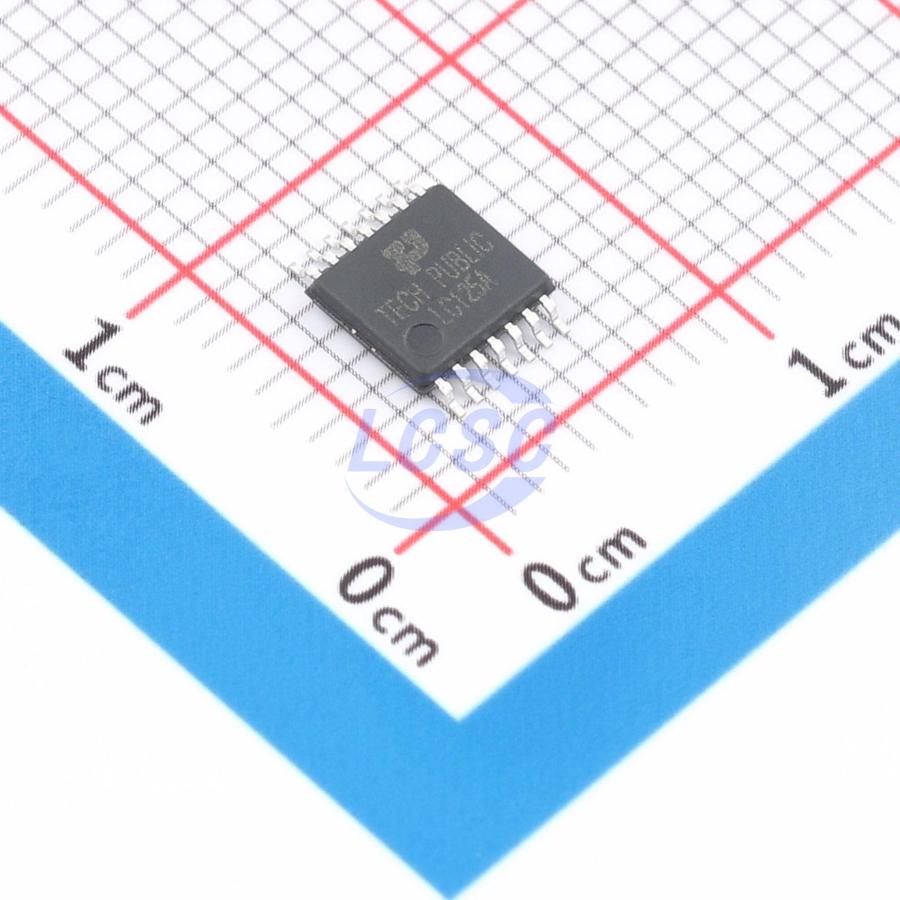

74LVC125APW-TP

Schmitt trigger 1.65V~3.6V 1 6ns@3.6V,15pF TSSOP-14 Buffers, Drivers, Receivers, Transceivers

TSSOP-14RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: 74LVC125APW-TP
Store part #: C54561845
Package / case: TSSOP-14
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,700 in stock

#C54561845

Stock & price checked 35 h ago

Quantity	Unit price	Pack price
5+	₹27.31	₹136.55
50+	₹21.35	₹1,067.50
150+	₹18.81	₹2,821.50
500+	₹15.62	₹7,810.00
2,500+	₹14.21	₹35,525.00
5,000+	₹13.35	₹66,750.00

Quantity (min 5, multiples of 5)

5 × ₹27.31

₹136.55

excl. GST

₹161.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

74LVC125APW-TP

₹136.55 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current - Output High(IOH): 50mA
Input type: Schmitt trigger
Series: 74LVC
Voltage - Supply: 1.65V~3.6V
Output Type: Tri-State
Current - Output Low(IOL): 50mA
Operating Temperature: -40℃~+125℃
Number of Elements: 1
Quiescent Supply Current: 40uA
Propagation Delay: 6ns@3.6V,15pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.098 g

Overview

This is a quad buffer/line driver with 3-state outputs controlled by an output enable input (nOE). When nOE is high, the outputs are in a high-impedance off state. The inputs can be driven by 2.7 V or 3.3 V devices. This feature allows these devices to be used as translators in mixed 2.7 V and 3.3 V environments. Schmitt-trigger action on all inputs enables the circuit to tolerate slower input rise and fall times. This device is fully specified for partial-power-down applications using IOFF.

Key features

Wide supply voltage range: 1.65 V to 3.6 V
CMOS low power consumption
Overvoltage-tolerant inputs up to 5.5 V
Latch-up performance exceeds 250 mA
Direct TTL-level interface capability
ESD protection: HBM ANSI/ESDA/JEDEC JS-003 Class A exceeds 6000 V, CDM ANSI/ESDA/JEDEC JS-002 C3 exceeds 2000 V
I<sub>OFF</sub> circuitry enables partial power-down mode operation
JEDEC standards compliant: JESD8-7 (1.65 V to 1.95 V), JESD8-5 (2.3 V to 2.7 V), JESD8C (2.7 V to 3.6 V)
Package: TSSOP-14
