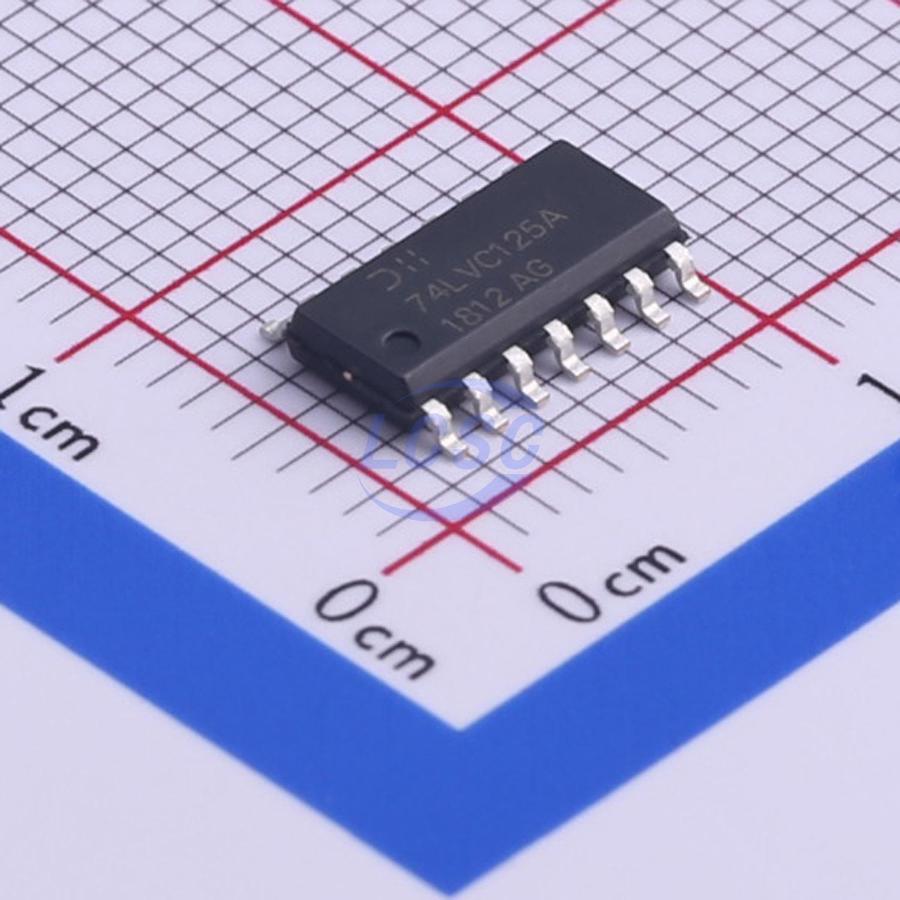

DIODES

74LVC125AS14-13

1.65V~5.5V 1 4 2.5ns@3.3V,50pF SOP-14 Buffers, Drivers, Receivers, Transceivers RoHS

SOP-14ROHS3 CompliantActive

QUADRUPLE 3-STATE BUFFERS

Manufacturer: DIODES
Manufacturer part #: 74LVC125AS14-13
Store part #: C460512
Package / case: SOP-14
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,730 in stock

#C460512

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹16.26	₹81.30
50+	₹14.31	₹715.50
150+	₹13.48	₹2,022.00
500+	₹12.44	₹6,220.00
2,500+	₹11.97	₹29,925.00
5,000+	₹11.70	₹58,500.00

Quantity (min 5, multiples of 5)

5 × ₹16.26

₹81.30

excl. GST

₹95.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

74LVC125AS14-13

₹81.30 for 5 + GST

Specifications

Voltage - Supply: 1.65V~5.5V
Output Type: Tri-State
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 40uA
Function: Output enable;Power-off isolation;Level shifting
Current - Output High(IOH): 24mA
Series: 74LVC
Current - Output Low(IOL): 24mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 4
Propagation Delay: 2.5ns@3.3V,50pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.176 g

Overview

The 74LVC125A provides four independent buffers with three state outputs. Each output is independently controlled by an associated output enable pin (OE) which places the device in the high impedance state when driven high. The device is designed for operation with a power supply range of 1.65V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed- voltage environment. The device is fully specified for partial power down applications using IoFF. The IoFF circuitry disables the output preventing damaging current backflow when the device is powered down.

Applications

Voltage level shifting
General-purpose logic
Power down signal isolation
Wide array of products such as:
PCs, networking, notebooks, ultrabooks, netbooks
Computer peripherals, hard drives, CD/DVD ROM
TV, DVD, DVR, set top boxes

Key features

Supply Voltage Range from 1.65V to 5.5V
Sinks 24mA at VCC = 3.3V
CMOS low power consumption
IoFF Supports Partial-Power-Down Mode Operation
Inputs or outputs accept up to 5.5V
Inputs can be driven by 3.3V or 5.5V allowing for voltage translation applications.
ESD Protection Exceeds JESD 22:
200-V Machine Model (A115-A)
2000-V Human Body Model (A114-A)
Exceeds 1000-V Charged Device Model (C101C)
Latch-Up Exceeds 250mA per JESD 78, Class II
Range of Package Options: SO-14 and TSSOP-14
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. "Green" Device
